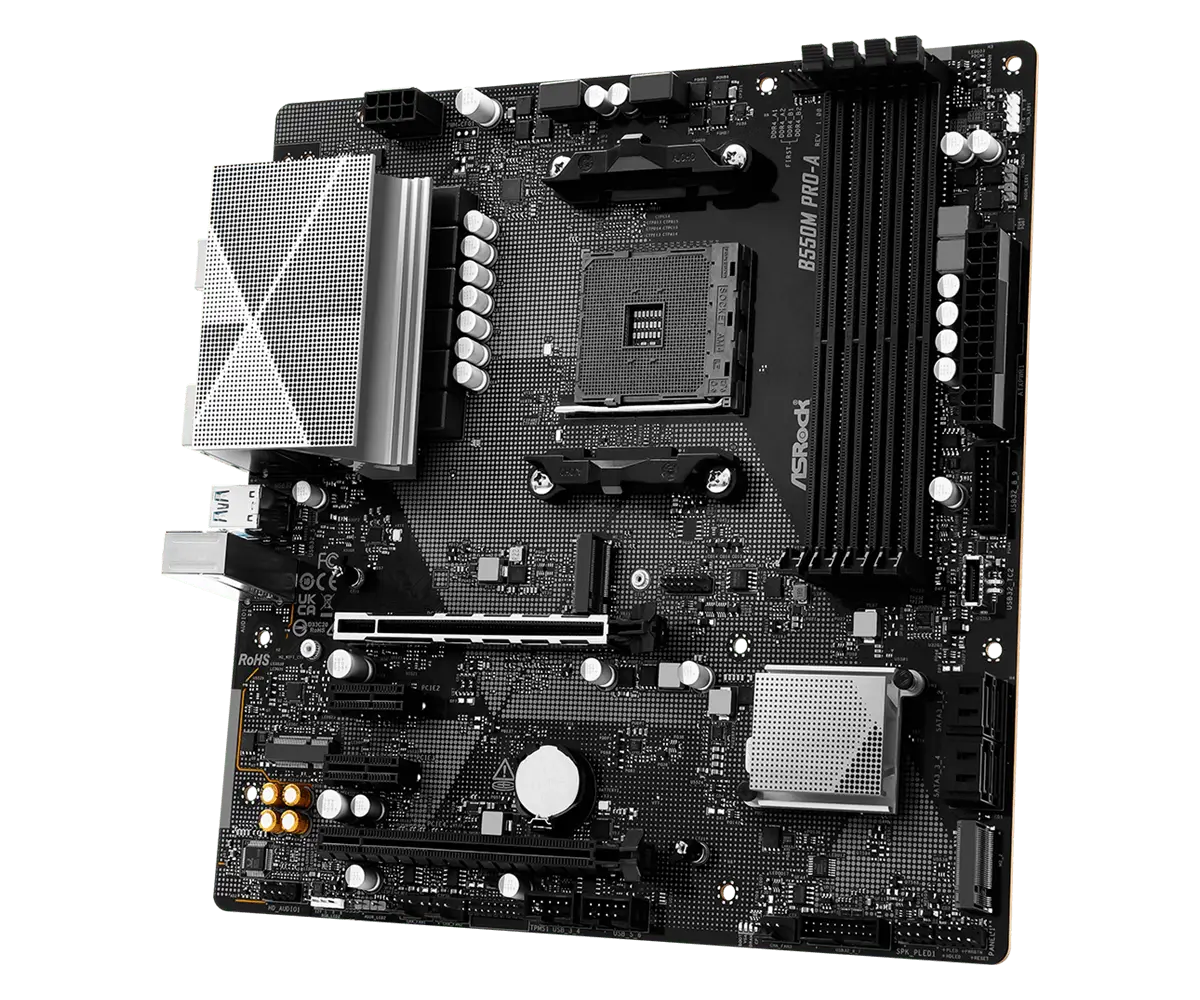

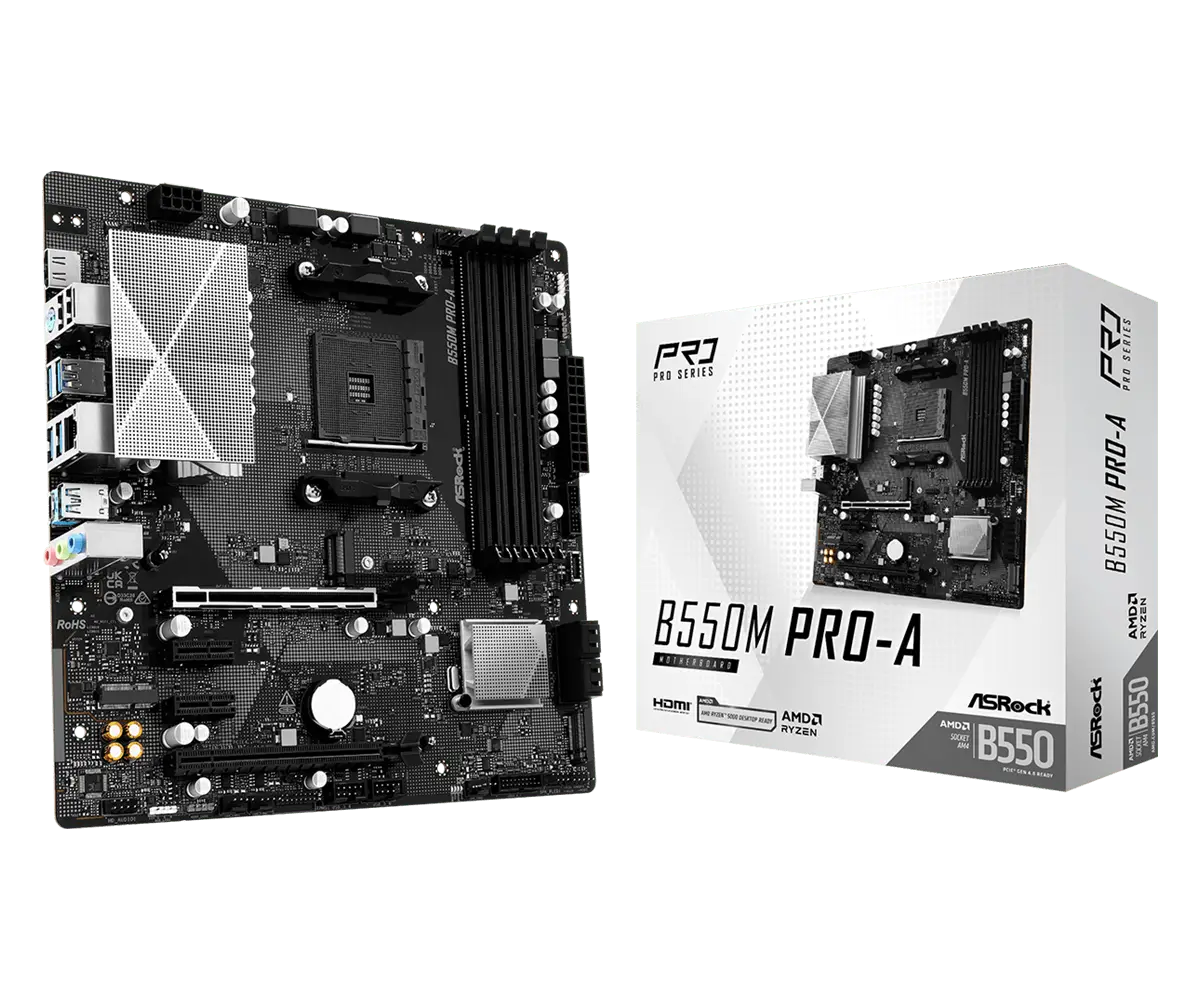

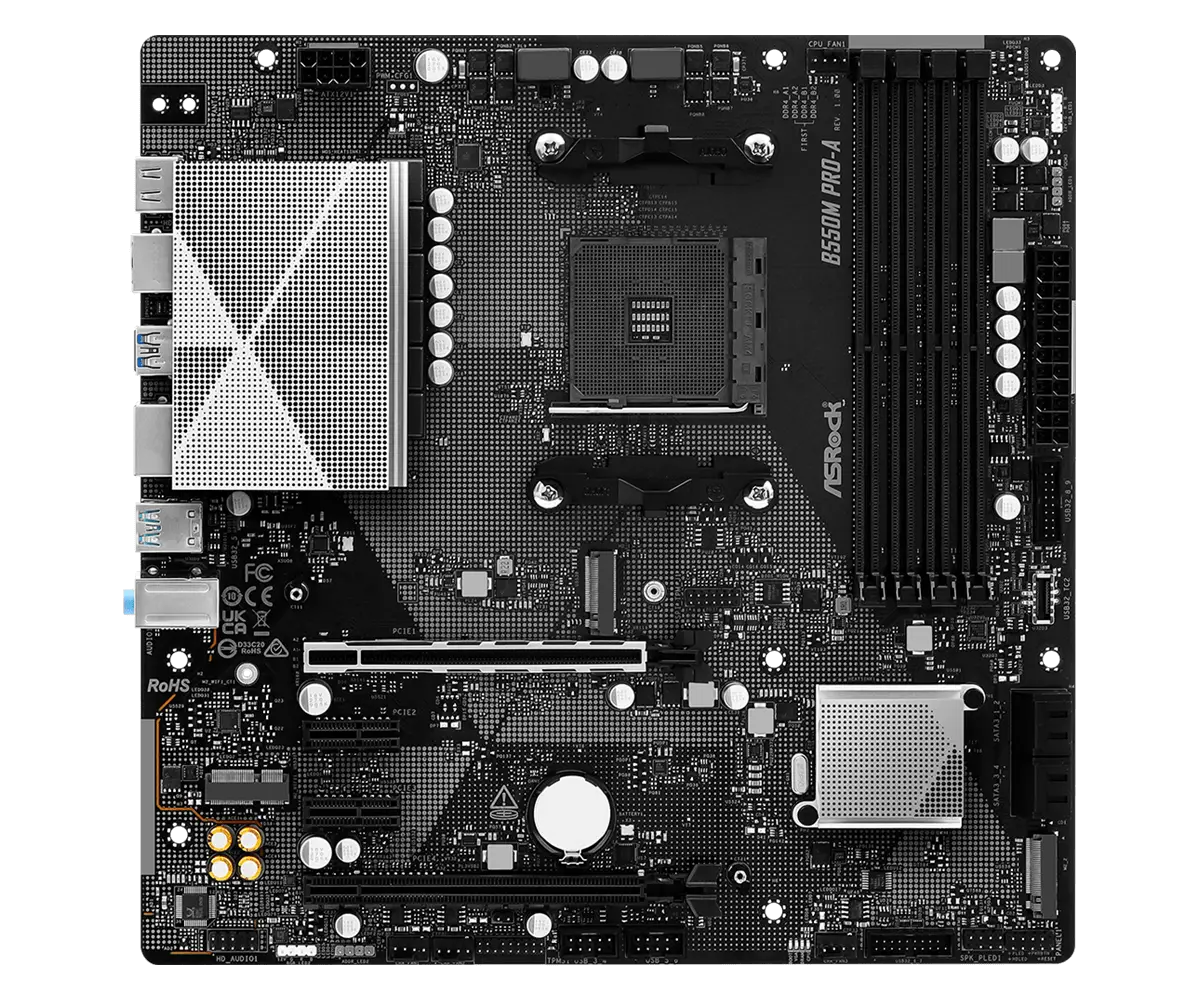

ASROCK B550M PRO-A (Socket AM4, B550, Type-C)

Garansi Resmi 3 Tahun

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Unique Feature

Rock-Solid Durability

– 8 Power Phase

EZ Troubleshooter

ASRock POST Status Checker (PSC)

CPU :

– Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Chipset :

– AMD B550

Memory :

– Dual Channel DDR4 Memory Technology

– 4 x DDR4 DIMM Slots

BIOS :

– 128Mb AMI UEFI Legal BIOS with GUI support

Graphics :

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU

– 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz

Audio :

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN :

– Gigabit LAN 10/100/1000 Mb/s

– Realtek RTL8111H

Slots :

AMD Ryzen series CPUs (Vermeer and Matisse)

– 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE4: Gen3 x4 mode)

AMD Ryzen series APUs (Cezanne and Renoir)

– 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE4: Gen3 x4 mode)

AMD Ryzen series APUs (Picasso)

– 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE4: Gen3 x4 mode)

– Supports AMD CrossFire

– 2 x PCIe 3.0 x1 Slots (PCIE2/PCIE3: x1 mode)

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage :

CPU:

– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*

Chipset:

– 1 x M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*

– 4 x SATA3 6.0 Gb/s Connectors

RAID :

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB :

CPU:

– 1 x USB 3.2 Gen1 Type-C (Front)

– 6 x USB 3.2 Gen1 Type-A (4 Rear (USB32_12 and USB32_34), 2 Front (USB32_8_9))

Chipset:

– 1 x USB 3.2 Gen1 Type-C (Rear)

– 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_5), 2 Front (USB32_6_7))

– 6 x USB 2.0 (2 Rear, 4 Front)

Connector :

– 1 x SPI TPM Header

– 1 x Power LED and Speaker Header

– 2 x RGB LED Headers

– 2 x Addressable LED Headers

– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control

– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

– 1 x 24 pin ATX Power Connector

– 1 x 8 pin 12V Power Connector

– 1 x Front Panel Audio Connector

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

– 1 x Front Panel Type C USB 3.2 Gen1 Header

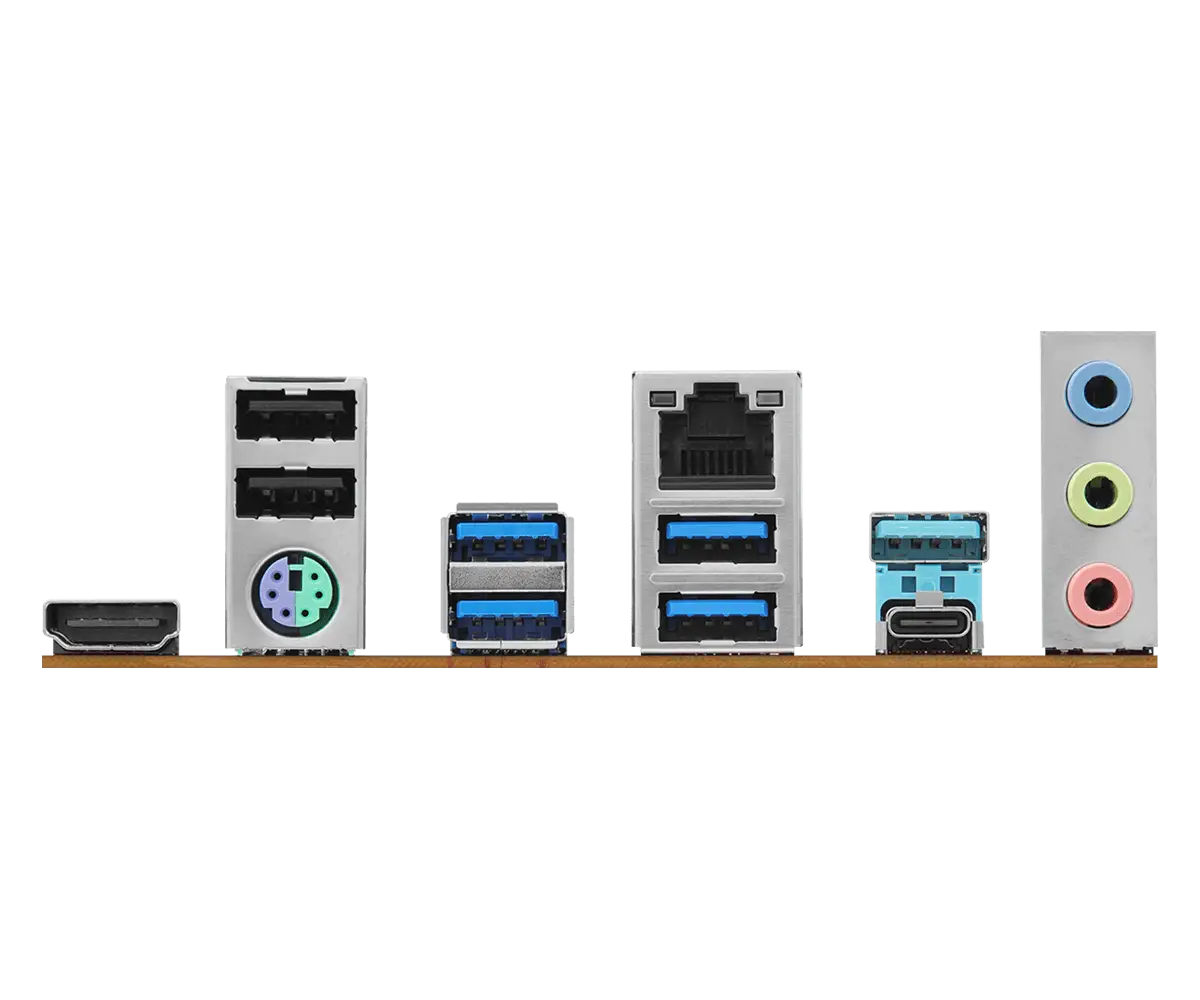

Rear Panel I/O :

– 1 x PS/2 Mouse/Keyboard Port

– 1 x HDMI Port

– 1 x USB 3.2 Gen1 Type-C Port

– 5 x USB 3.2 Gen1 Type-A Ports

– 2 x USB 2.0 Ports

– 1 x RJ-45 LAN Port

– HD Audio Jacks: Line in / Front Speaker / Microphone

Form Factor :

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
