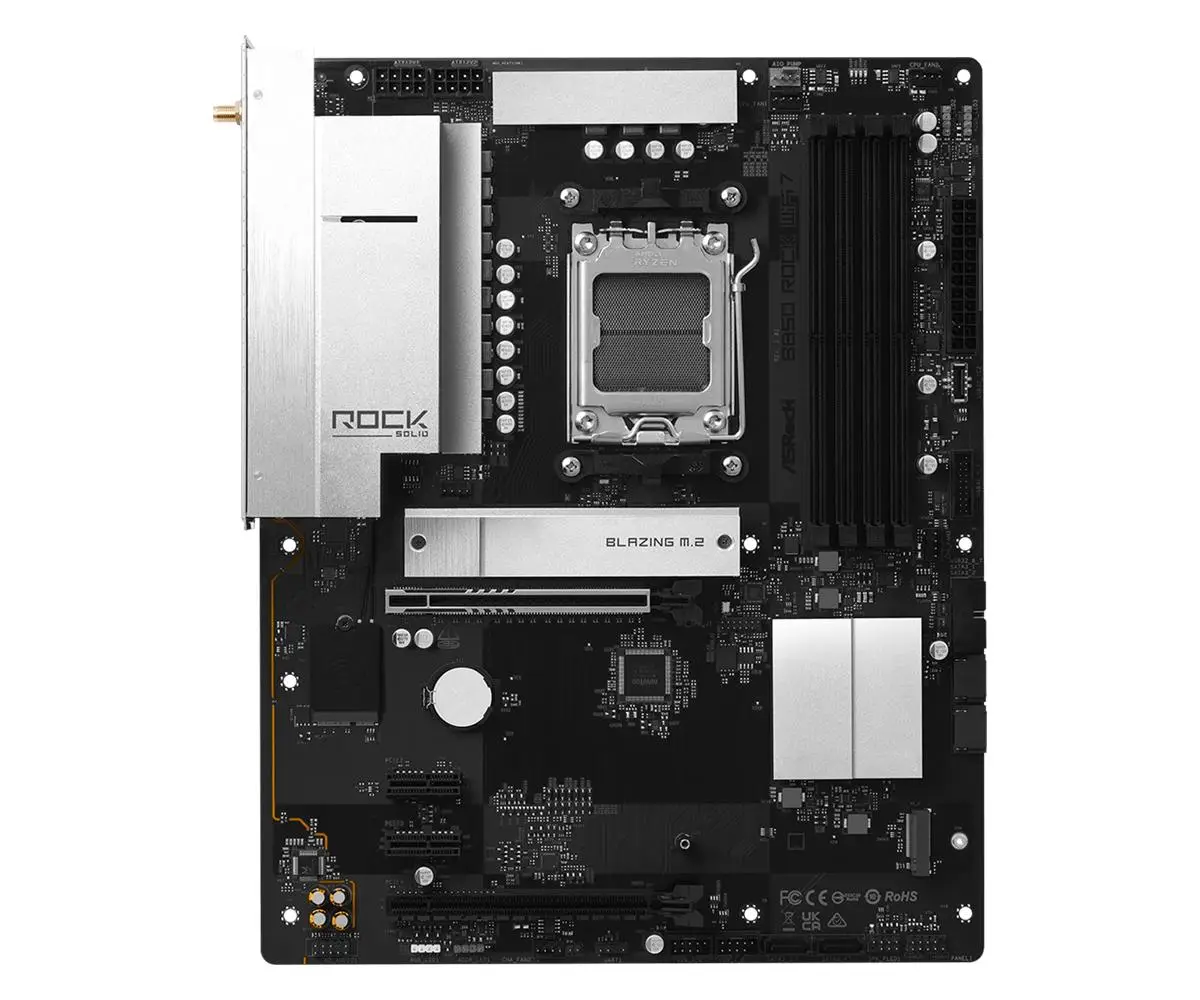

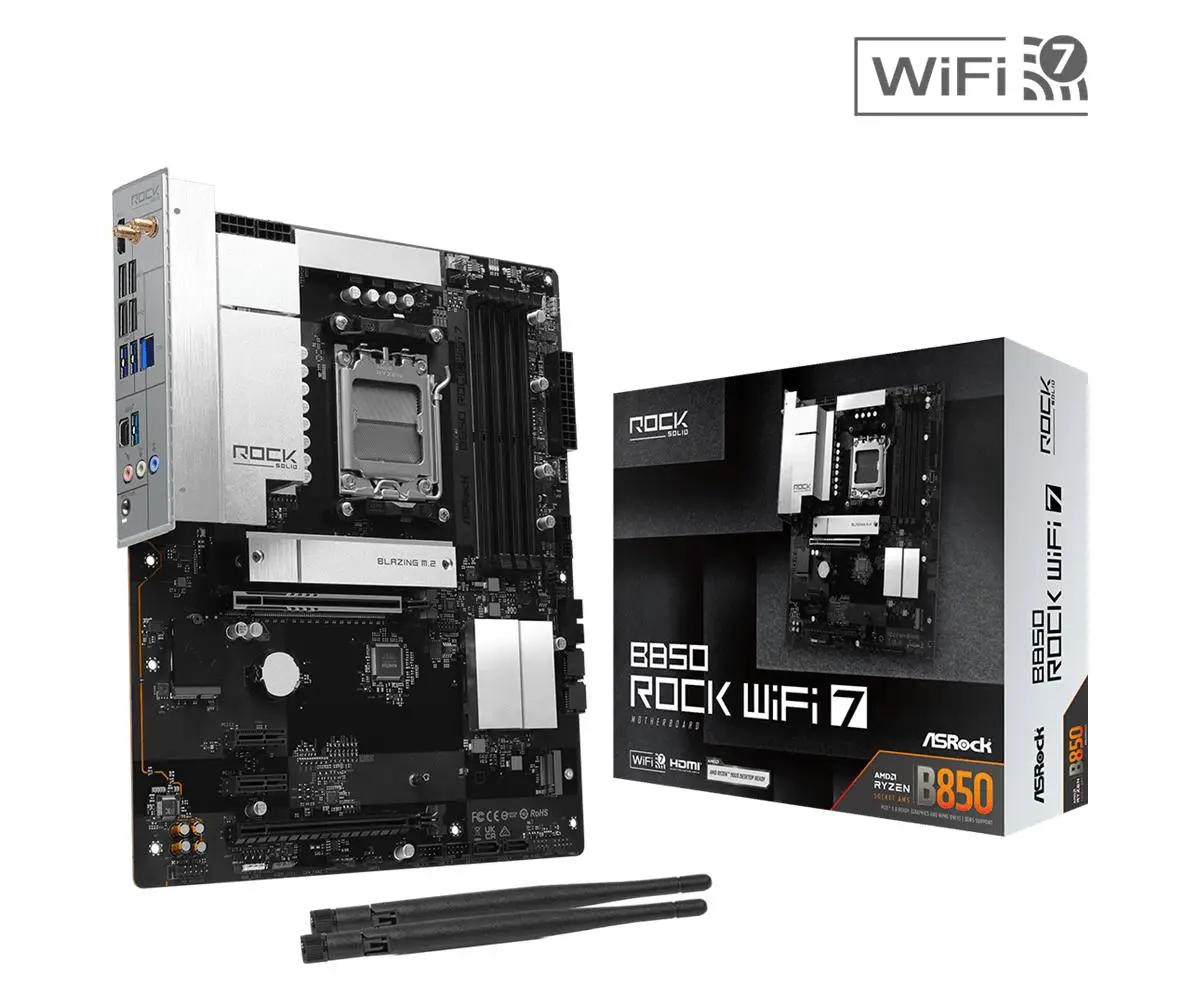

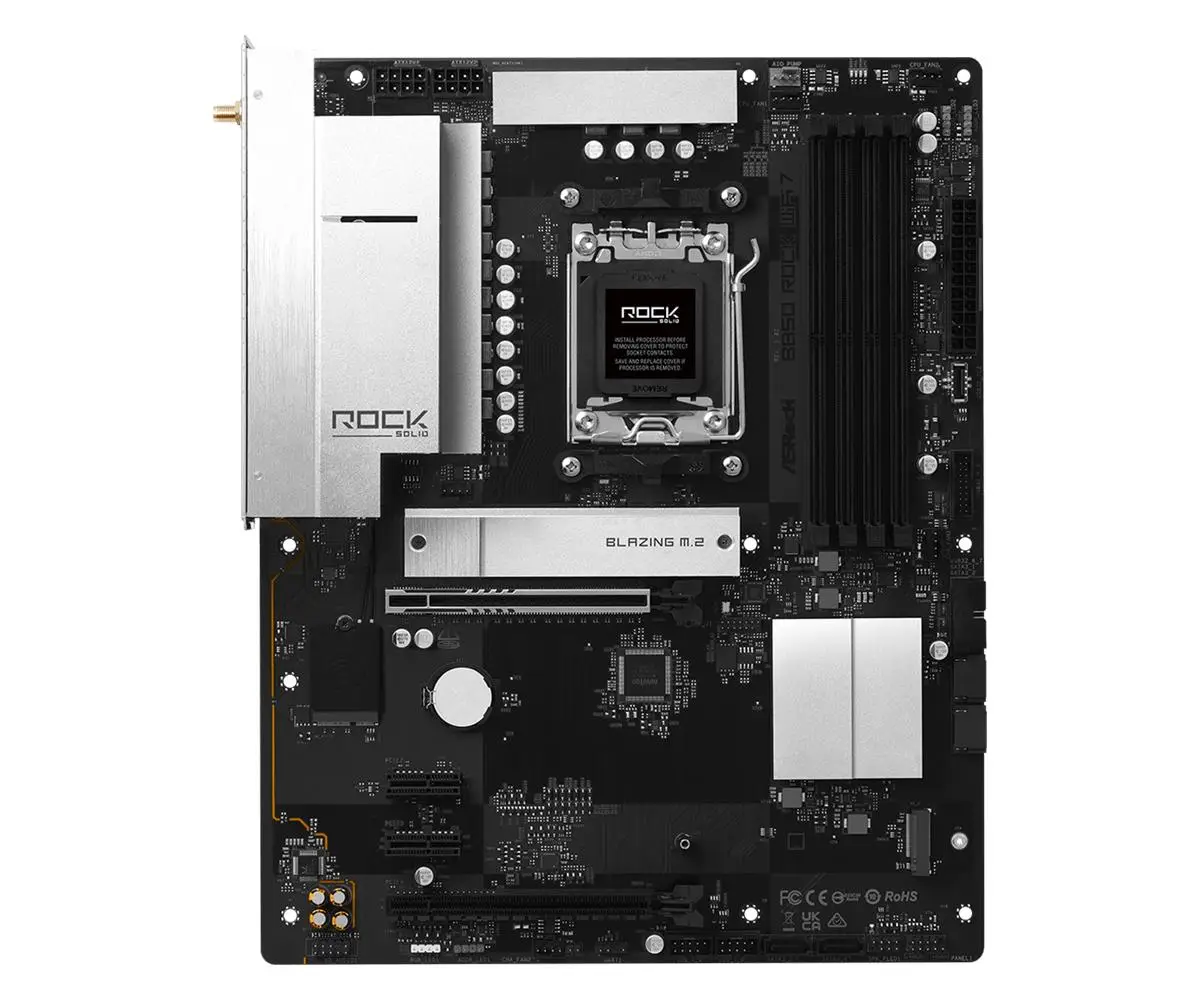

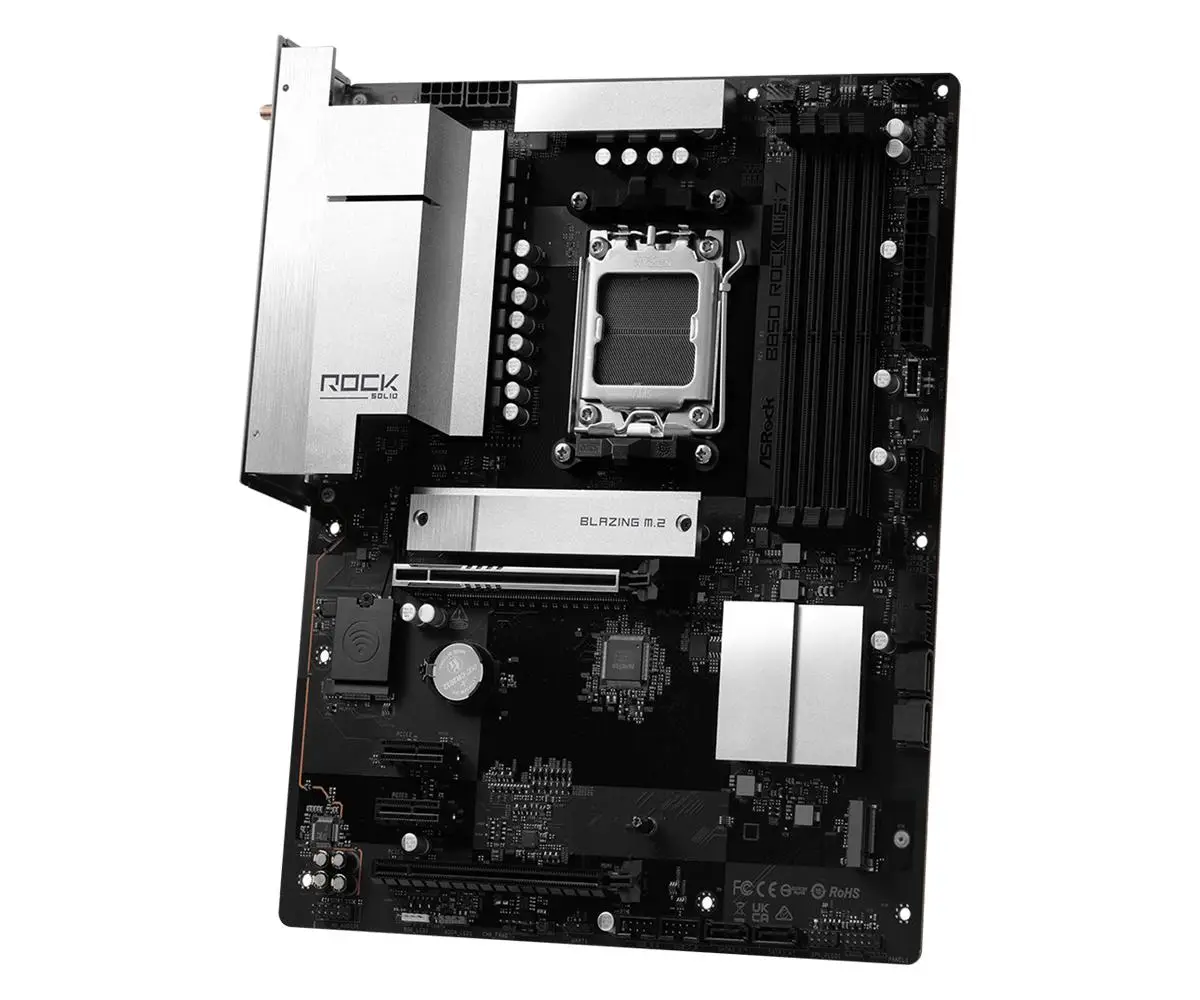

ASRock B850 ROCK WIFI 7 (AMD AM5, B850, DDR5, Type C)
Rp3.423.000 Rp3.149.160
Availability: 99999 in stock
Availability: 99999 in stock
Pengiriman
- Dikirim dari Jakarta
- Ongkir mulai dari Rp. 10.000
Lihat Panduan Melakukan Pembelian
Pelajari lebih lanjut mengenai langkah melakukan pembelian produk.
Hubungi Layanan Pelanggan
Anda dapat menghubungi layanan pelanggan untuk informasi lebih lanjut.
Deskripsi Produk
Silakan konfirmasi stock sebelum melakukan pembelian 🙂
Masa garansi 3 tahun
Specification :
Unique Feature :
Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
CPU : Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset : AMD B850
Memory :
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS : 512Mb AMI UEFI Legal BIOS with GUI support
Graphics :
Integrated AMD RDNA graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN :
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN :
– 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/be
– Supports 2.4GHz/5GHz/6GHz* frequency band
– Supports 160MHz channel bandwidth with 6GHz* frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO
Slots :
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
– 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
Chipset:
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage :
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
– 4 x SATA3 6.0 Gb/s Connectors
RAID :
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB :
CPU:
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
Chipset:
– 1 x USB 3.2 Gen1 Type-C (Front)
– 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_2), 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
Connector :
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

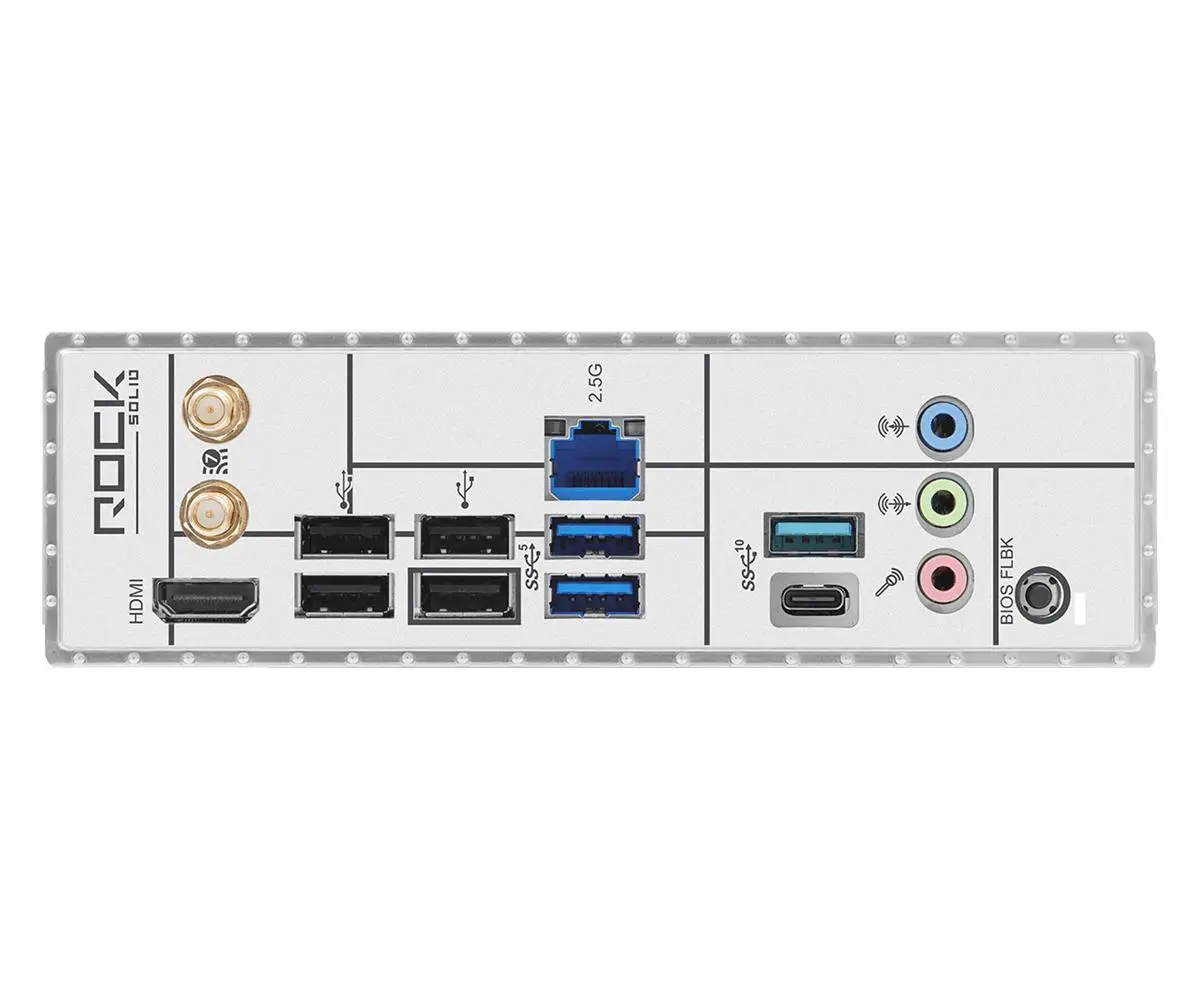

Rear Panel I/O :
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories :
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor :
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
