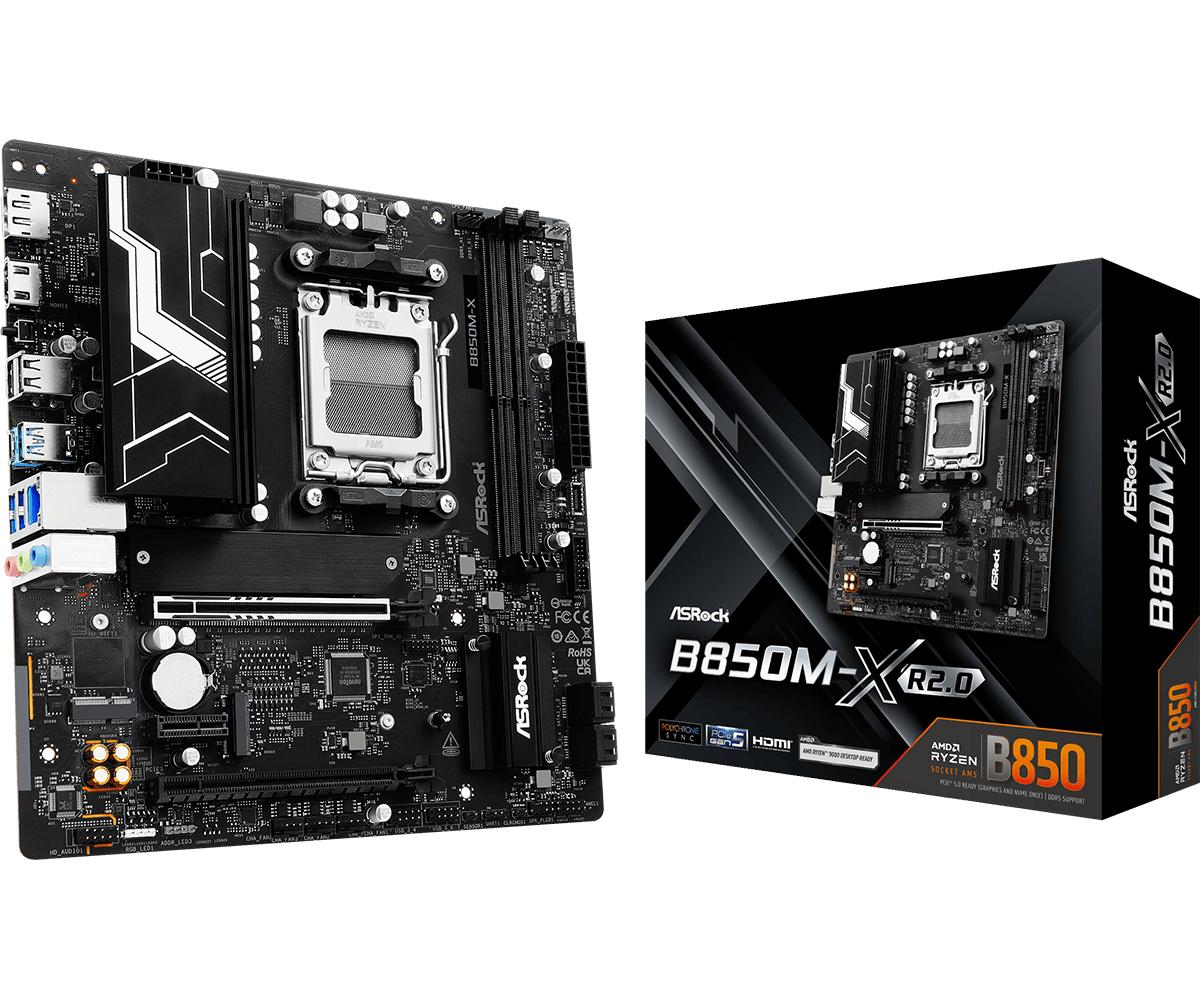

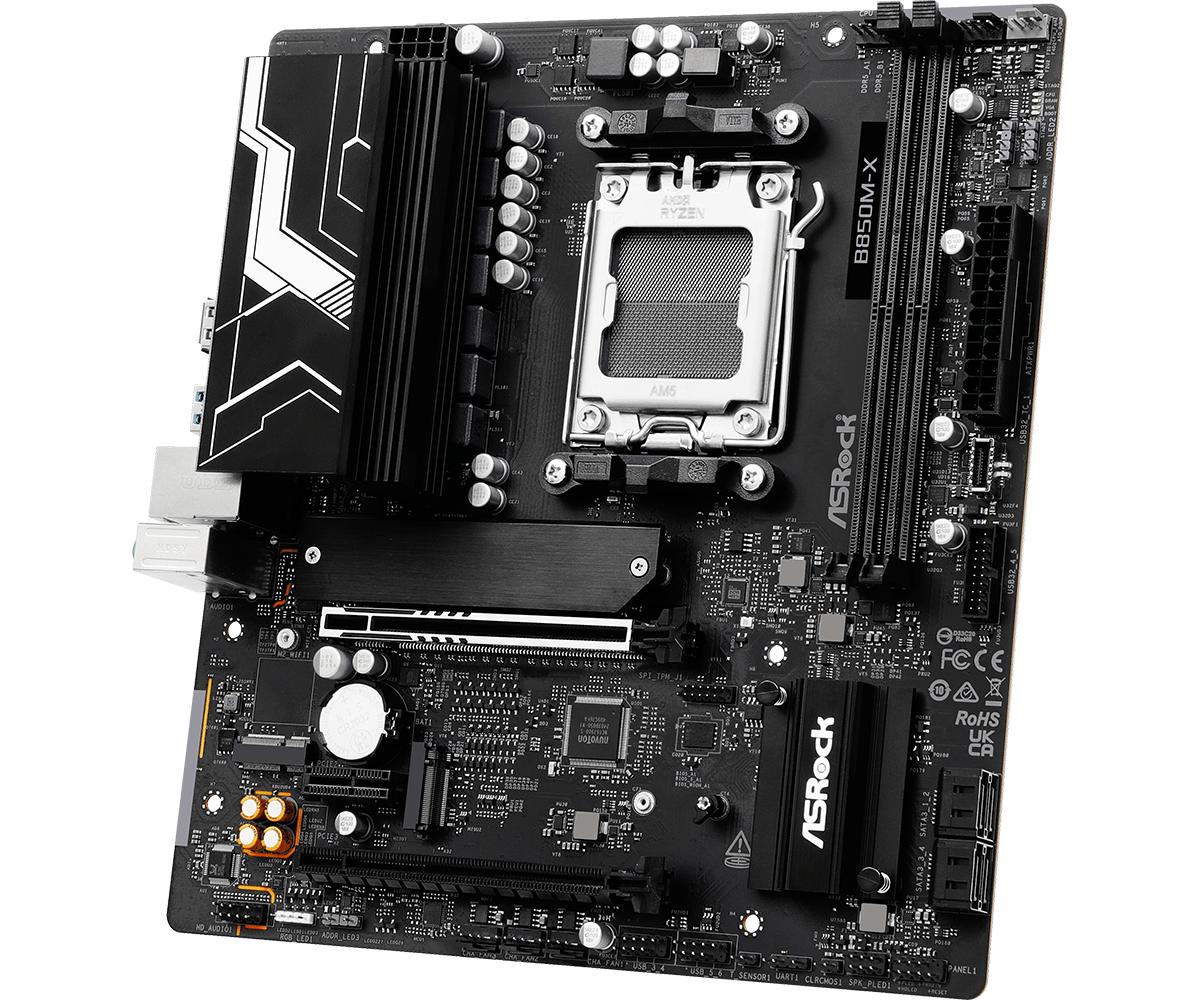

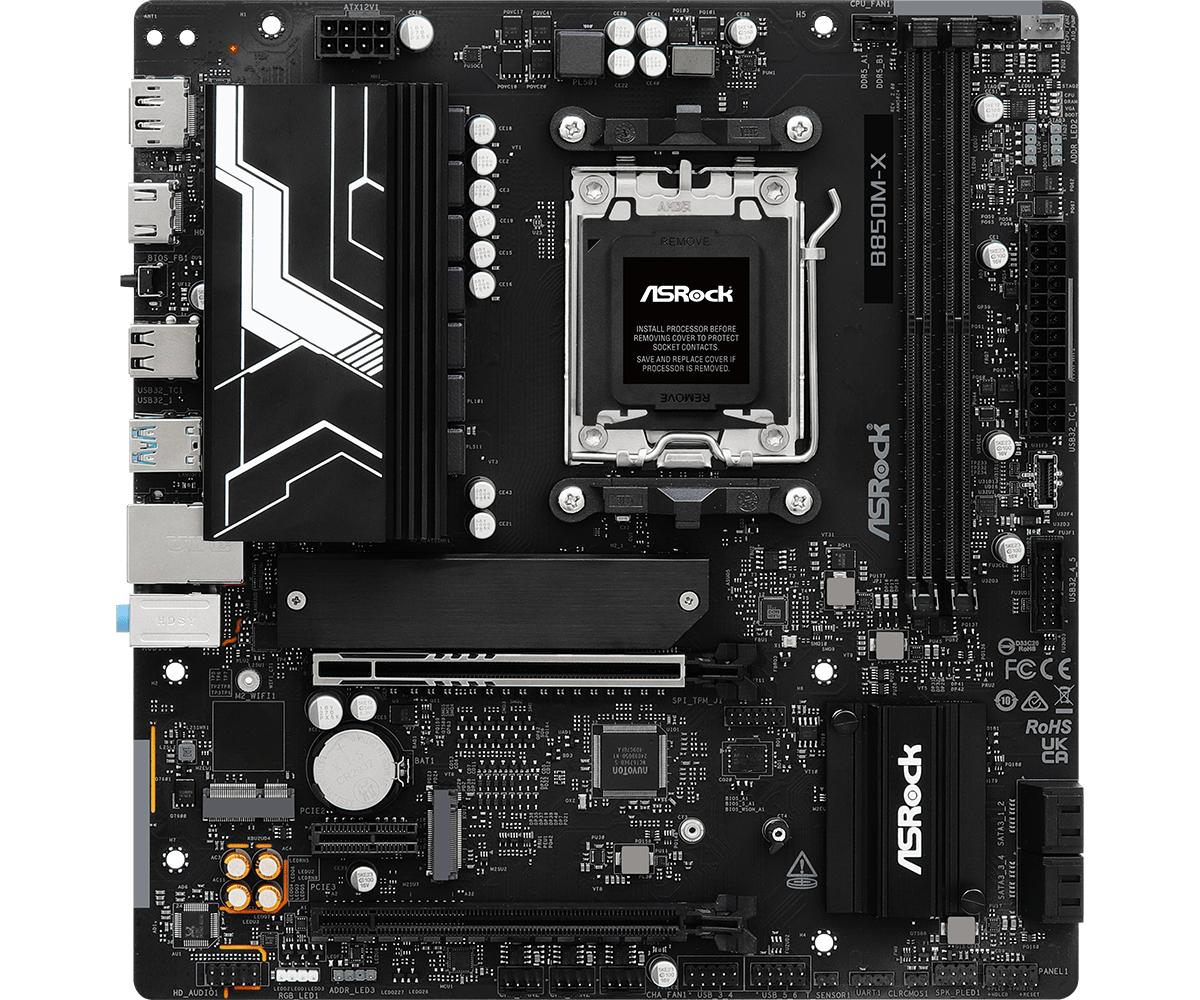

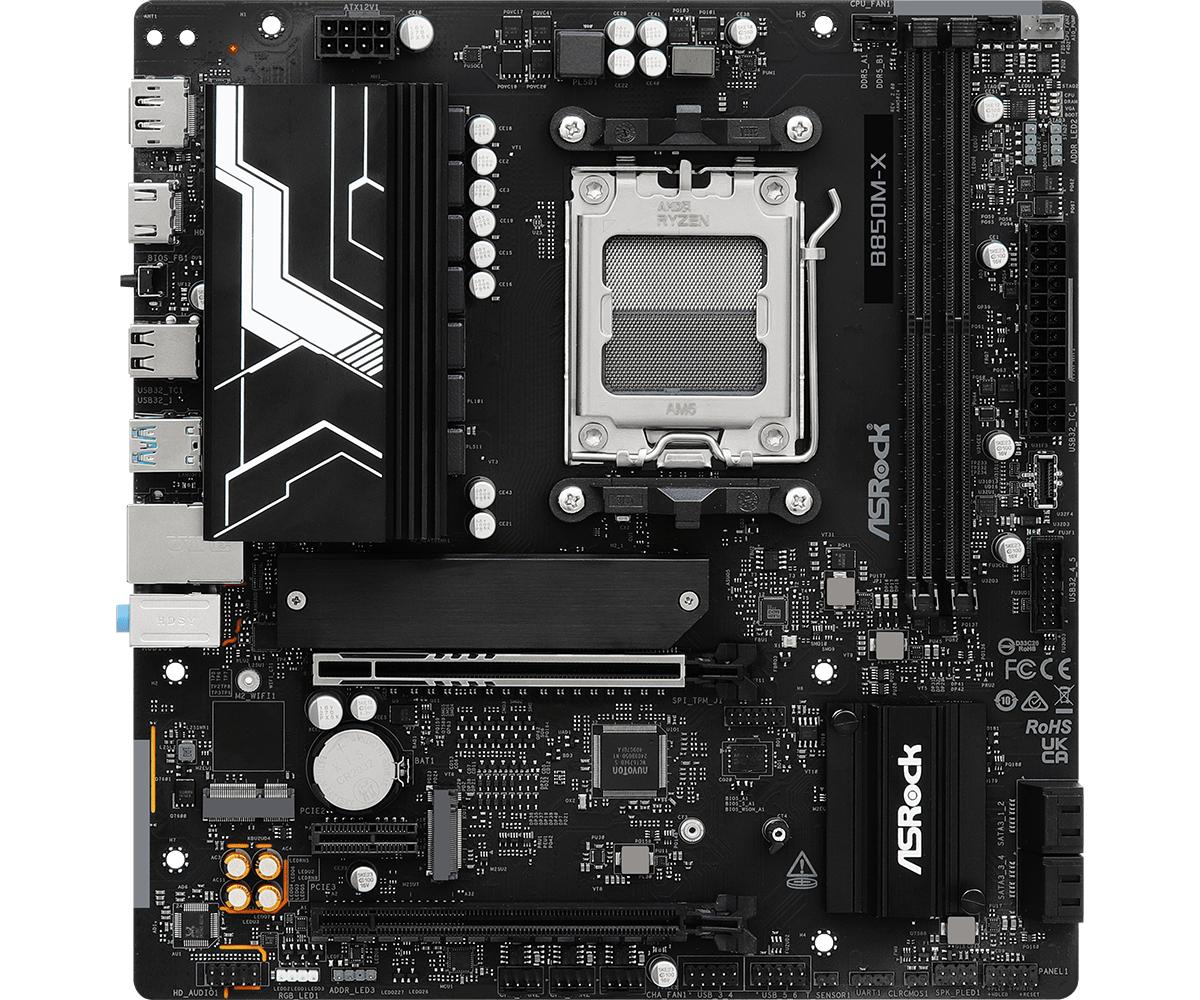

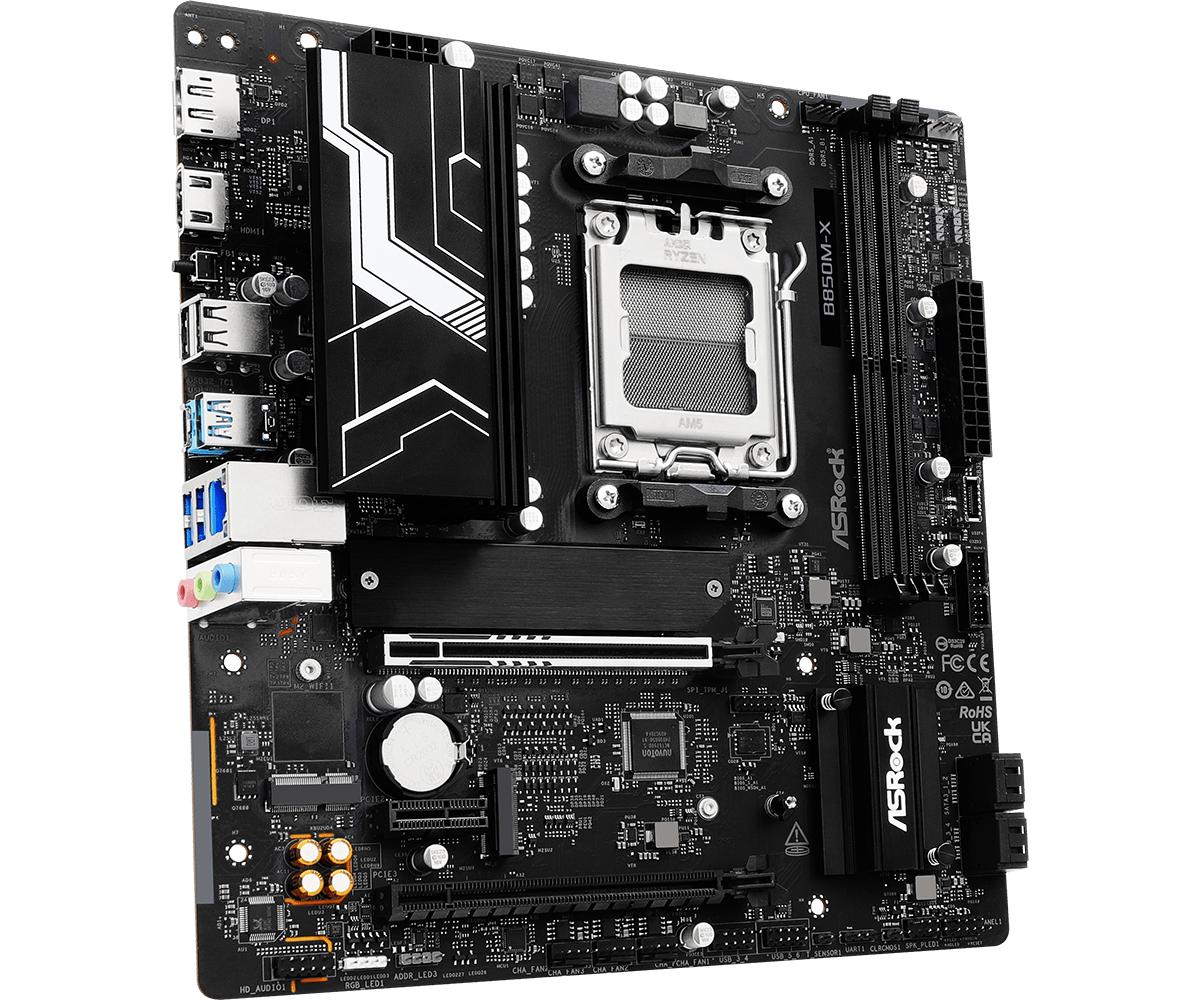

ASROCK B850M-X R2.0 (AM5, B850, DDR5, Type C)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

CPU : Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset : AMD B850

Memory : Dual Channel DDR5 Memory Technology / 2 x DDR5 DIMM Slots

BIOS : 256Mb AMI UEFI Legal BIOS with GUI support

Graphics :

Integrated AMD RDNA graphics (Actual support may vary by CPU)

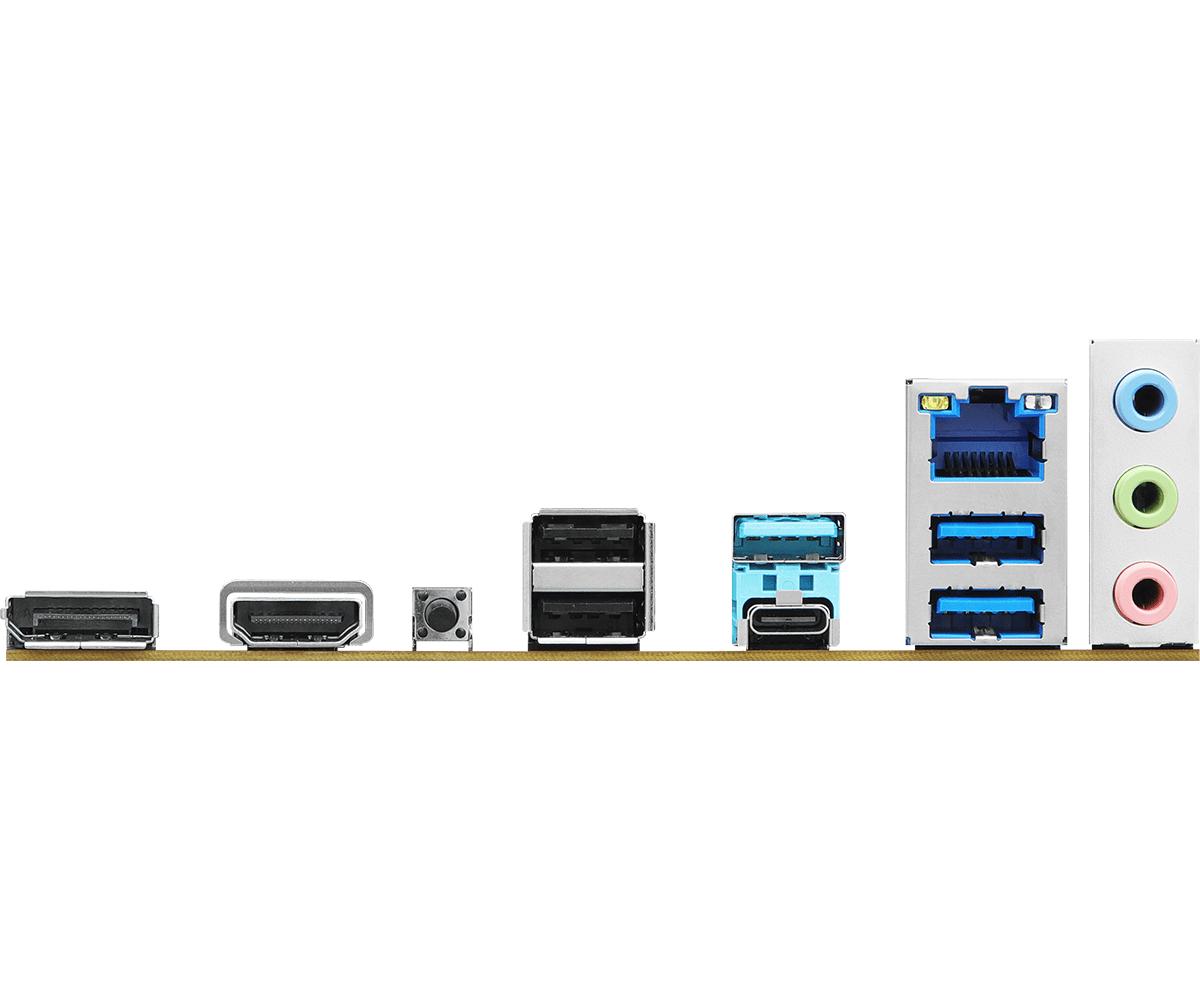

– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio :

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

– Nahimic Audio

LAN :

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

– Dragon RTL8125BG

– Supports Dragon 2.5G LAN Software

– Smart Auto Adjust Bandwidth Control

– Visual User Friendly UI

– Visual Network Usage Statistics

– Optimized Default Setting for Game, Browser, and Streaming Modes

– User Customized Priority Control

Slots :

CPU : 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset :

1 x PCIe 4.0 x1 Slot (PCIE2)

1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Connector :

– 1 x Thermistor Cable Header
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

Accessories :

– 1 x I/O Shield

– 2 x SATA Data Cables

– 1 x Screw for M.2 Socket

Form Factor : Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
