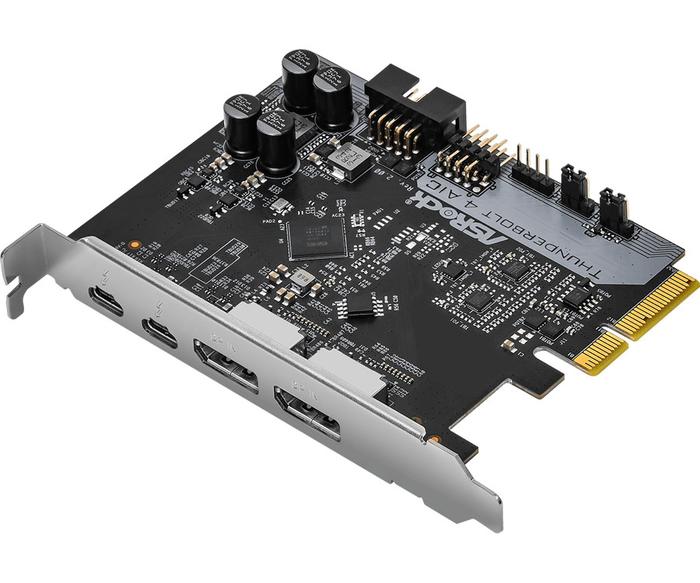

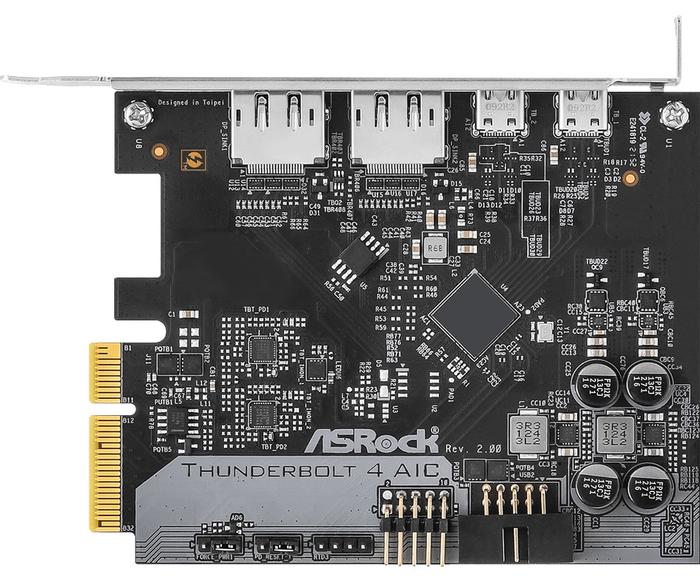

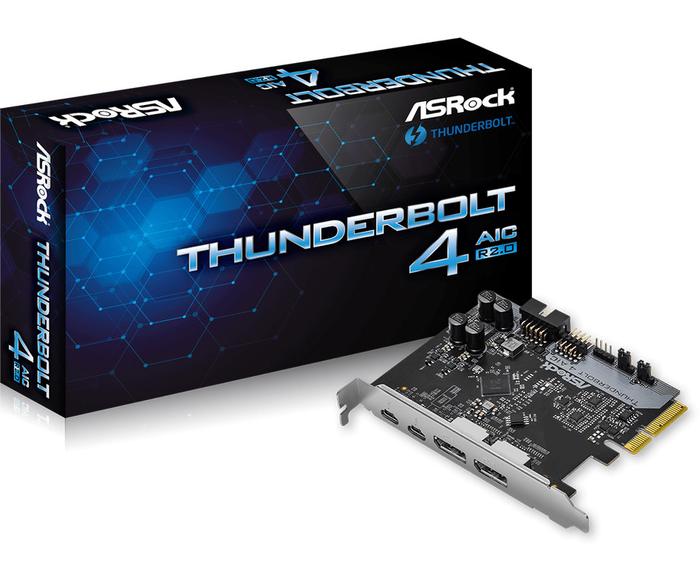

ASROCK Thunderbolt 4 AIC R2.0

Garansi Resmi Fast Respon: WA: 081219011111. Silakan Komfirmasi Persediaan Stok Barang Sebelum Melakukan pembelian Trimaksih.

Intel JHL8540 Thunderbolt 4 Controller
Delivers breathtaking 40 Gb/s data transfer speeds!

Single-cable connection for connecting a 5K@60Hz or two 4K@60Hz displays. Supports USB PD 3.0 charging up to 9V@3A (27W). Connecting to any dock, device or display which includes PCIe, USB, DisplayPort protocols.

Platform – Dimensions: 3.3-in x 4.1-in
Chipset – Intel JHL8540 Thunderbolt 4 Controller
External Connectors –
– 2 x Thunderbolt 4 Type-C Ports (with up to 40Gbps bandwidth)*
– 1 x TBT Header
– 2 x DisplayPort IN PortsM
– 1 x USB 2.0 Header

*Supports daisy-chaining of up to six Thunderbolt devices. Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging.

Interface – PCI Express 3.0 x4 interface.

Graphics –
– Supports ThunderboltTM 4 interface with max. resolution of 5K (5120 x 2880)@ 60Hz for one display over a single cable connection.
– Supports ThunderboltTM 4 interface with max. resolution of 4K x 2K (4096×2160)@ 60Hz for dual displays over a single cable connection.
– Supports up to two streams (eight lanes) of DisplayPort video bandwidth ; supports daisy-chaining of multiple DisplayPort monitors.

Data Rate – Supports 40Gbps bi-directional bandwidth per channel with Thunderbolt 4 port.

OS – Microsoft Windows 10 64-bit / 11 64-bit.

Accessories –
– Quick Installation Guide,
– Support CD
– 1 x TBT Header Cable
– 2 x DisplayPort Cables
– 1 x USB 2.0 Cable.
