Specification :

CPU : Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset : AMD X870

Memory :

Dual Channel DDR5 Memory Technology

– 4 x DDR5 DIMM Slots

– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

– Max. capacity of system memory: 256GB

– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS : 512Mb AMI UEFI Legal BIOS with GUI support

Graphics :

Integrated AMD RDNA graphics (Actual support may vary by CPU)

– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio :

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

– Nahimic Audio

LAN :

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

– Dragon RTL8125BG

– Supports Dragon 2.5G LAN Software

– Smart Auto Adjust Bandwidth Control

– Visual User Friendly UI

– Visual Network Usage Statistics

– Optimized Default Setting for Game, Browser, and Streaming Modes

– User Customized Priority Control

Wireless LAN :

– 802.11be 2×2 Wi-Fi 7 Module

– Supports IEEE 802.11a/b/g/n/ac/ax/be

– Supports 2.4GHz/5GHz/6GHz frequency band

– Supports 160MHz channel bandwidth with 6GHz frequency band

– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

– Supports Bluetooth 5.4

– Supports MU-MIMO

Slots :

CPU:

– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage :

CPU:

– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*

– 2 x SATA3 6.0 Gb/s Connectors

USB :

CPU:

– 2 x USB4 Type-C (Rear)

– 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))

– 1 x USB 3.2 Gen1 Type-A (Rear)

Chipset:

– 1 x USB 3.2 Gen2 Type-A (Rear (USB32_2))

– 1 x USB 3.2 Gen1 Type-C (Front)

– 4 x USB 3.2 Gen1 Type-A (Front)

– 8 x USB 2.0 (4 Rear, 4 Front)

Connector :

– 1 x SPI TPM Header

– 1 x Power LED and Speaker Header

– 1 x RGB LED Header

– 3 x Addressable LED Headers

– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

– 1 x 24 pin ATX Power Connector

– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

– 1 x Front Panel Type C USB 3.2 Gen1 Header

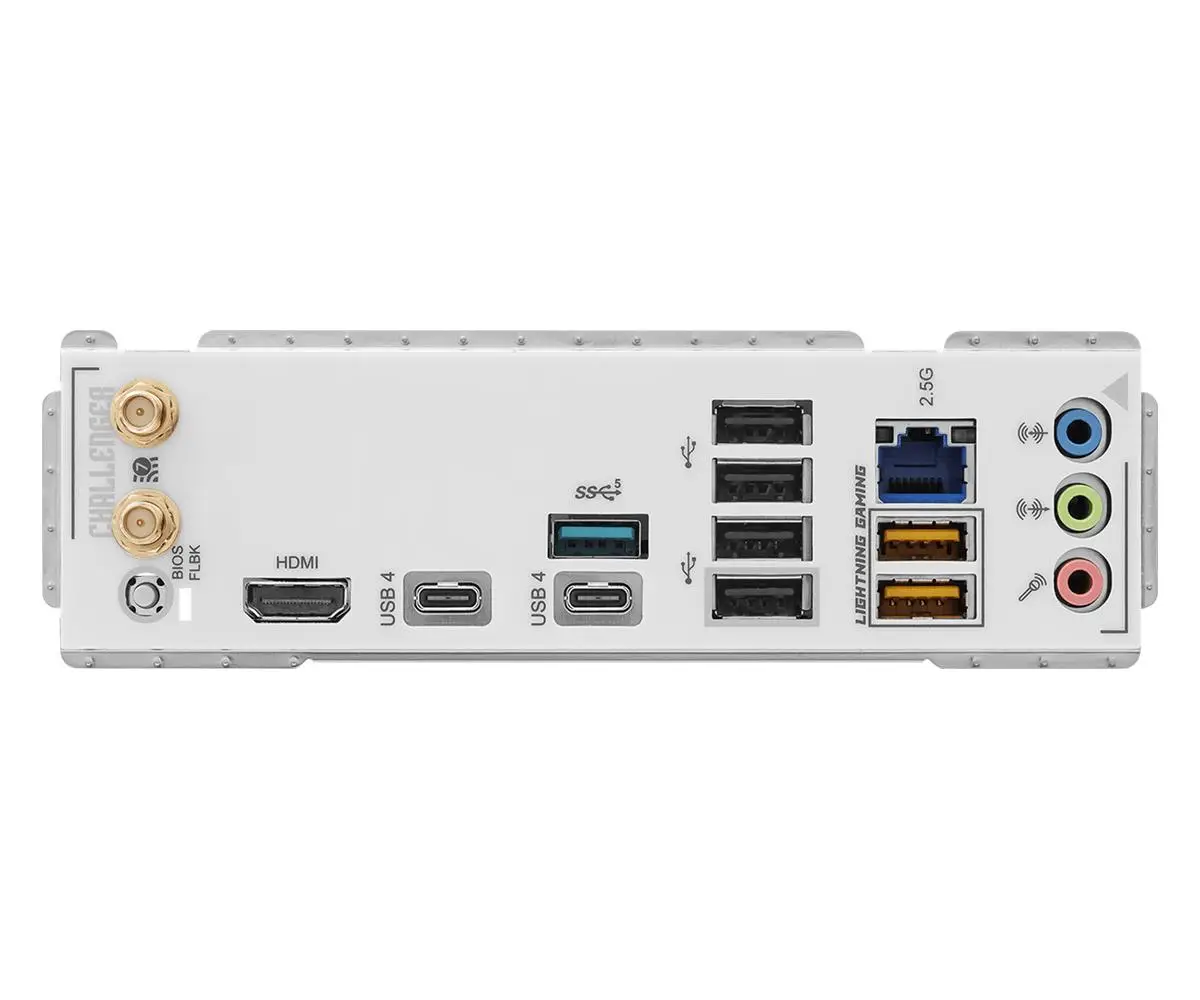

Rear Panel I/O :

– 2 x Antenna Ports

– 1 x HDMI Port

– 2 x USB4 Type-C Ports (40 Gb/s)

– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.)

– 1 x USB 3.2 Gen1 Type-A Port

– 4 x USB 2.0 Ports

– 1 x RJ-45 LAN Port

– 1 x BIOS Flashback Button

– HD Audio Jacks: Line in / Front Speaker / Microphone

Form Factor :

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

– 8 Layer PCB
