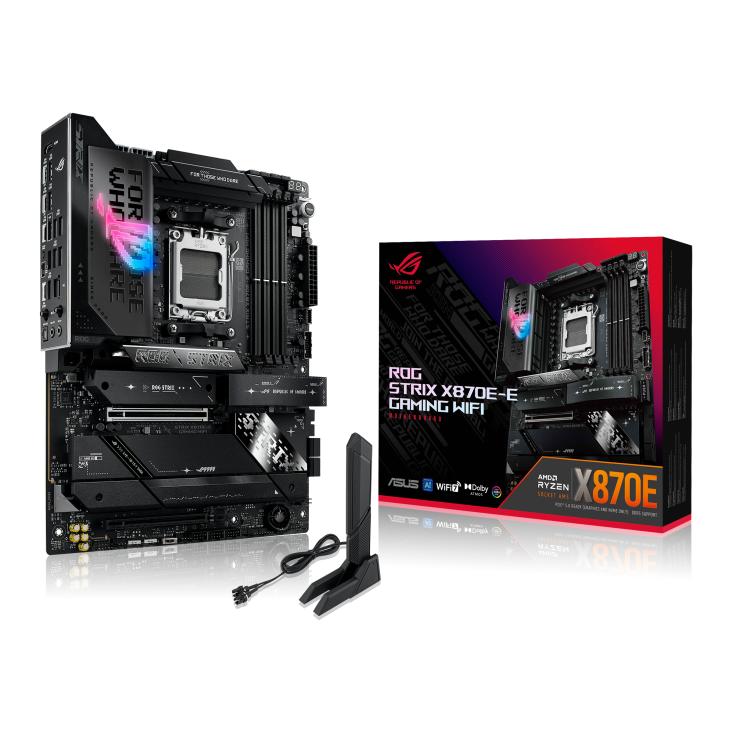

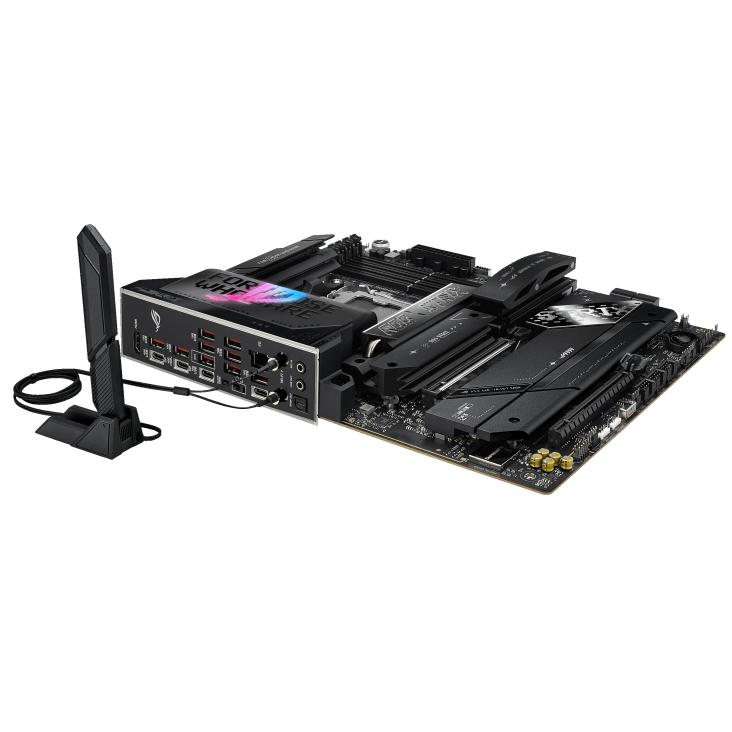

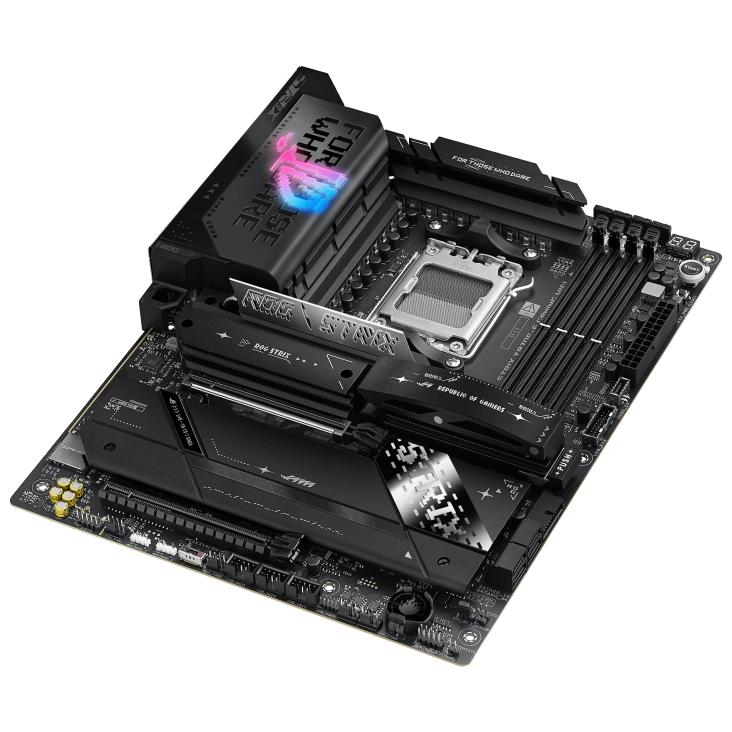

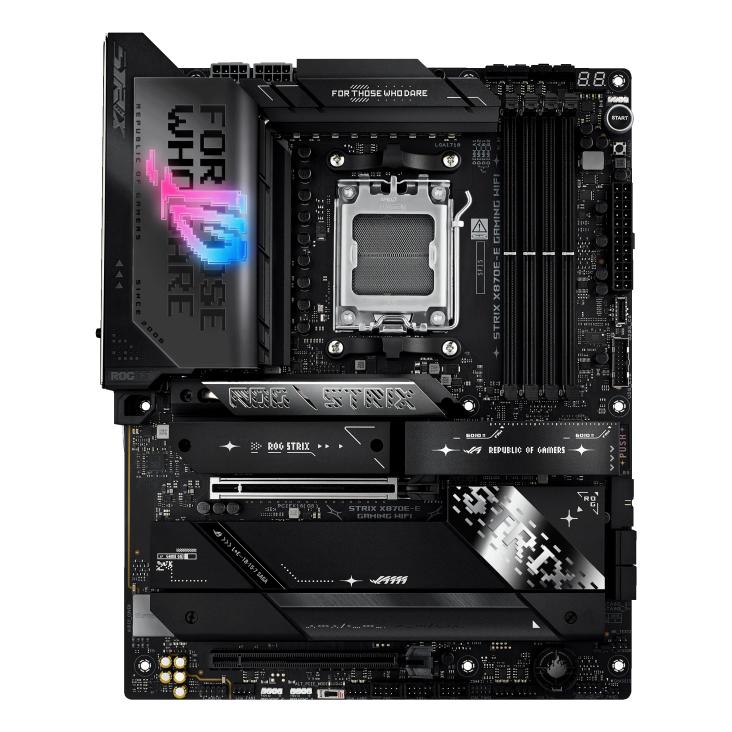

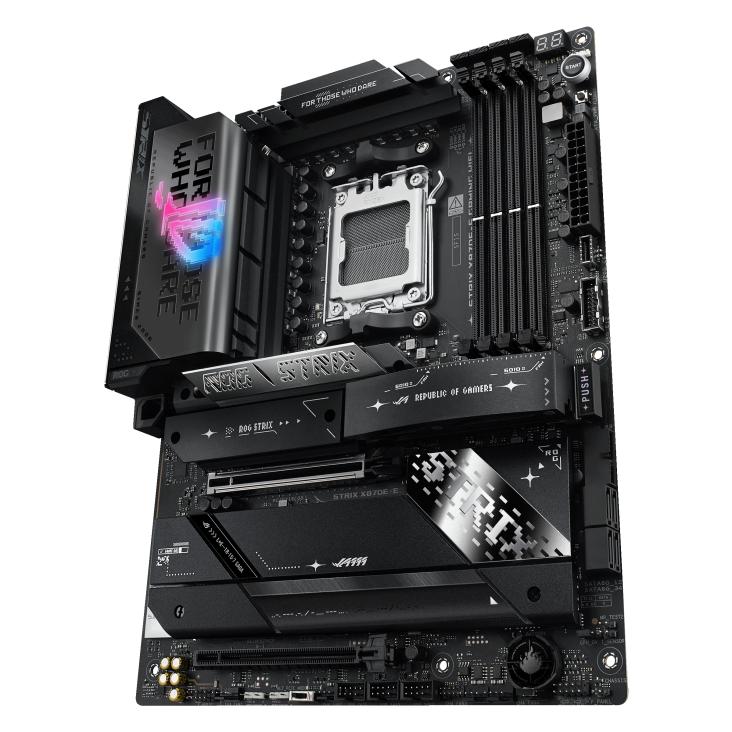

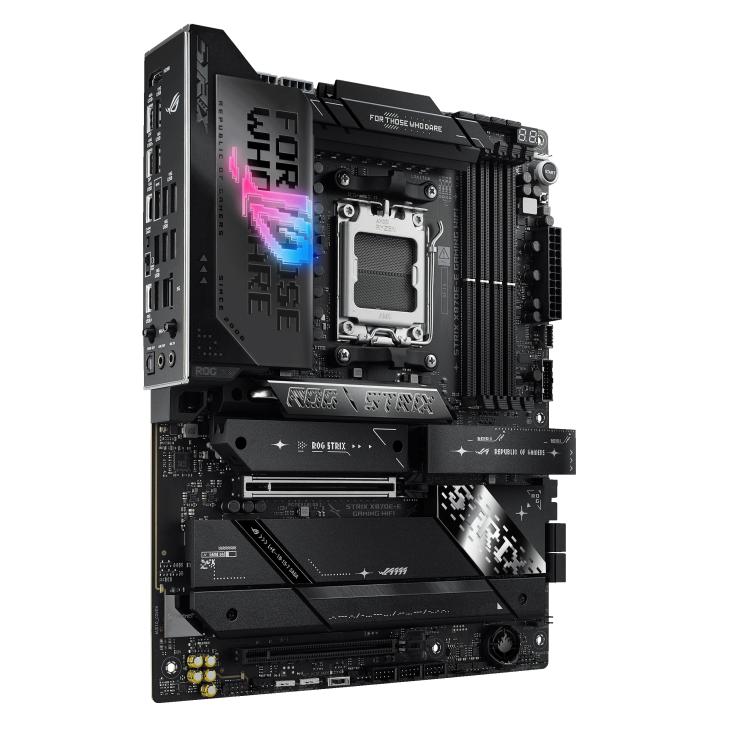

ASUS ROG STRIX X870E-E GAMING WIFI (AM5, AMD X870E, DDR5)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Model : ROG STRIX X870E-E GAMING WIFI

CPU : AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset : AMD X870E

Memory :

4 x DIMM slots, max. 256GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)

Graphics :
1 x HDMI port
2 x USB4 (40Gbps) ports support USB Type-C display outputs

Expansion Slots :

AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage :

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet :

1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth :

Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth v5.4

USB :

Rear USB (Total 13 ports)

2 x USB4 (40Gbps) ports(2 x USB Type-C)

1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)

10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)

Front USB (Total 11 ports)

1 x USB 20Gbps connector (supports USB Type-C)

2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio :

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– Audio Shielding

– Savitech SV3H712 AMP

– Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover

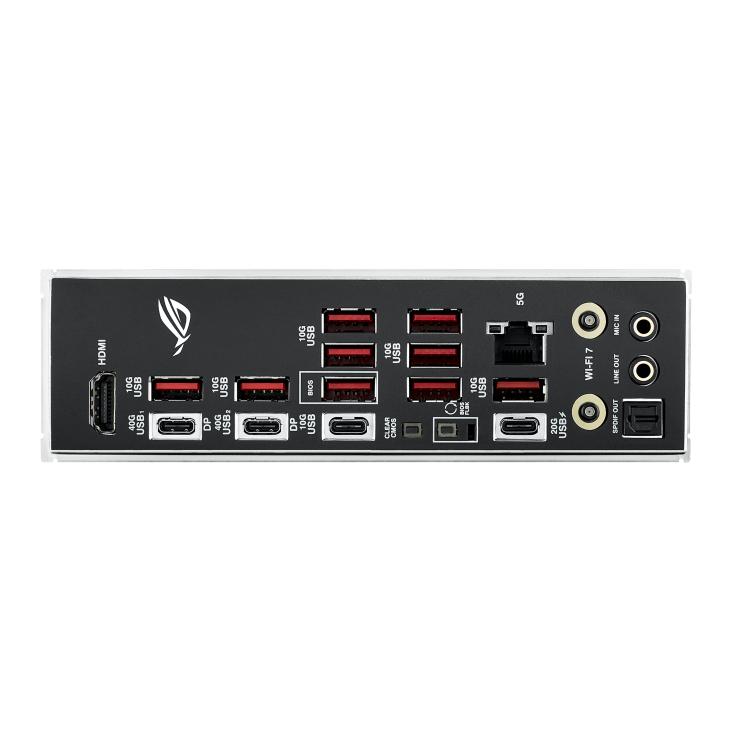

Back Panel I/O Ports :

2 x USB4 (40Gbps) ports (2 x USB Type-C)

1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)

10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)

1 x HDMI port

1 x Wi-Fi Module

1 x Realtek 5Gb Ethernet

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Internal I/O Connectors :

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C)

2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x CPU Over Voltage jumper

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features :

Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– M.2 Q-Release

– M.2 Q-Slide

– PCIe Slot Q-Release Slim (with PCIe SafeSlot)

– Q-Antenna

– Q-Code

– Q-Dashboard

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsinks

– M.2 heatsink backplate

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack button

– BIOS FlashBack LED

– Clear CMOS button

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

Aura Sync

– Addressable Gen 2 headers

Software Features :

ROG Exclusive Software

– ROG CPU-Z

– Dolby Atmos

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– Aura Creator

– Aura Sync

– Fan Xpert 4 (with AI Cooling II)

– GameFirst

– HWiNFO

– Power Saving

ASUS Driver Hub

ASUS GlideX

TurboV Core

USB Wattage Watcher

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI

BIOS EZ Mode

– ASUS

MyHotkey

Dynamic OC Switcher

FlexKey

BIOS : 256 Mb  Flash ROM, UEFI AMI BIOS

Form Factor :

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
