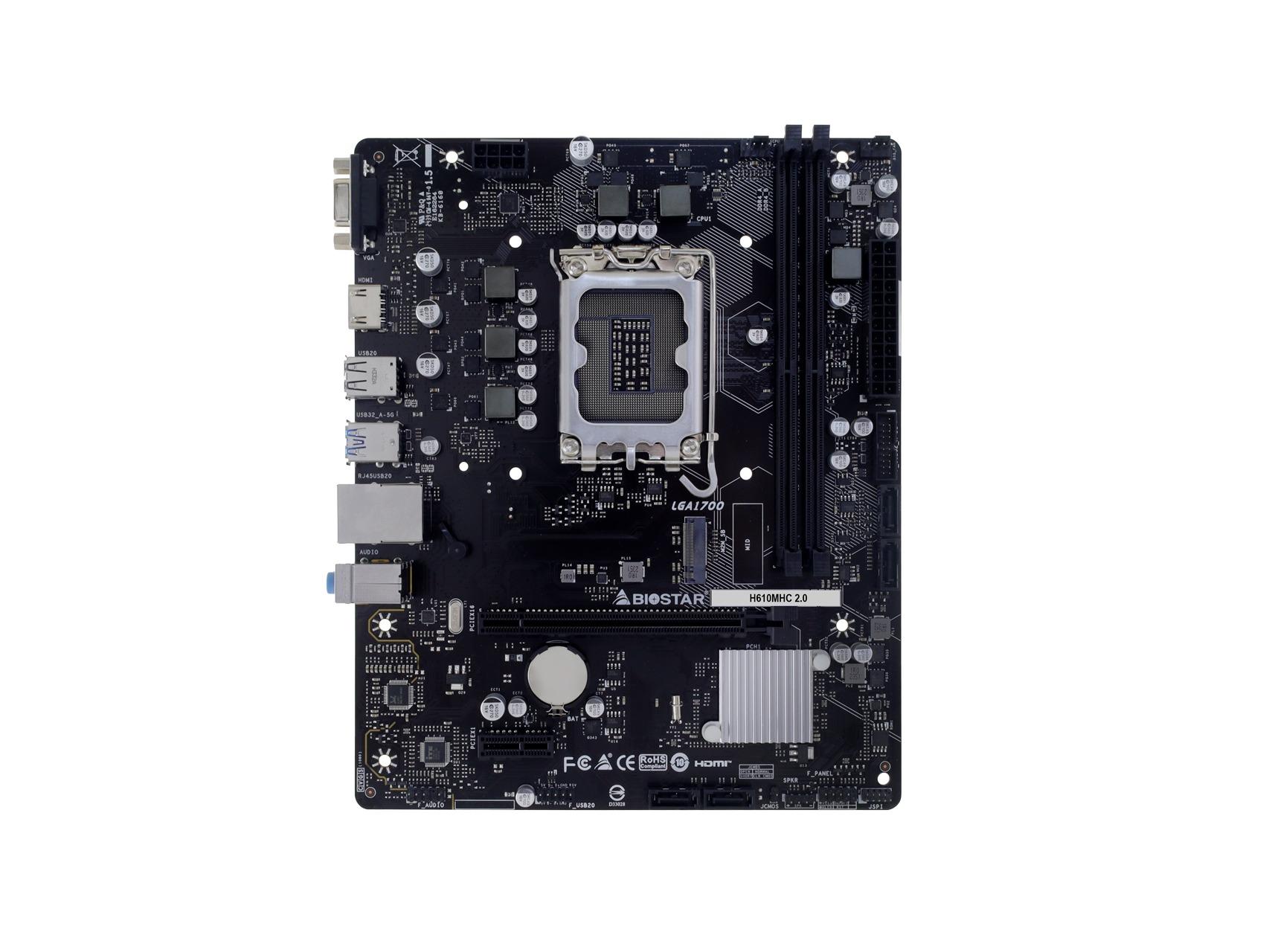

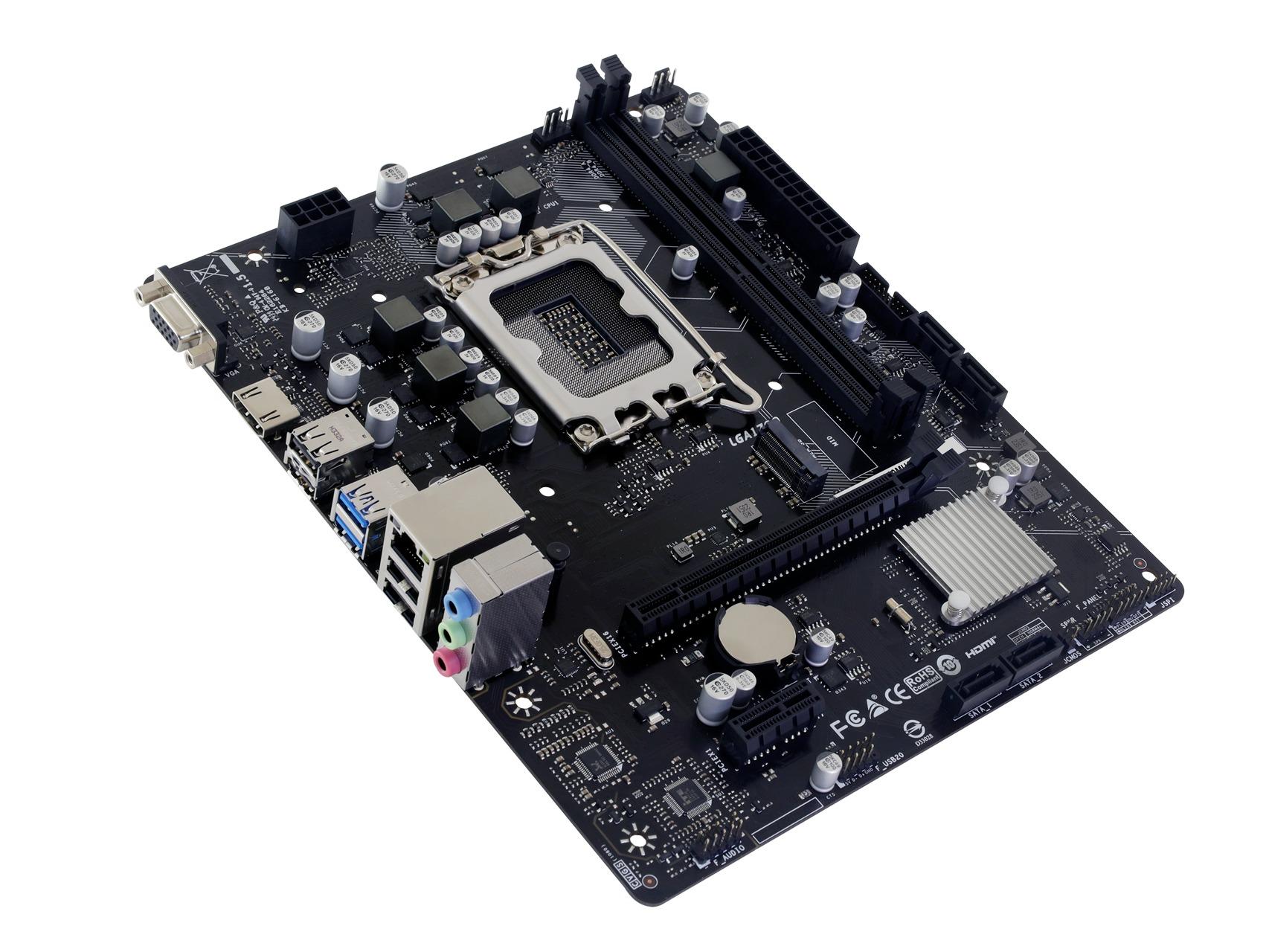

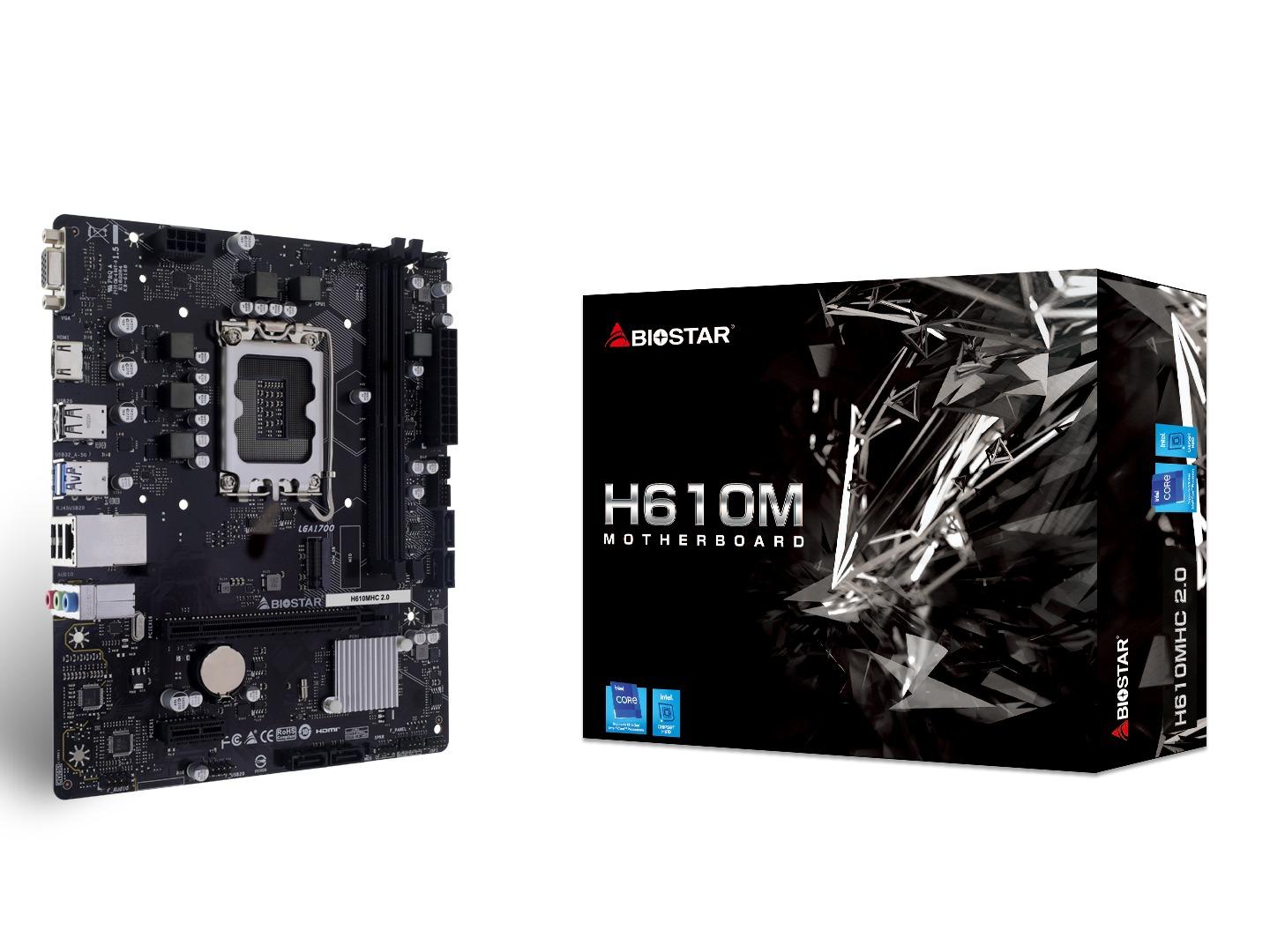

BIOSTAR H610MHC 2.0 (Socket Intel 1700)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Model Name : H610MHC 2.0

Chipset : Intel H610

CPU SUPPORT :

Support for 12th/13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

MEMORY :

Supports Dual Channel DDR4 – 3200/ 2933/ 2666/ 2400/ 2133/ 1866

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

INTEGRATED VIDEO :

By CPU model
Supports DX12
Supports HDCP

STORAGE :
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
LAN :

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC :

ALC897
7.1 Channels, High Definition Audio

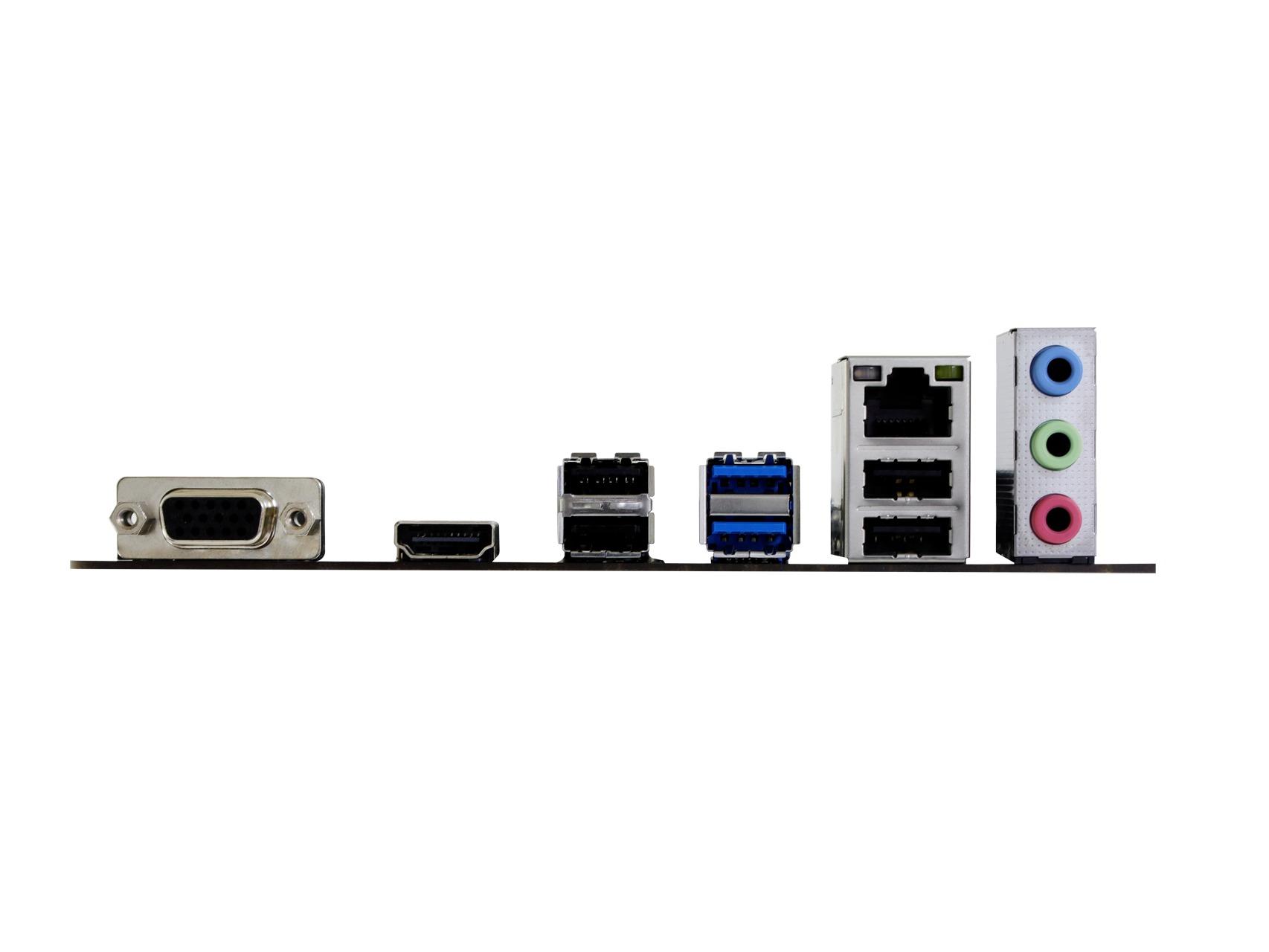

USB :

4 x USB 3.2 (Gen1) port
(2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port
(4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT :

Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot
Intel H610 Chipset
1x PCIe 3.0 x1 Slot
DIMENSION : Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
