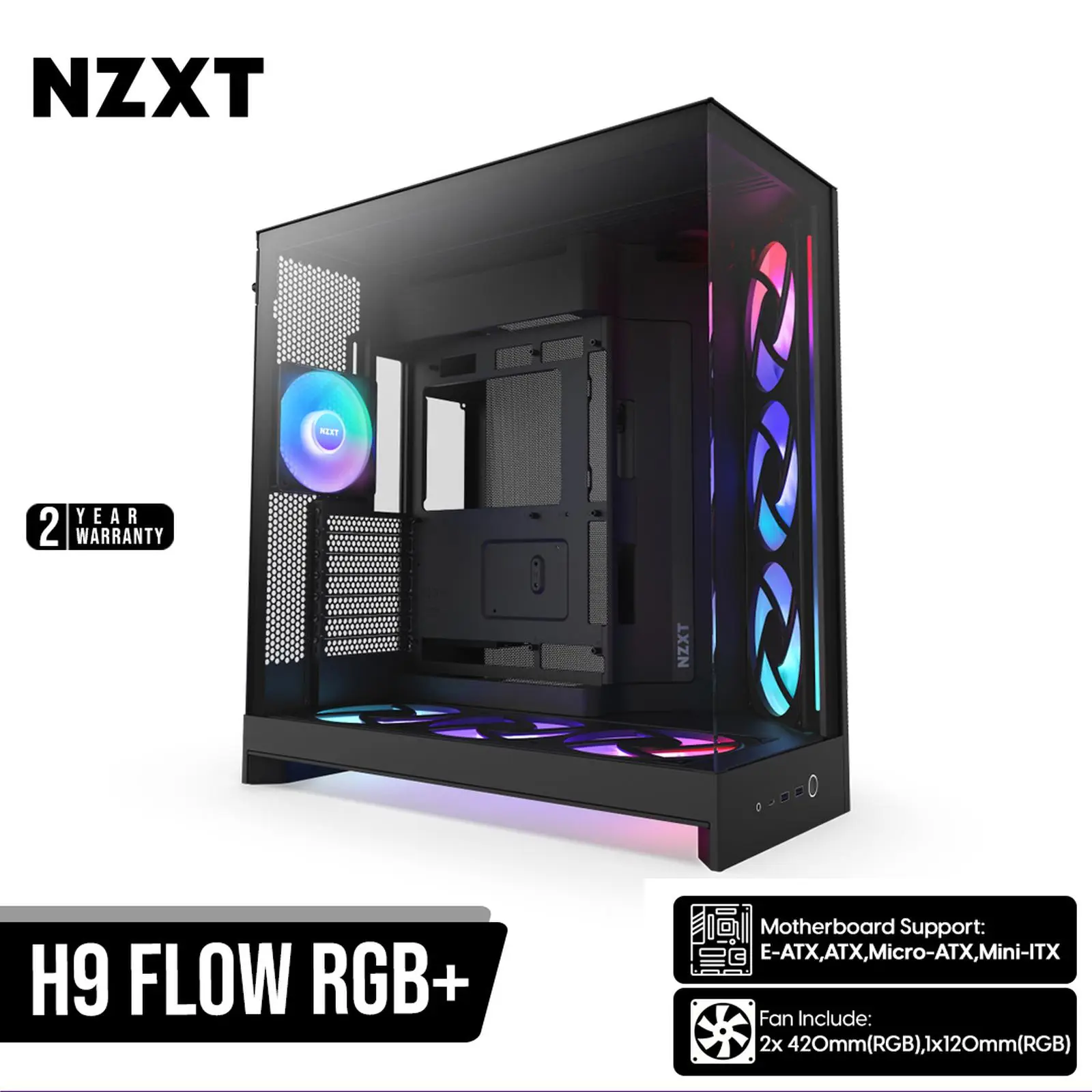

CASING NZXT H9 FLOW RGB+ Large Dual Chamber – Mid Tower E-ATX – BLACK

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Dimensions

Height : 506 mm (19.9 in)

Width : 315 mm (12.4 in)

Depth : 481 mm (18.9 in)

Volume : 76.7 L

Weight : 12.46 kg (27.47 lb)

General

Enclosure Type : Mid-tower

Motherboard Compatibility :

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

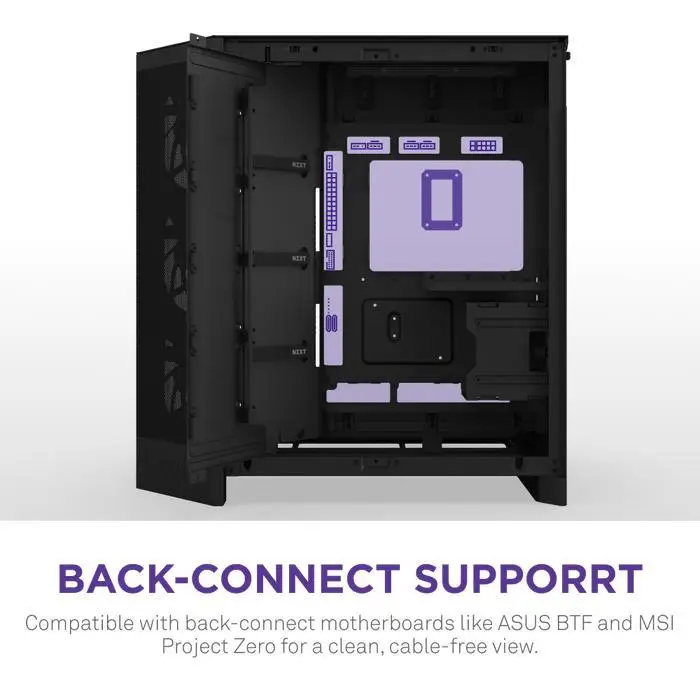

Rear-Connecting Motherboard Support (BTF, Project Zero)

Yes (ATX, Micro-ATX)

Materials :

SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height : 165 mm

GPU Length : Up to 459 mm

PSU Length : 200 mm

Top Radiator & Fan Thickness : Up to 80 mm (360 mm) Up to 62 mm (420 mm)

Front I/O Ports

USB 3.2 Type-A : 2

USB 3.2 Gen2x2 Type-C : 1

Headset Jack : 1

Expansion Slots

Standard : 7

Vertical : 0

Drive Bays

2.5″

4+2

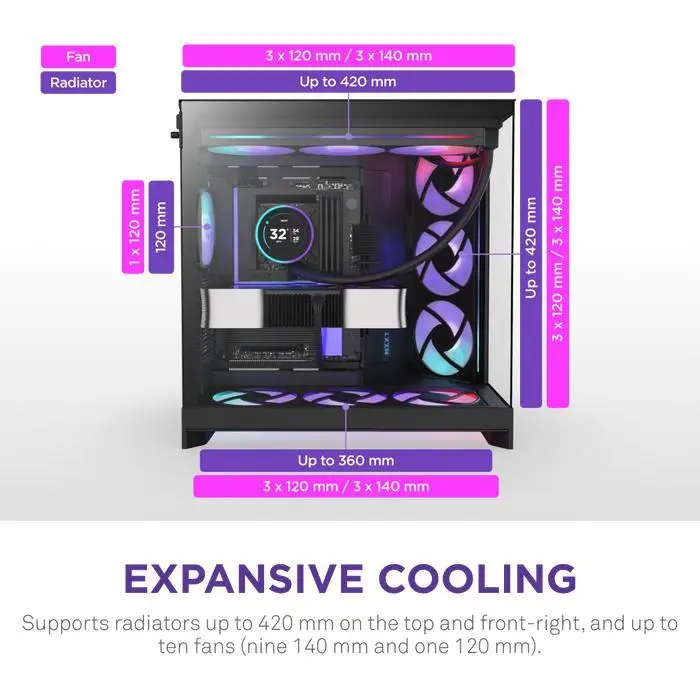

Fan Support

Front-Right : 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top : 3 x 120 mm / 3 x 140 mm

Bottom : 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Rear : 1 x 120 mm (1 x F120 RGB (CV) included)

Radiator Support

Front-Right : Up to 420 mm

Top : Up to 420 mm

Bottom : Up to 360 mm

Rear : Up to 120 mm

Fan Specs – F420 RGB Core

Model : F420 RGB Core

Speed : 2,000 ± 200 RPM

Airflow : 98.61 CFM

Static Pressure : 3.2 mmH2O

Noise : 34.5 dBA

Fan Connector : 8-pin w/ splitter

Fan Specs – F120 RGB Core (CV)

Model : F120 RGB Core (CV)

Speed : 1,300 ± 130 RPM

Airflow : 55.17 CFM

Static Pressure : 1.27 mmH2O

Noise : 26.1 dBA

Fan Connector : 3-pin

Control Hub Specs

Fan Channels :

3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)

RGB Channels : 4 x NZXT 8-pin / 1 x NZXT RGB

Max LED Support :

Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.

System Requirements : USB 2.0 Internal Header 8-pin PCIe Power

Warranty : 2 years

Product Info

Model Number : CM-H92FB-P1
