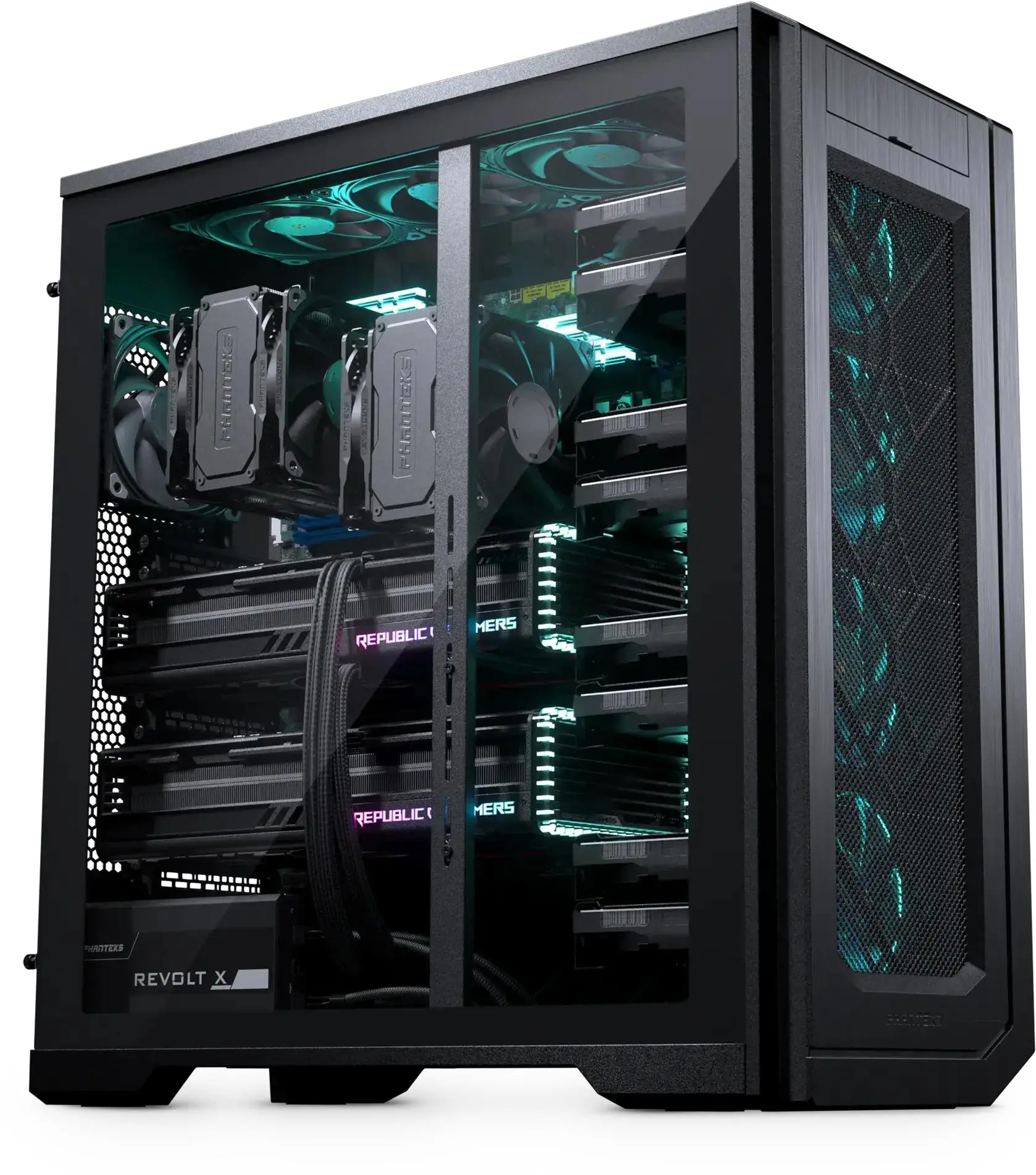

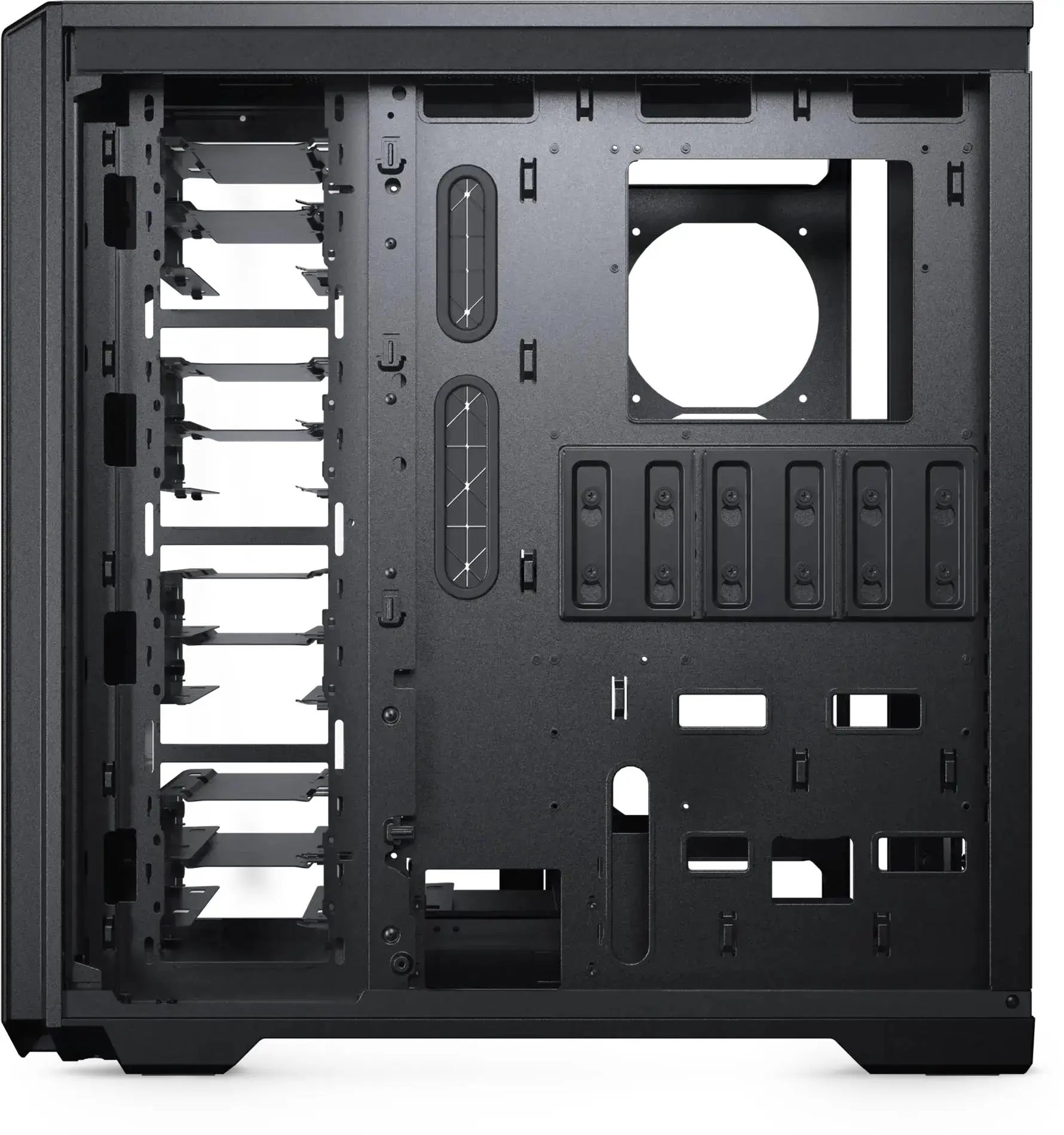

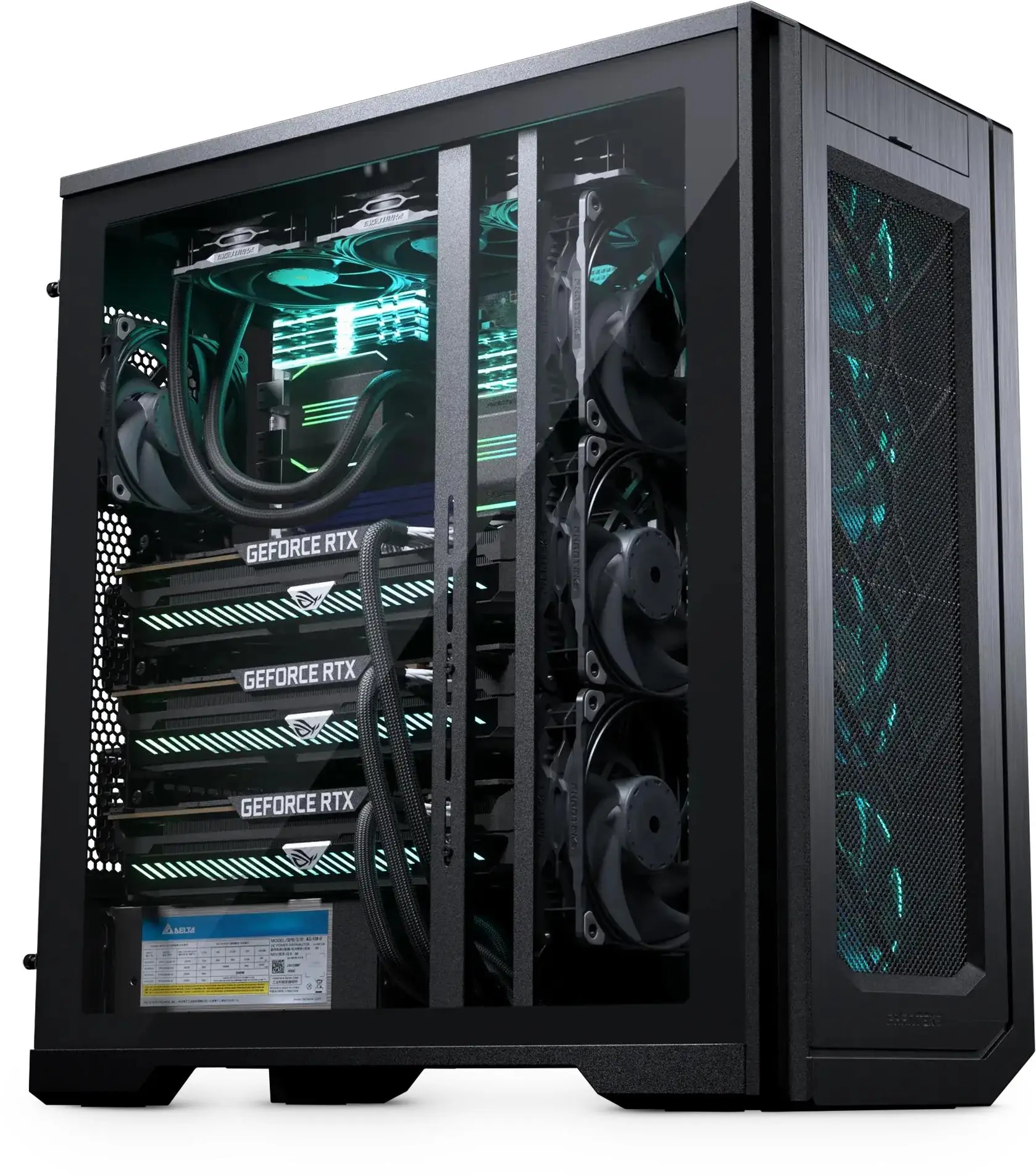

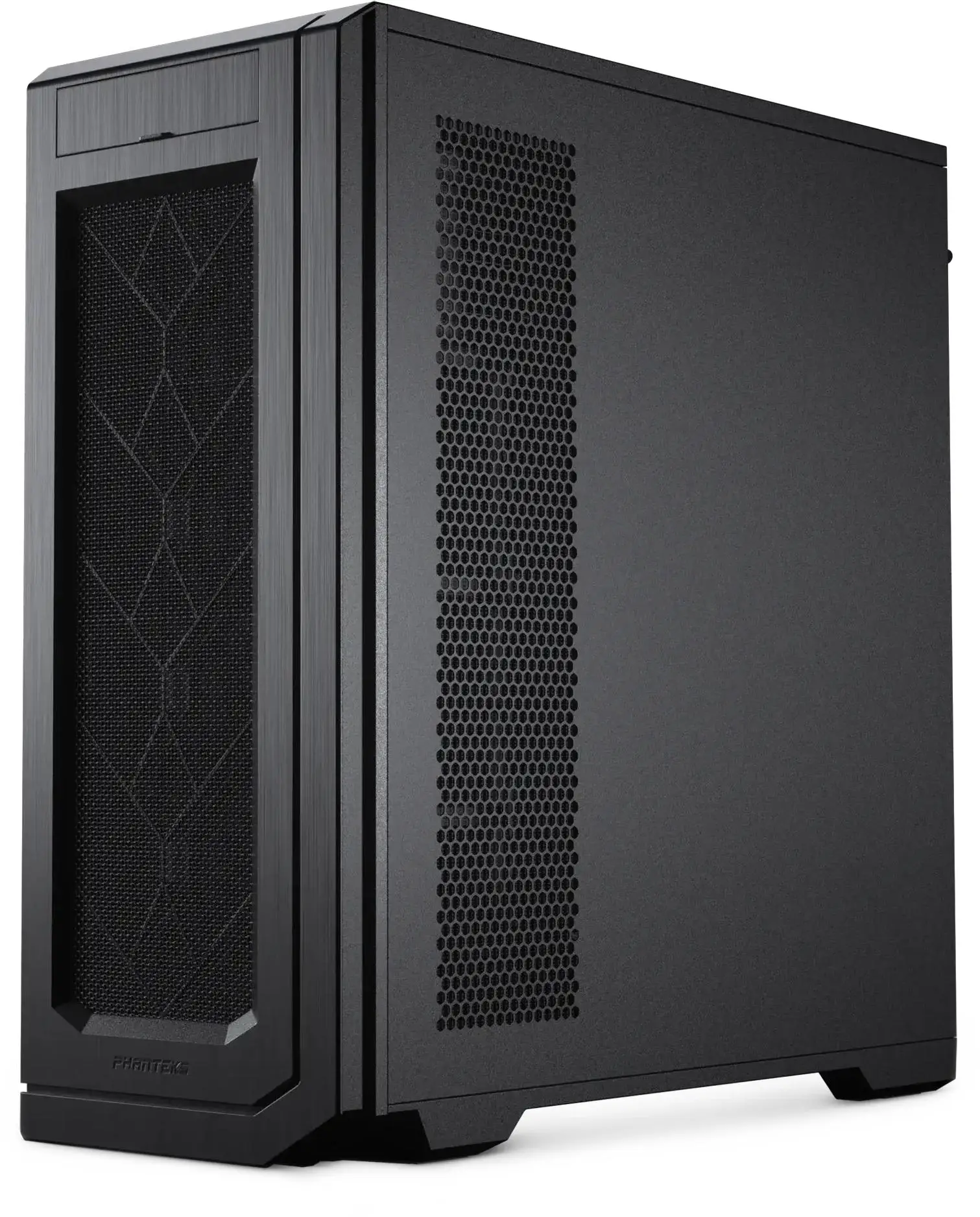

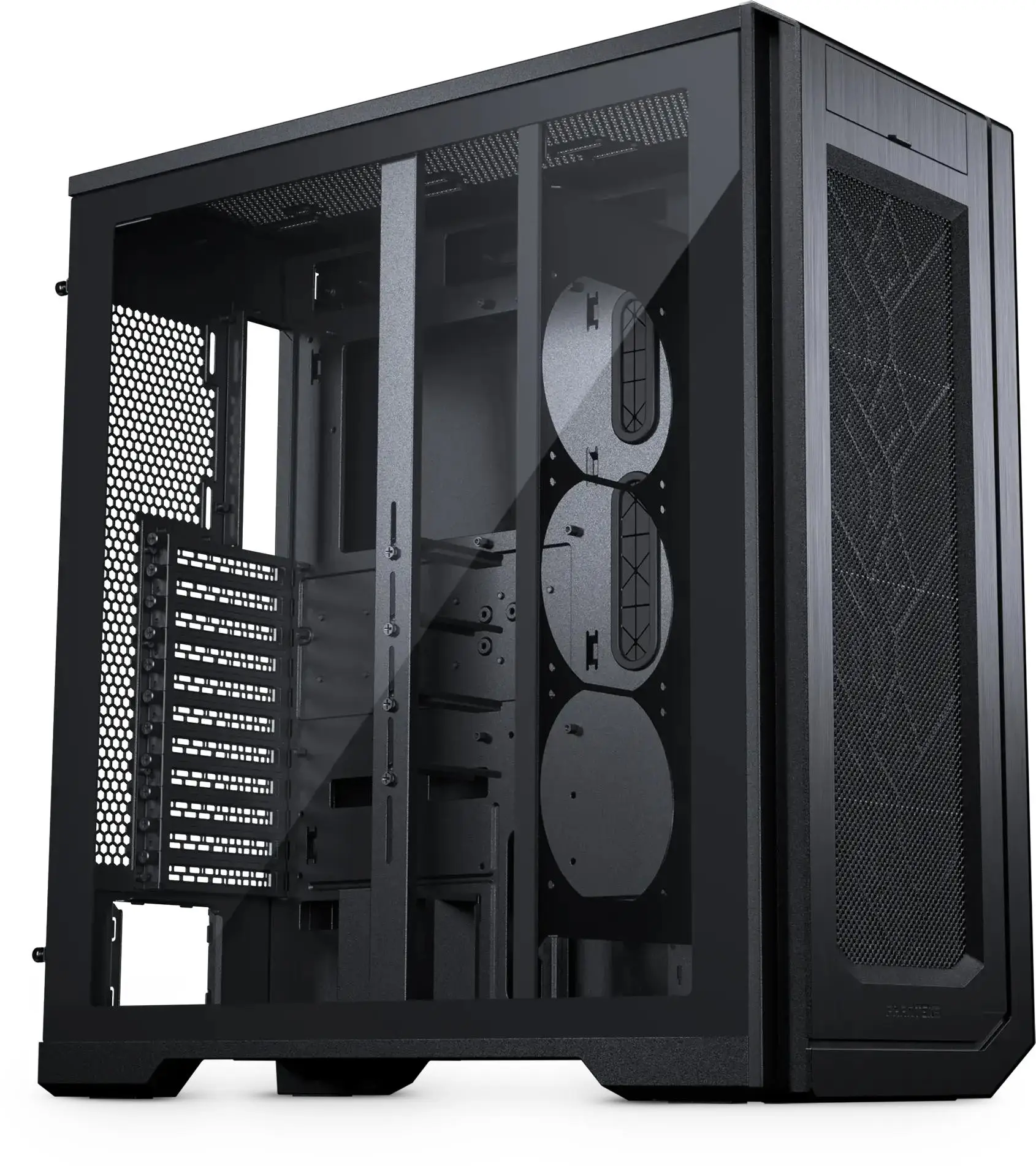

Casing Phanteks Enthoo Pro II Server Edition | High Performance Full Tower Tempered Glass – Satin Black

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Model No. : PH-ES620PTG_BK02

UPC Code : 886523302735

Case Dimensions : 240 x 580 x 560 mm | 9.45 x 22.83 x 22.05 in

Form Factor : Full Tower

Mainboard Support : XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Materials : Steel chassis | Tempered glass

Side Window : Yes

PCI Slots : 11

Vertical GPU Support : 3-slots

Riser Cable sold separately

Internal 2.5″ Bay : 11

Internal 3.5″ Bay : 10 | 4 Included

+ 3x 2.5″ SSD

Front I/O :

1x USB-C GEN 2

4x USB 3.0

Microphone | Headphone Combo

Reset Button

Power Button

Total Fans

120 mm | 140 mm : 15x | 6x

Top : 3x | 3x

Front : 4x | 3x

Radiators

Front : Max. 480 | 420

Clearance

CPU Cooler

Height : 195 mm | 7.67 in

GPU

Length : 503 mm | 19.95 in

Mainboard

Height x Width : Max. 375 x 330 mm | 14.76 x 12.99 in

Top Radiator

Length x Width : 120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height)

Front Radiator

Length x Width : 142 x 475 mm | 5.59 x 18.70 in

Side Radiator

Length x Width x Height : 134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in

Scope of Delivery :

1x Enthoo Pro II Server Edition chassis

1x Left side bracket

3x SSD bracket

4x HDD bracket

Accessory Box :

6x Zip ties

1x GPU support bracket

1x Server PSU bracket

1x  Phanteks case badge

Screws :

18x Mainboard | SSD screws

5x Power supply screws

12x Fan screws

1x Motherboard stand-off

2x HDD cage screws
