Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Masa garansi 3 tahun

Specification :

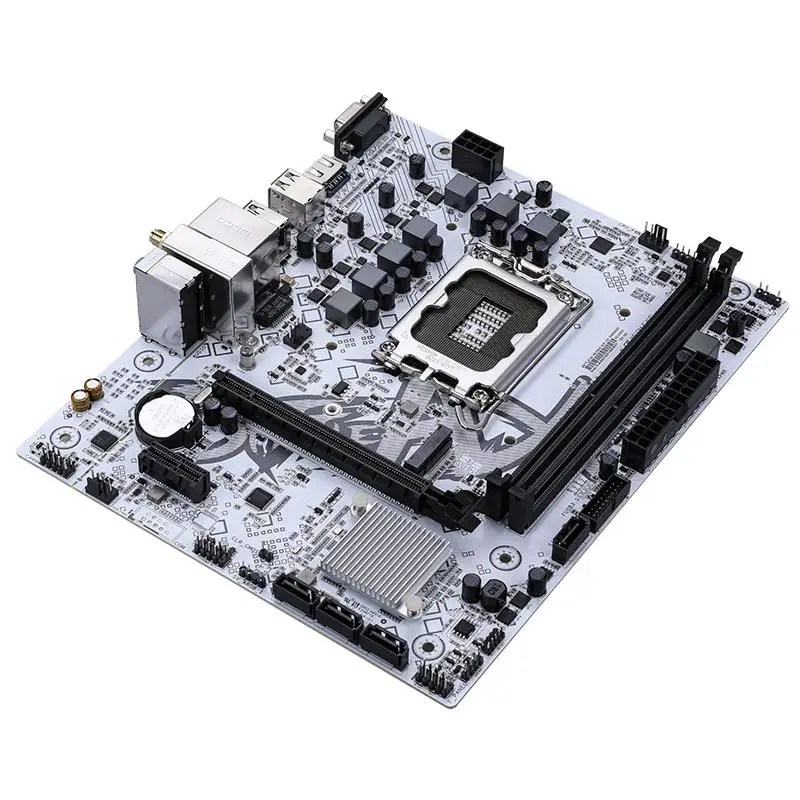

Product Model : BATTLE-AX H610M-E WIFI V21

Product Series : Tomahawk series

Chipset : Intel H610

CPU support :

Supports 14th, 13th and 12th generation Intel Core, Pentium and Celeron processors adapted to the motherboard’s LGA 1700 slot

Memory support :

Provides 2 DDR4 memory slots, which can support up to 64 GB of memory capacity (up to 32 GB capacity supported in a single slot)

-Support DDR4-3200/2933/2666/2400MHz memory

-Support dual-channel memory technology

Storage Interface :

Supports 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces

-M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)

Extension Interface :

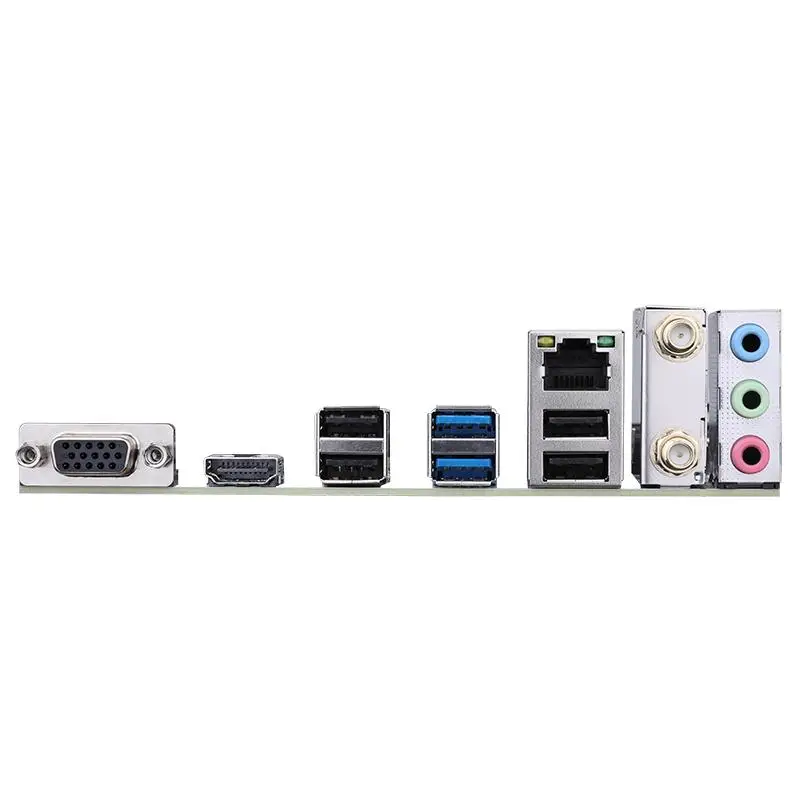

Post-I/O interface:

-4 USB 2.0 interfaces

-2 USB 3.2 Gen 1 Type-A interfaces

-1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution

-1 VGA interface

-1 Gigabit network interface

-2 Wi-Fi 6 antenna interfaces

-3 audio interfaces (audio in/audio out/microphone)

Onboard device interface:

-1 CPU fan pin

-2 system fan pins

-1 USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

-1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-2 5V 3-pin ARGB pins

-1 12V 4-pin RGB pin

-1 front audio pin

-1 front panel pin

-1 speaker pin

-1 clear CMOS jumper

-1 BIOS burner pin

Expansion slot :

1 PCIe 4.0 x16 slot

1 PCIe 3.0 x1 slot

System BIOS :

128M UEFI, supports multiple languages

Power Management :
Support S3, S4, network S5 wake up, support timed power on, incoming power on

Hardware monitoring :

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and voltage monitoring of each group

Onboard network card :

RTL8111H Gigabit Network Card, AX101 WiFi 6 Wireless Network Card, Bluetooth 5.2

Onboard sound card :

Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels

Motherboard Specifications :

M-ATX plate type

225mm x 185mm
