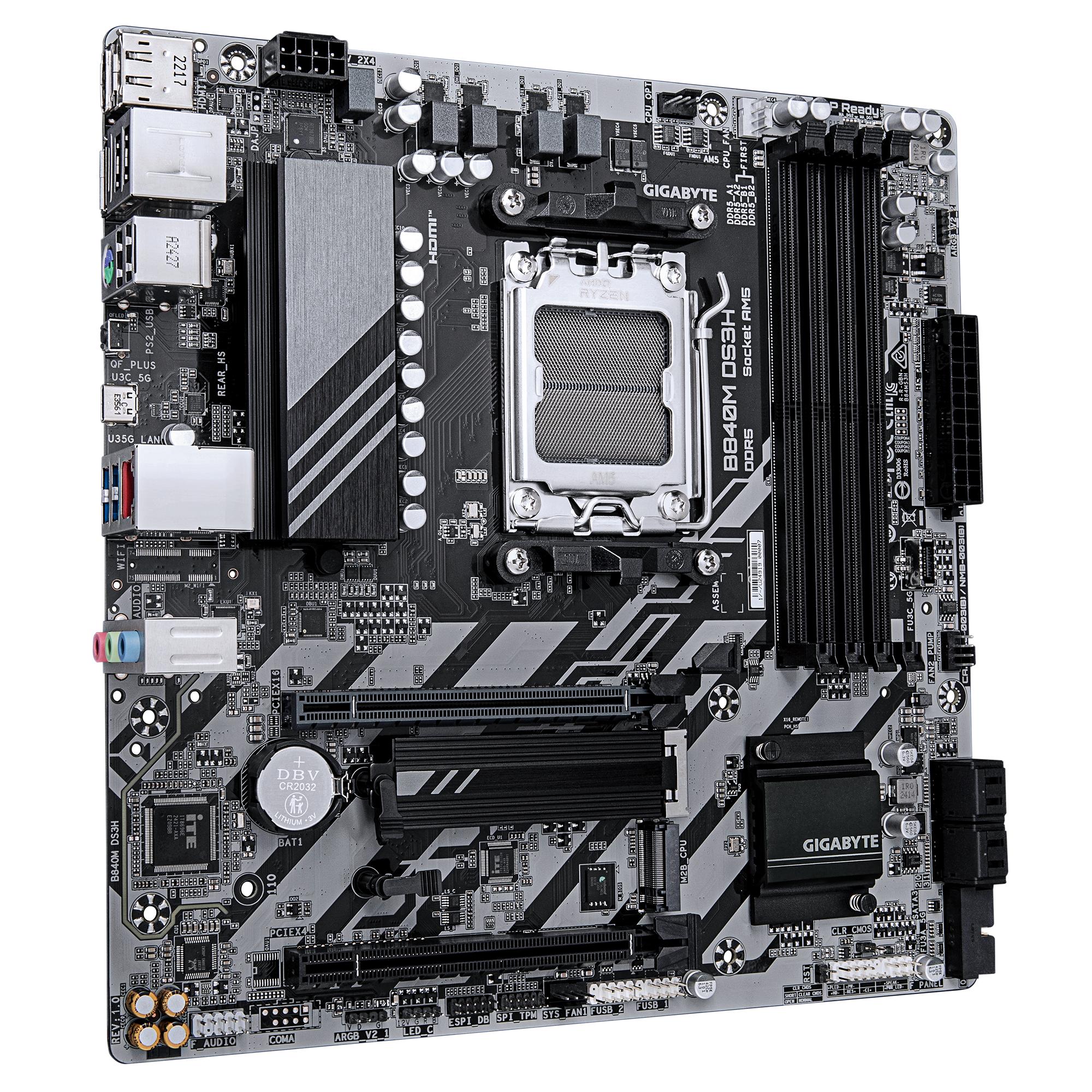

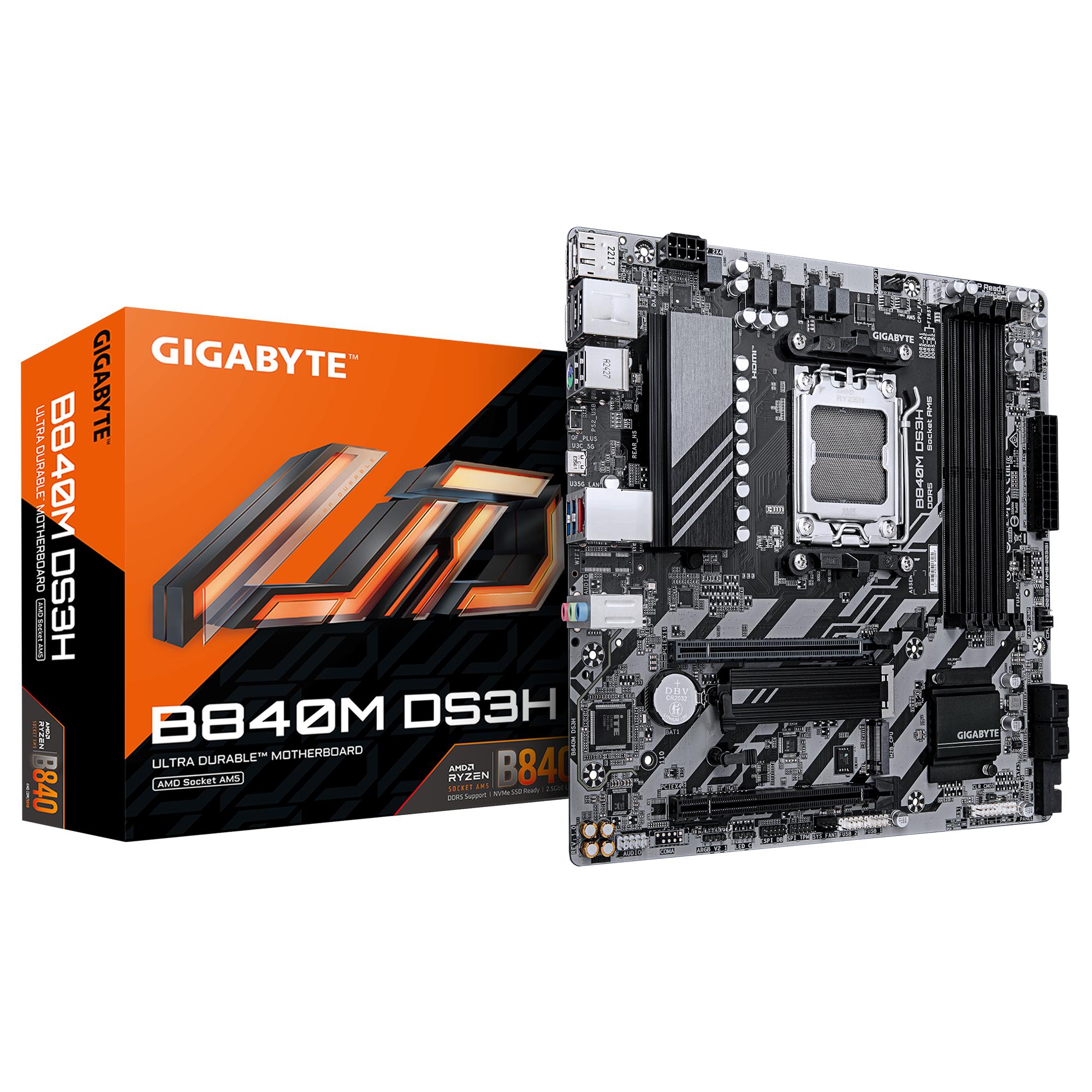

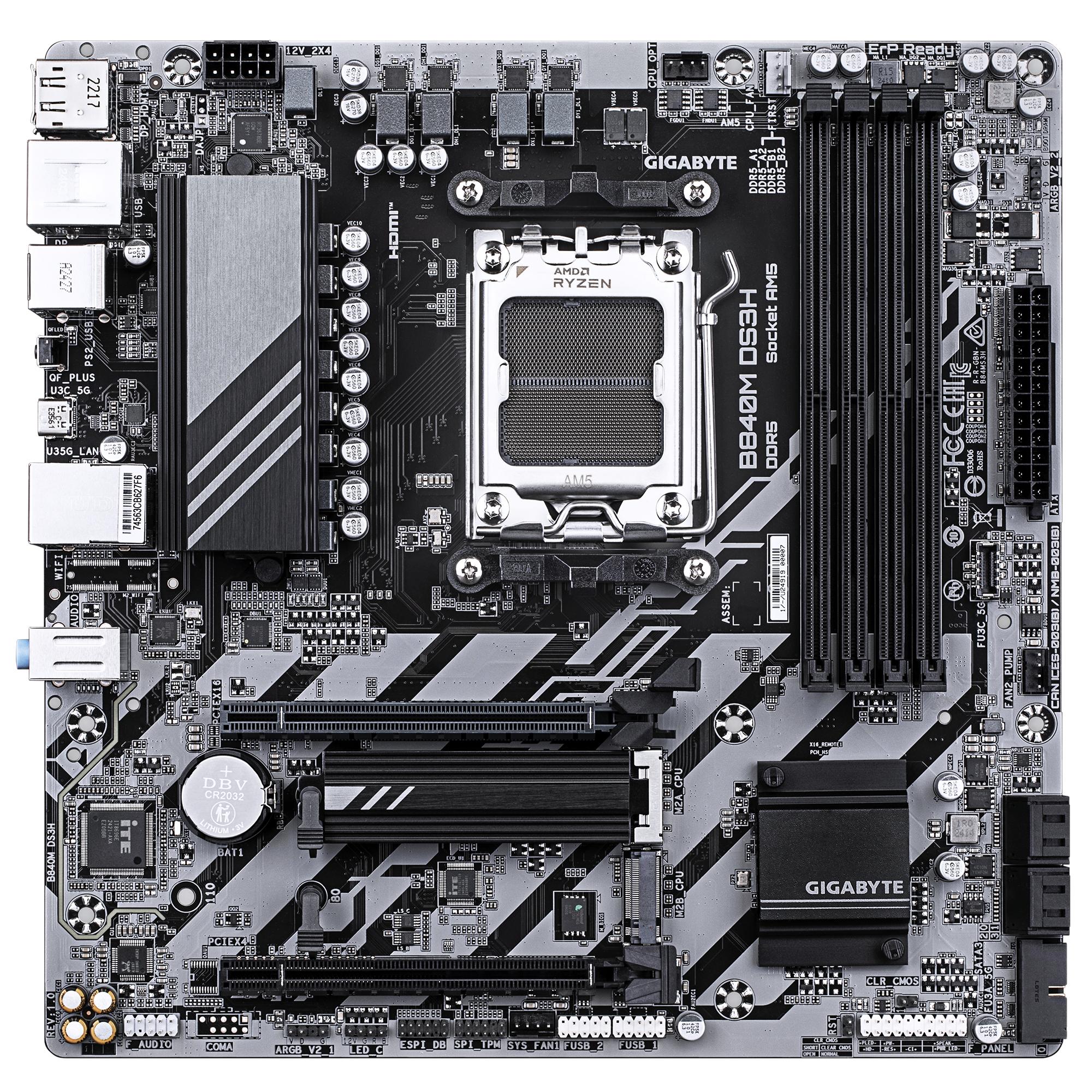

GIGABYTE B840M DS3H (AM5, AMD B840, DDR5)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Model Name : B840M DS3H

CPU :

AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/
AMD Ryzen 8000 Series Processors/
AMD Ryzen 7000 Series Processors

Chipset : AMD B840

Memory : 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics :

Integrated Graphics Processor with AMD Radeon Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
– 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version.

Audio :
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN : Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots :

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage Interface :

– 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
– 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
– 4 x SATA 6Gb/s connectors
Bundled Software :
– Norton Internet Security (OEM version)
– LAN bandwidth management software
Operating System :

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor :

Micro ATX Form Factor; 24.4cm x 24.4cm
