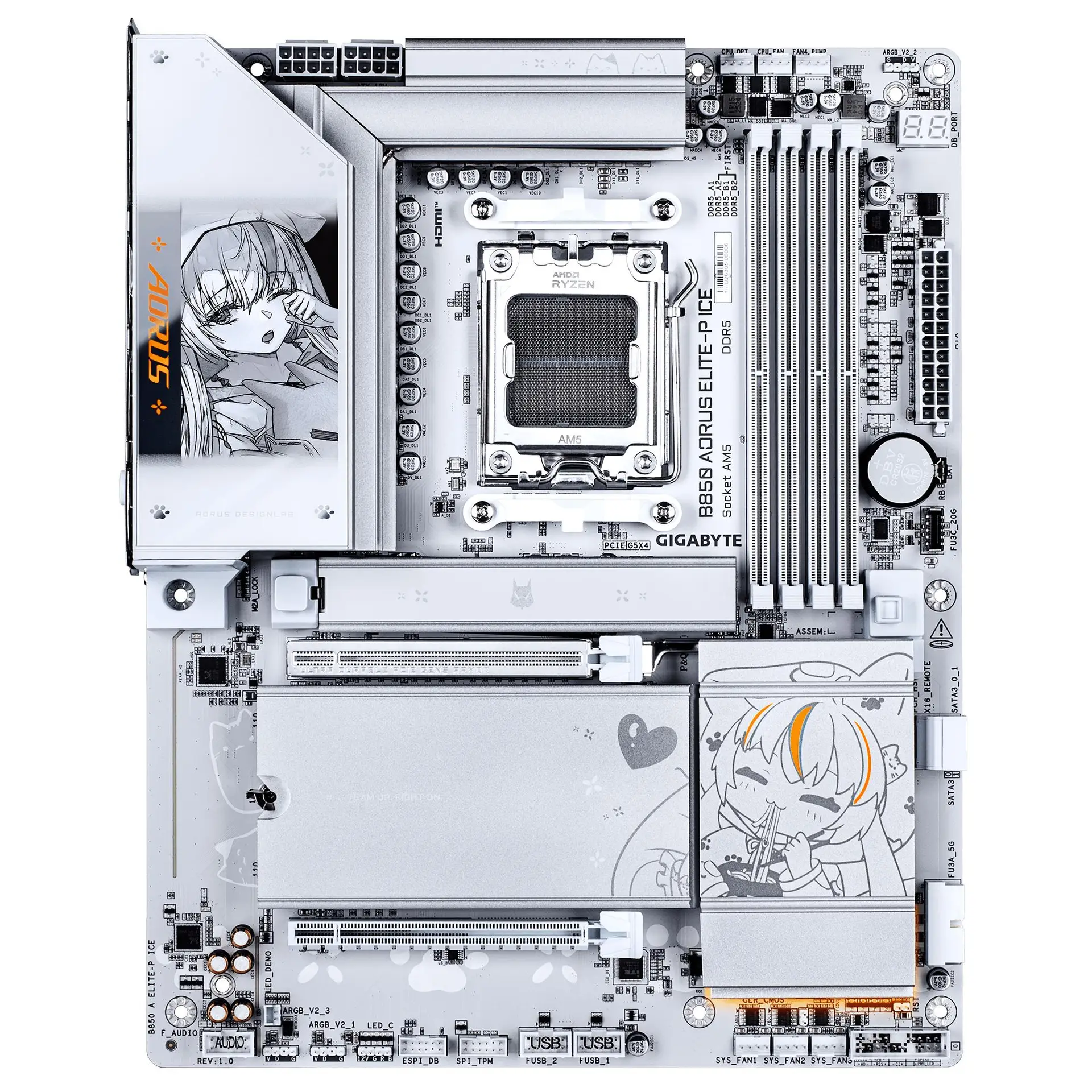

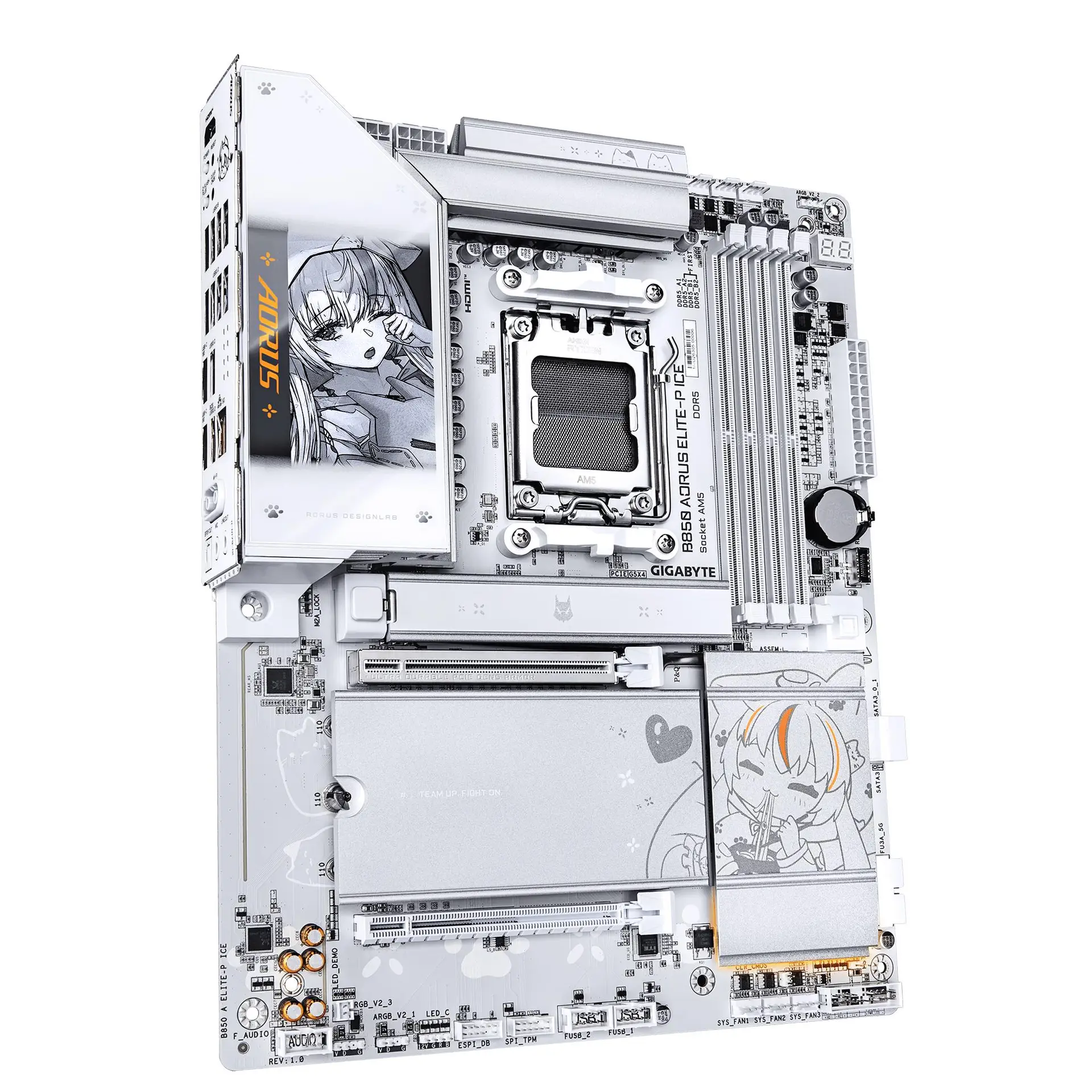

GIGABYTE B850 AORUS ELITE-P ICE (Socket AM5, B850, DDR5, Type C)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

CPU :

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

Chipset : AMD B850

Memory :

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics :

Integrated Graphics Processor with AMD Radeon Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Audio :

Realtek ALC1220 CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN : Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module :

Realtek Wi-Fi 7 RTL8922AE

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.4

– Support for 11be 160MHz wireless standard

Expansion Slots :

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface :

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

2 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0 and RAID 1 support for SATA storage devices

USB :

CPU:

– 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU+USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back panel

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 2 x USB 3.2 Gen 1 ports available through the internal USB header

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors :

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper

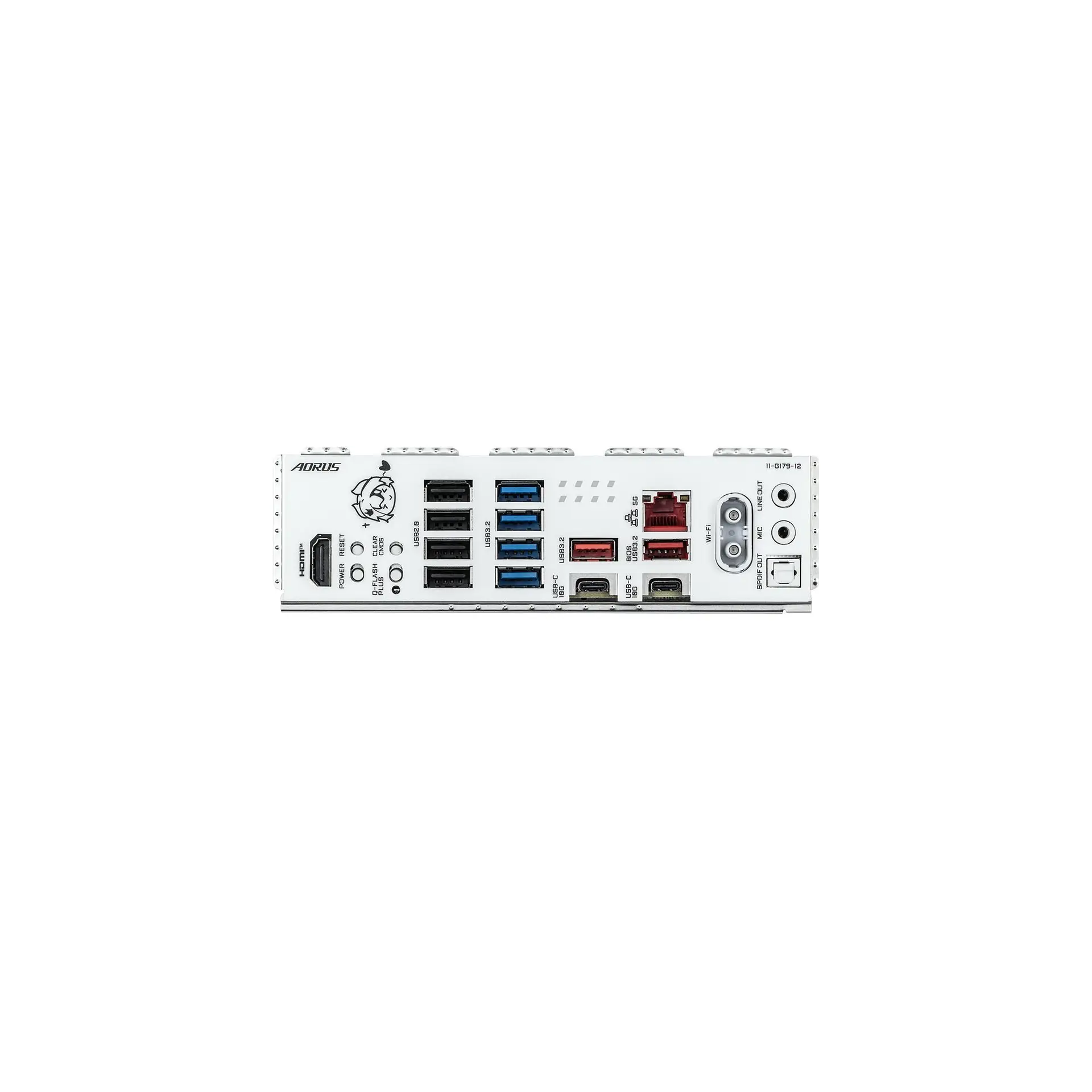

Back Panel Connectors :

1 x HDMI port (Note)

1 x reset button

1 x power button

1 x Clear CMOS button

1 x Q-Flash Plus button

4 x USB 2.0/1.1 ports

4 x USB 3.2 Gen 1 ports

2 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB Type-C ports, with USB 3.2 Gen 2 support

1 x RJ-45 port

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector
