Specification :

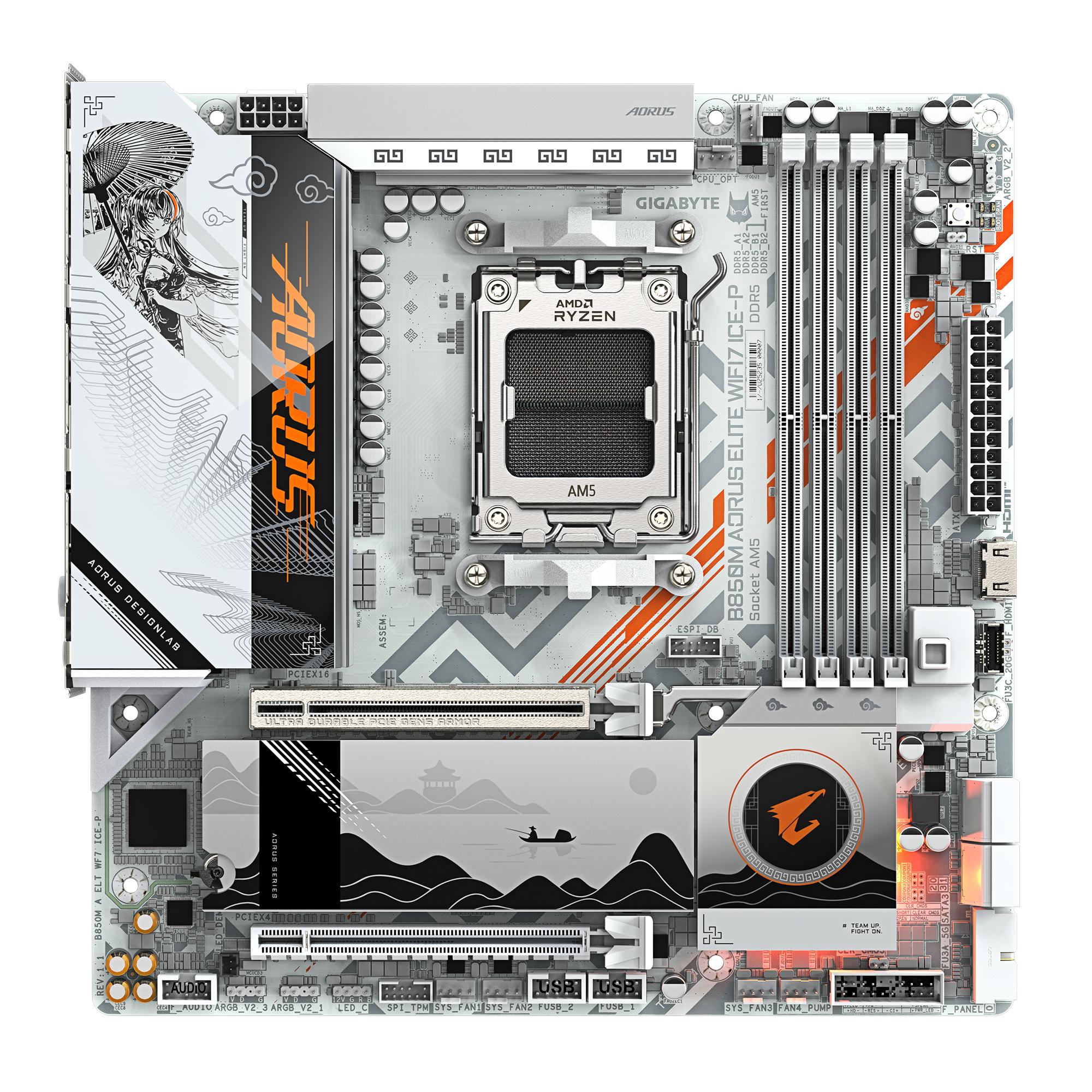

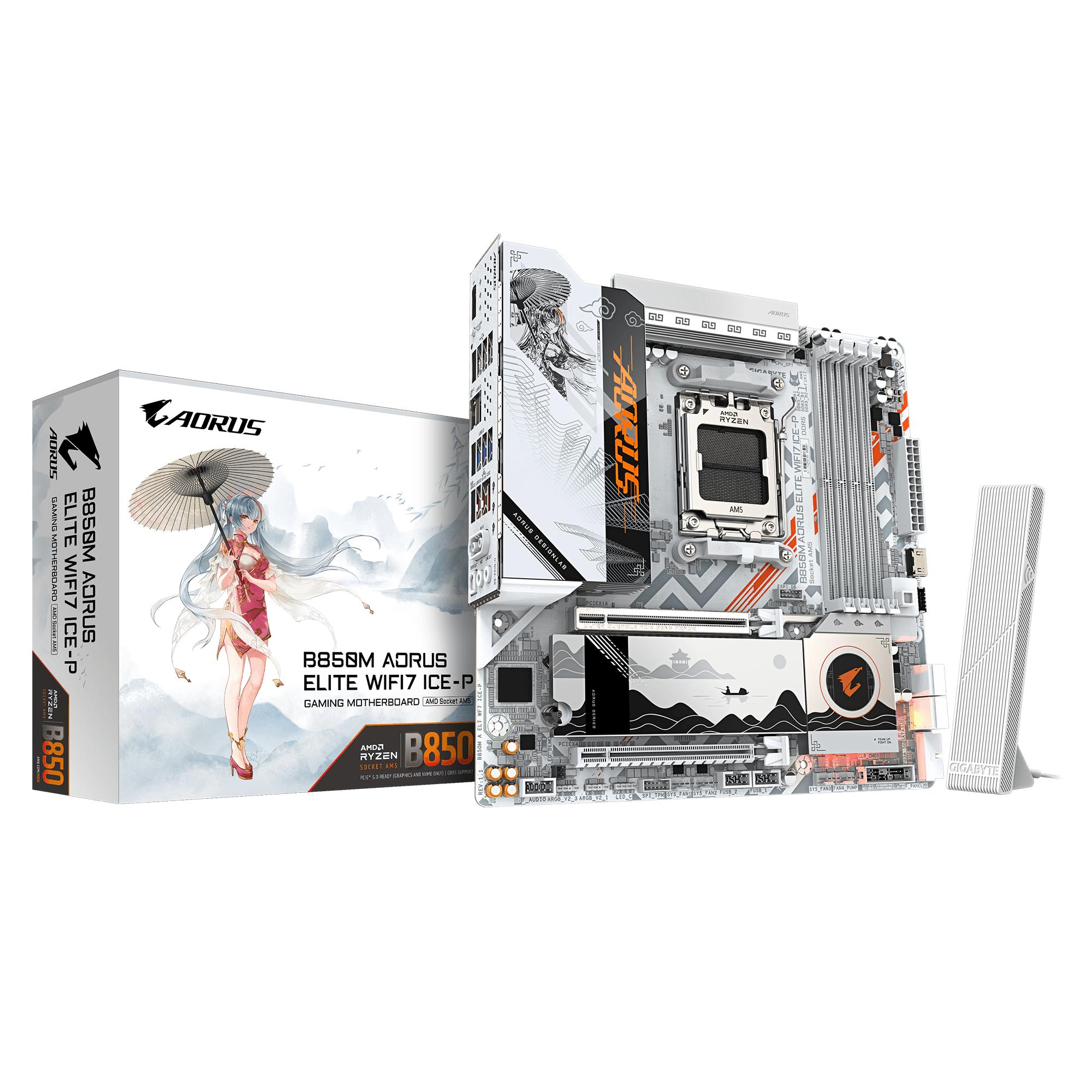

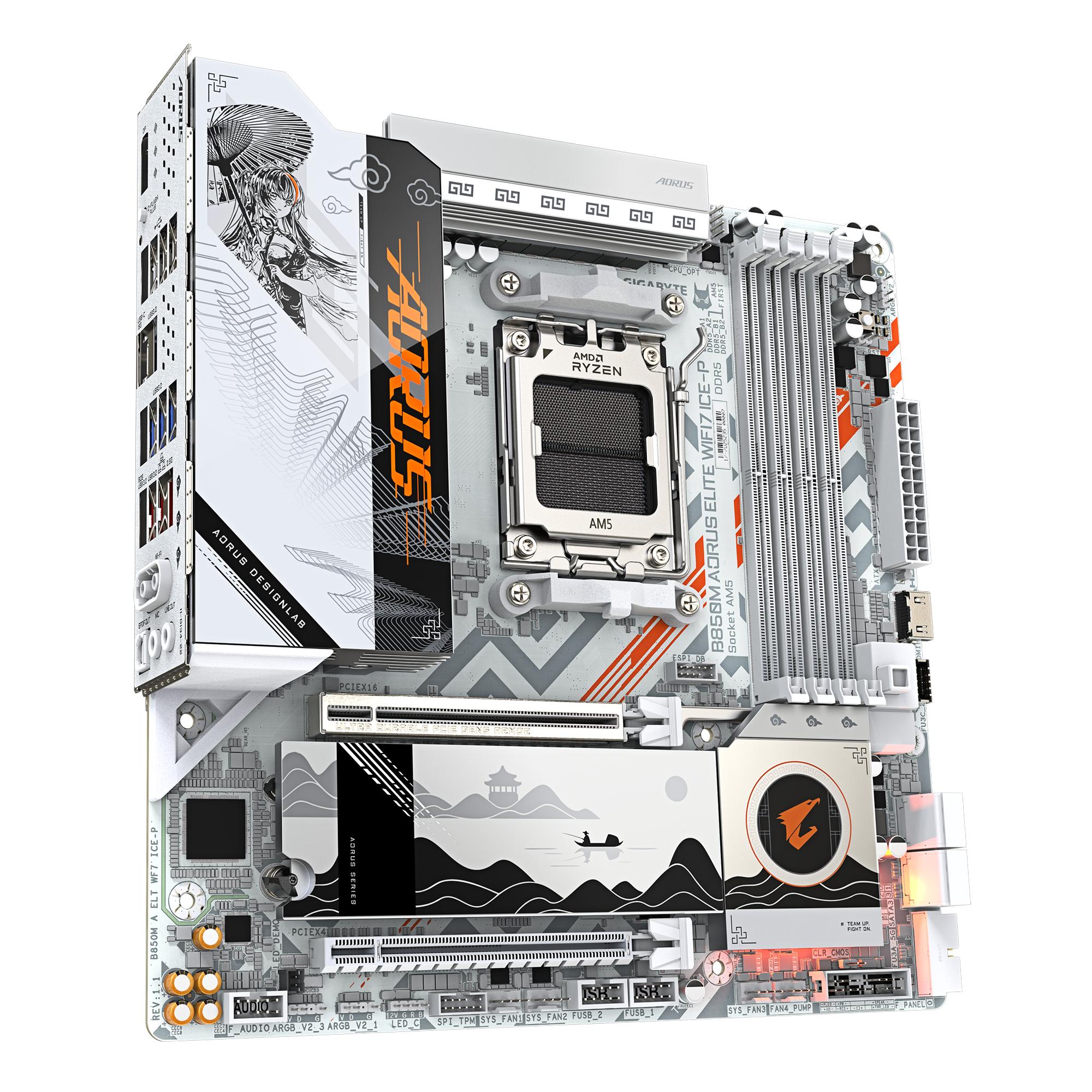

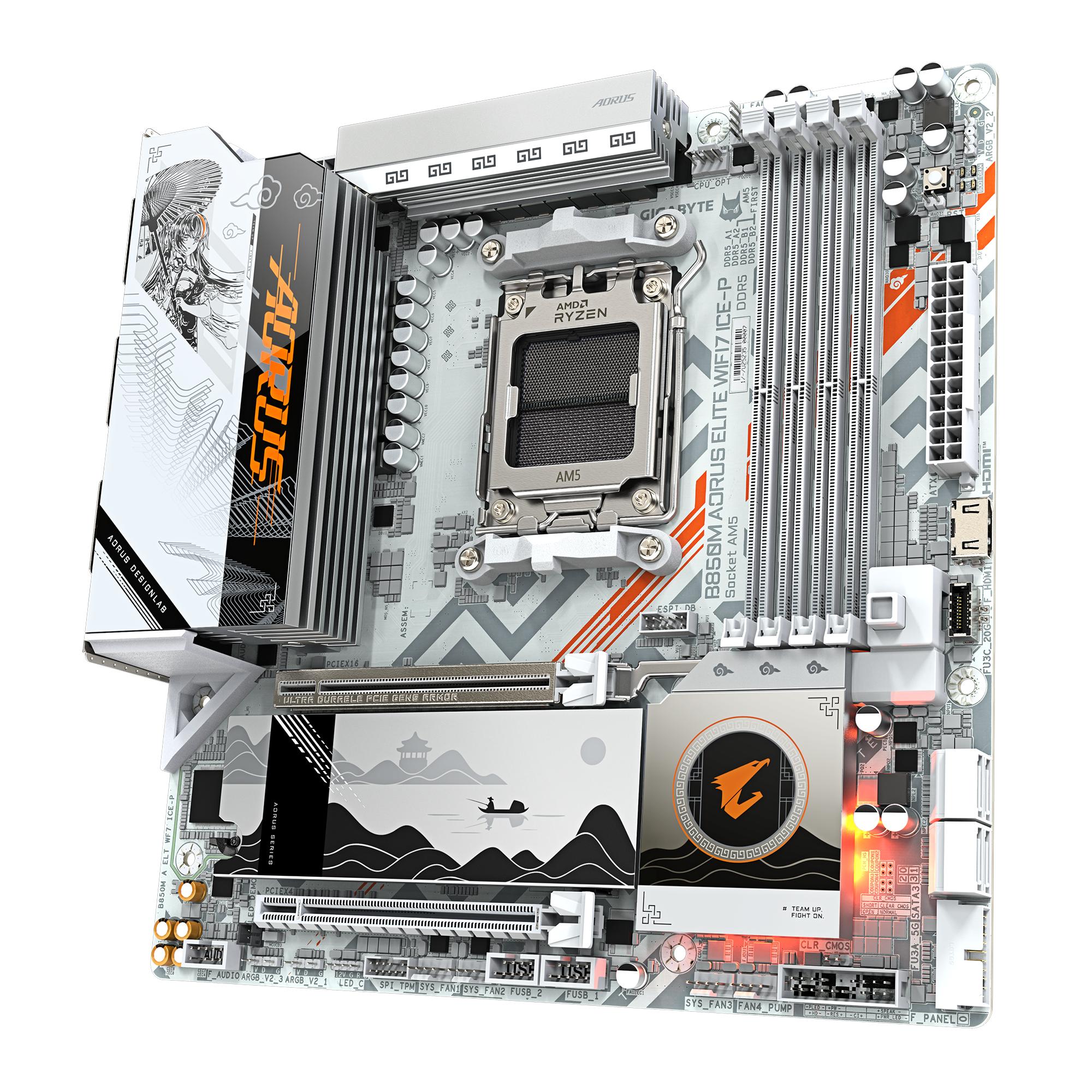

Model Name : B850M A ELITE WF7 ICE-P

CPU :

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

Chipset : AMD B850

Memory : 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics :

Integrated Graphics Processor with AMD Radeon Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

Audio : Realtek ALC1220 CODEC

LAN : Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module :

Realtek Wi-Fi 7 RTL8922AE
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard

Storage Interface :

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
4 x SATA 6Gb/s connectors

USB :

CPU:

– 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU+USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports available through the internal USB headers

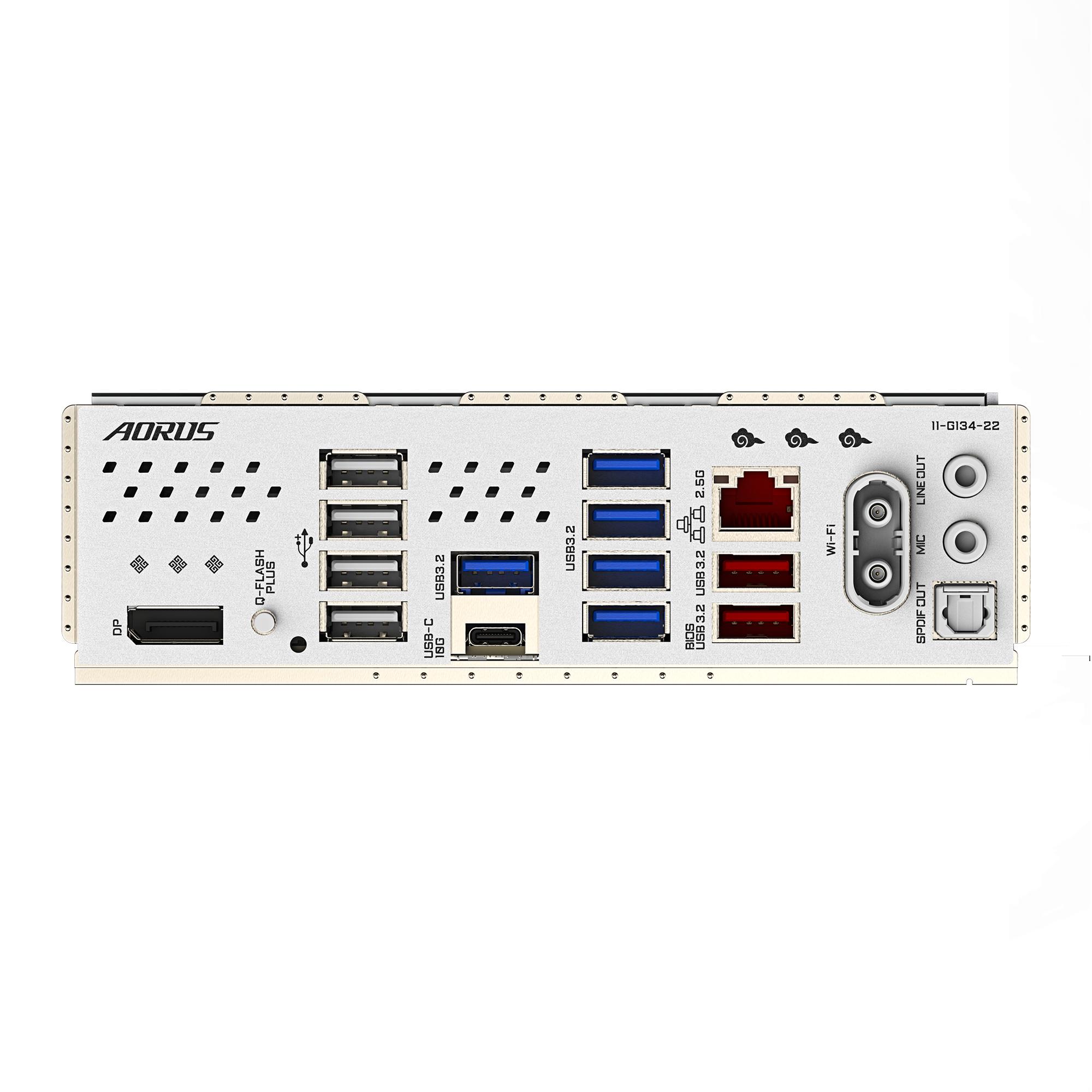

Back Panel Connectors :

1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm
