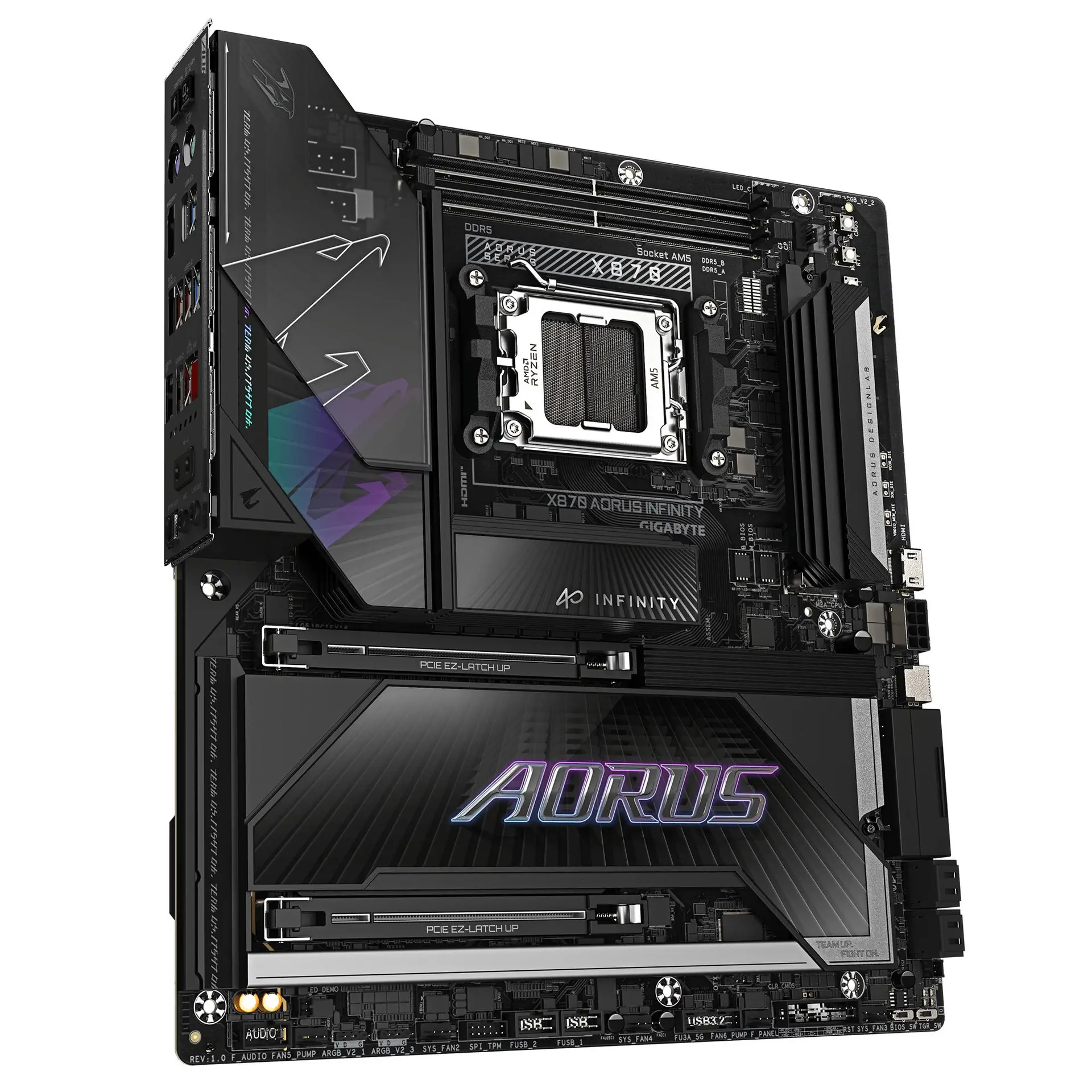

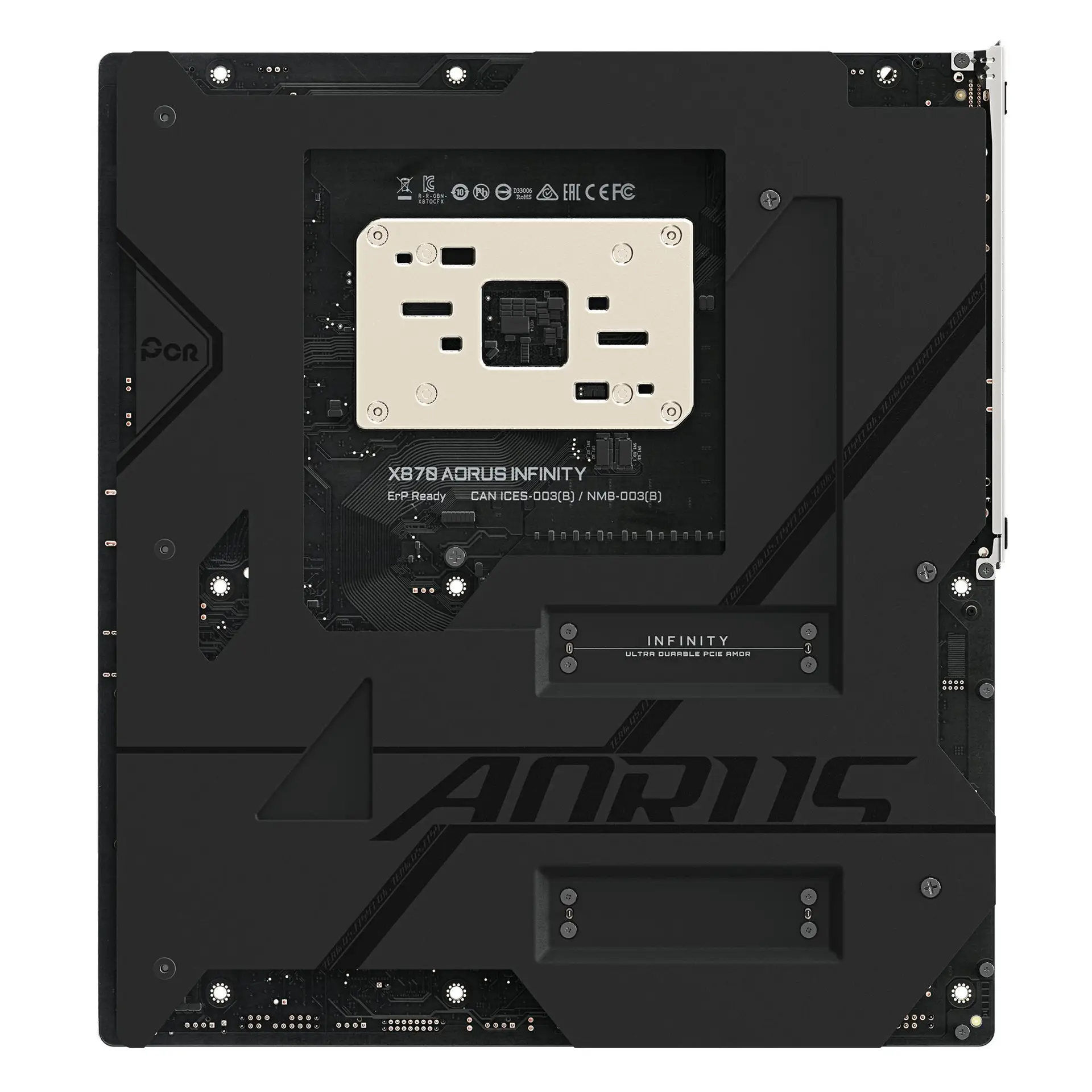

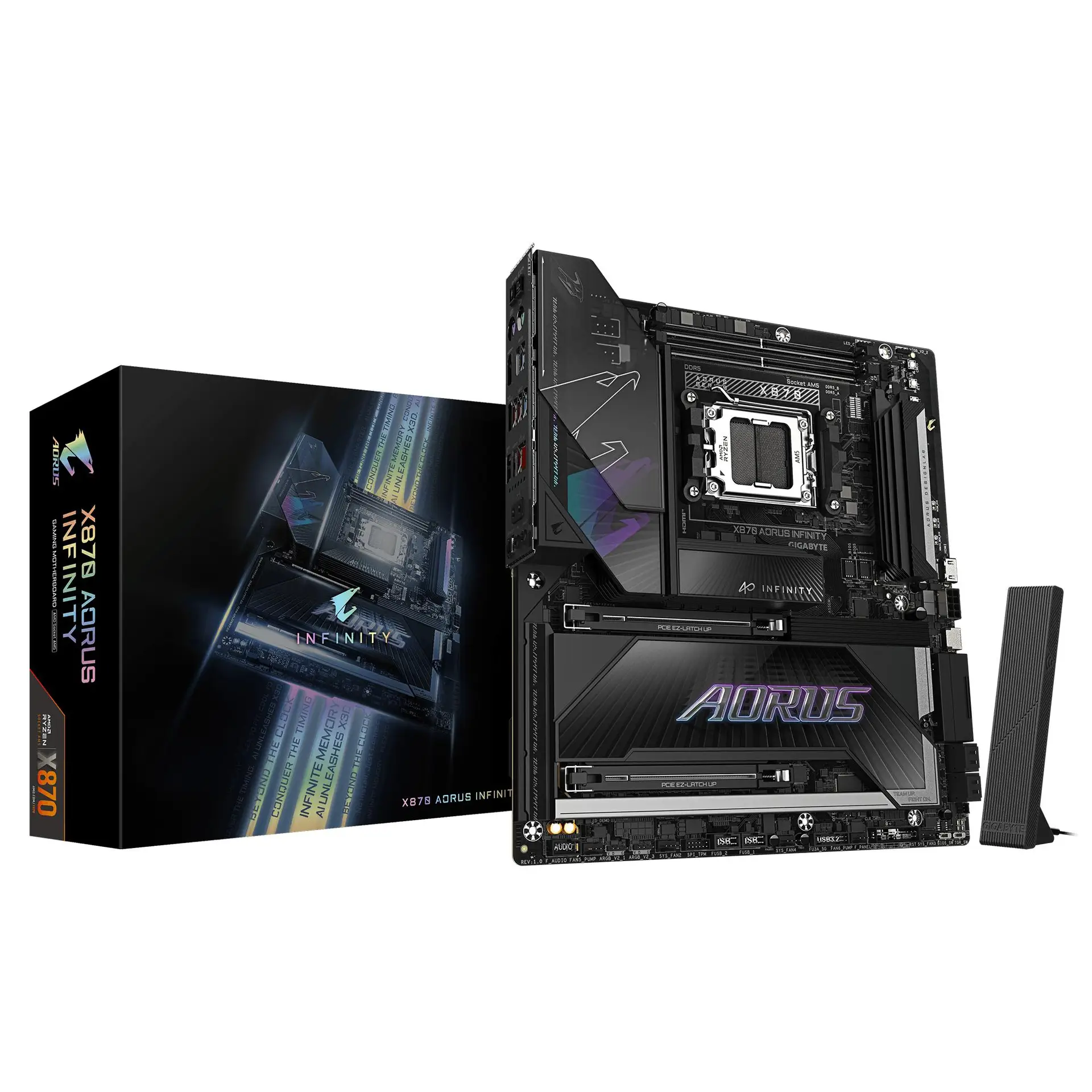

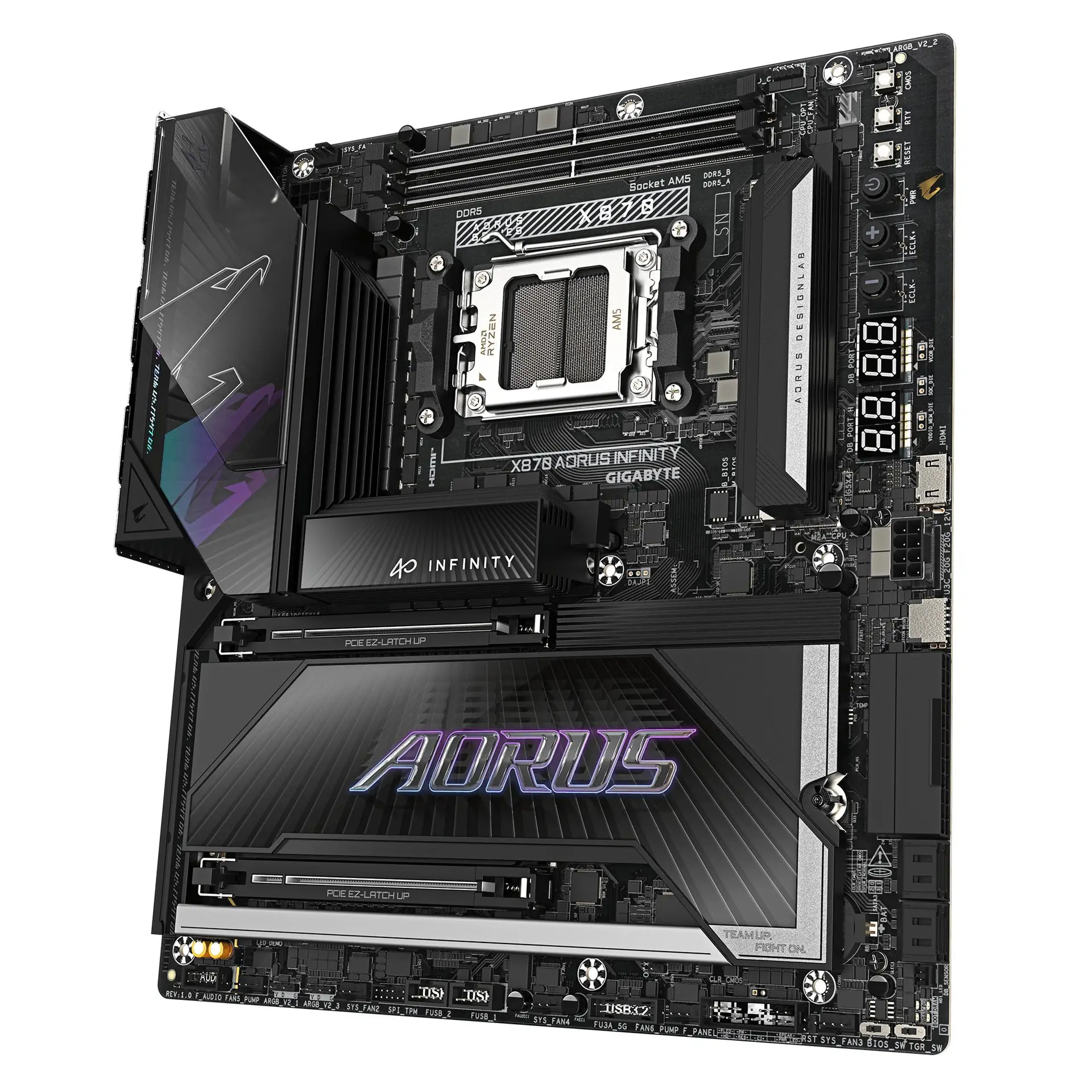

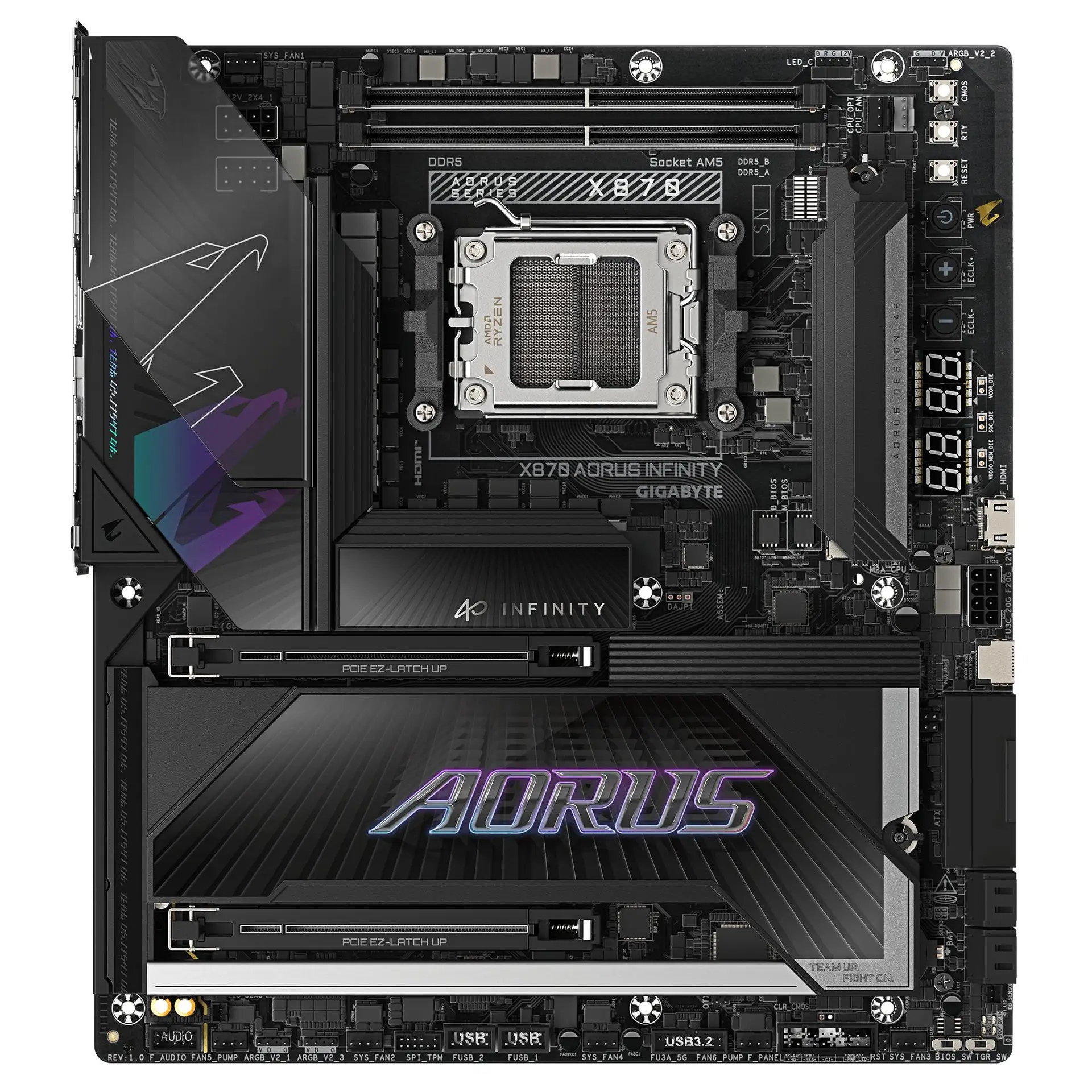

GIGABYTE X870 AORUS INFINITY (Socket AM5, DDR5, Type C, WiFi7)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

CPU :

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

Chipset : AMD X870

Memory :

Support for DDR5 11400(OC)**/ 9600(OC)*/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics :

Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:

– 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz

* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

* Support for HDMI 1.4 version.

Audio :

Realtek ALC1220 CODEC

* The back panel line out jack supports DSD audio.

DTS :X Ultra

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN : Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module :

Qualcomm Wi-Fi 7 QCNCM865

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.4

– Support for 11be 320MHz wireless standard

Expansion Slots :

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Storage Interface :

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB :

CPU+ASMedia USB4 controller:

– 1 x USB4 USB Type-C port on the back panel

CPU:

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

– 2 x USB 3.2 Gen 1 ports available through the internal USB header

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors :

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x PCIe power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x power button (PWR)

1 x reset button (RESET)

1 x Clear CMOS button (CMOS)

1 x Cold Reset button (RTY)

1 x CPU Clock up button (ECLK+)

1 x CPU Clock down button (ECLK-)

1 x BIOS switch (BIOS_SW)

1 x OC Trigger switch (TGR_SW)

Voltage Measurement Points

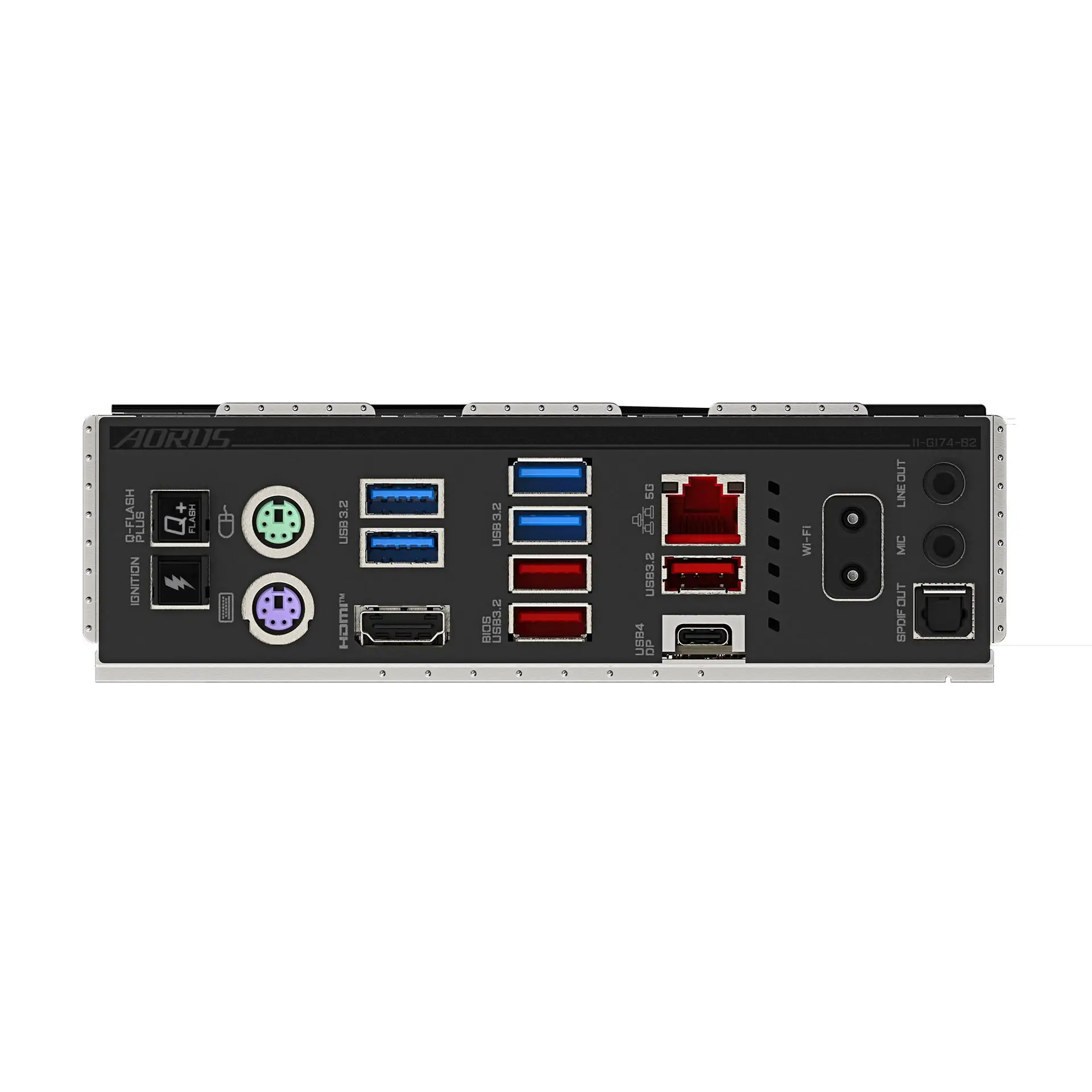

Back Panel Connectors :

1 x Q-Flash Plus button

1 x OC Ignition button

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port (Note)

4 x USB 3.2 Gen 1 ports

3 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB4 USB Type-C port (DisplayPort (Note))

1 x RJ-45 port

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

I/O Controller : iTE I/O Controller Chip

H/W Monitoring :

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Form Factor : E-ATX Form Factor; 30.5cm x 27.5cm
