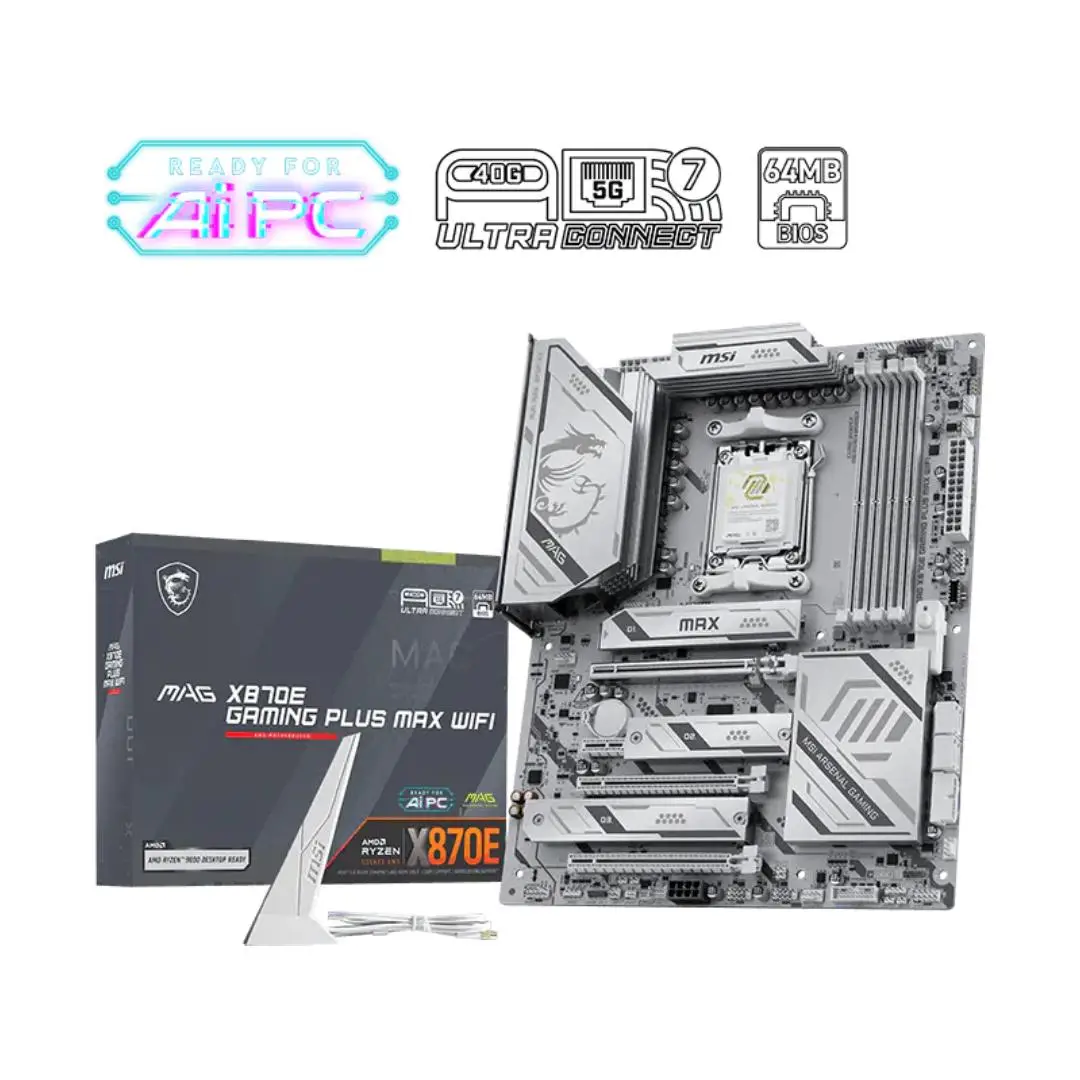

MSI MAG X870E GAMING PLUS MAX WIFI (Socket AM5, DDR5, Type C, WiFi7)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Chipset : AMD X870E

CPU : Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory : 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics :

1x HDMI

Support HDMI 2.1 TMDS, maximum resolution of 4K 60Hz

1x Type-C DisplayPort

USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz

Slot :

3x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

-Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

-Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

-Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio :

Realtek ALC897

7.1-Channel High Definition Audio

Storage :

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

4x SATA 6G

M.2_1 slot (From CPU)

-Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

-Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M.2_2 slot (From CPU)

-Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

M.2_3 slot (From CPU)

-Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

RAID :

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB :

4x USB 2.0 (Rear)

6x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

1x USB 40Gbps Type C (Rear)

LAN : 1x Realtek 8126 5G LAN

Internal IO :

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

2x Direct OC Jumper (JBCLK)

6x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH :

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
