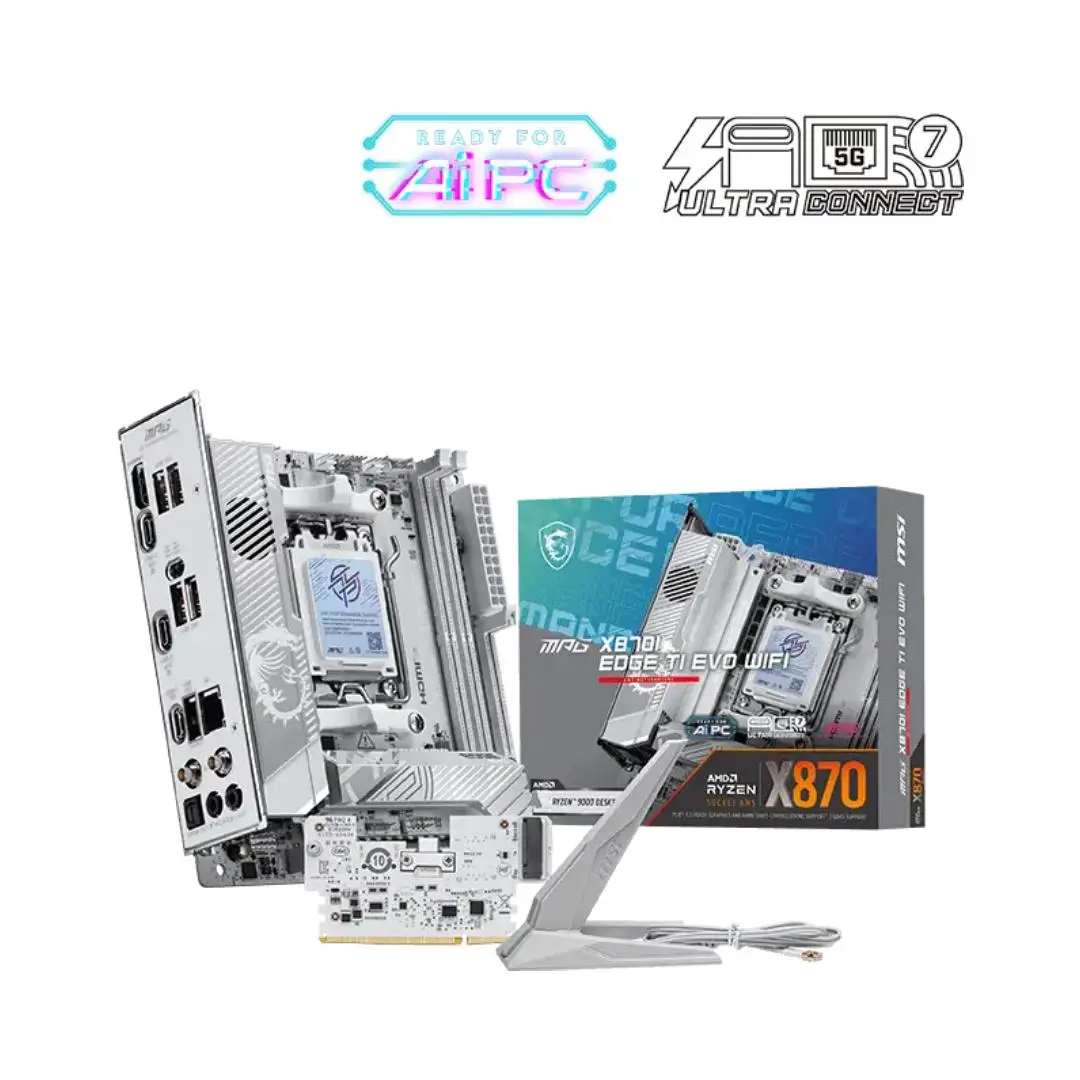

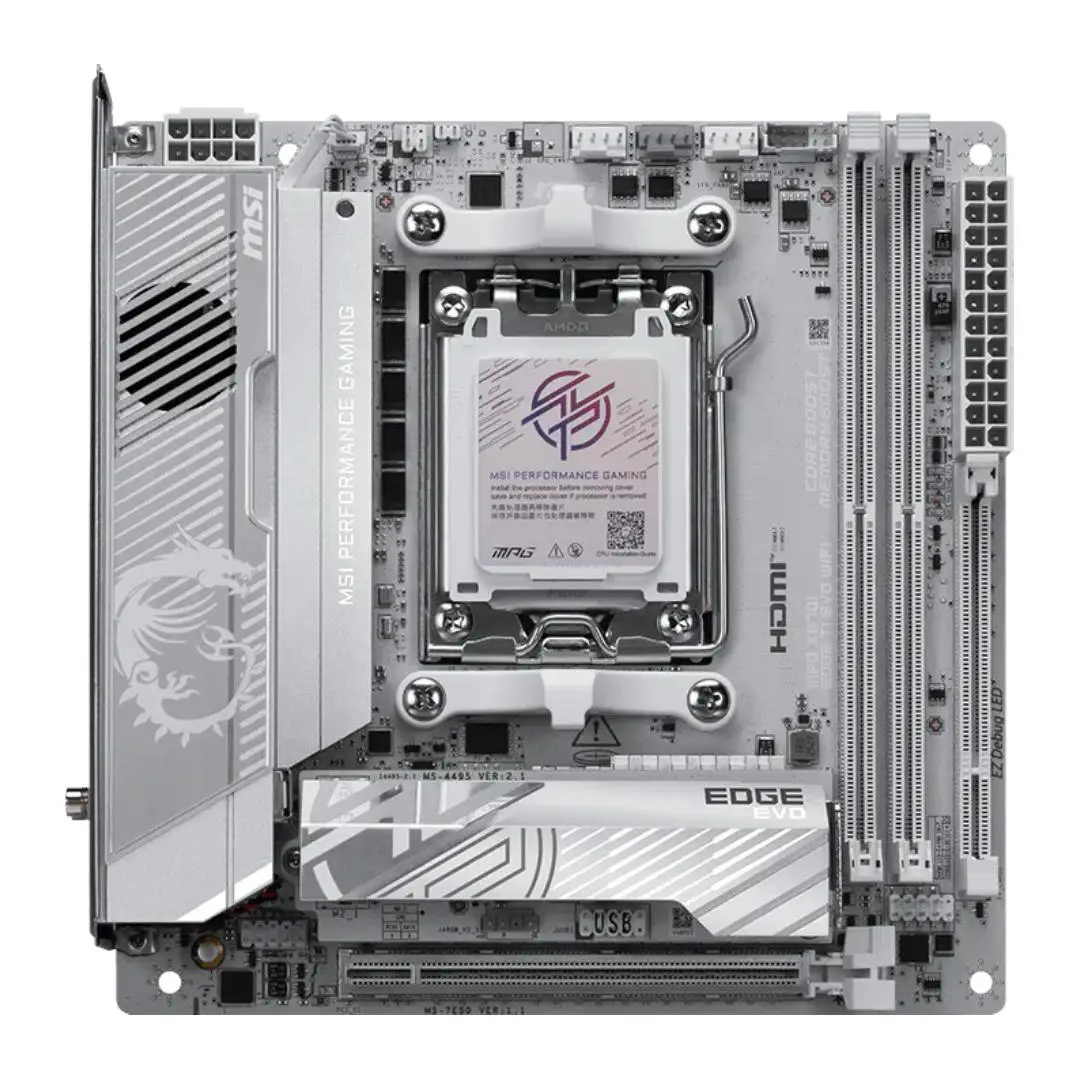

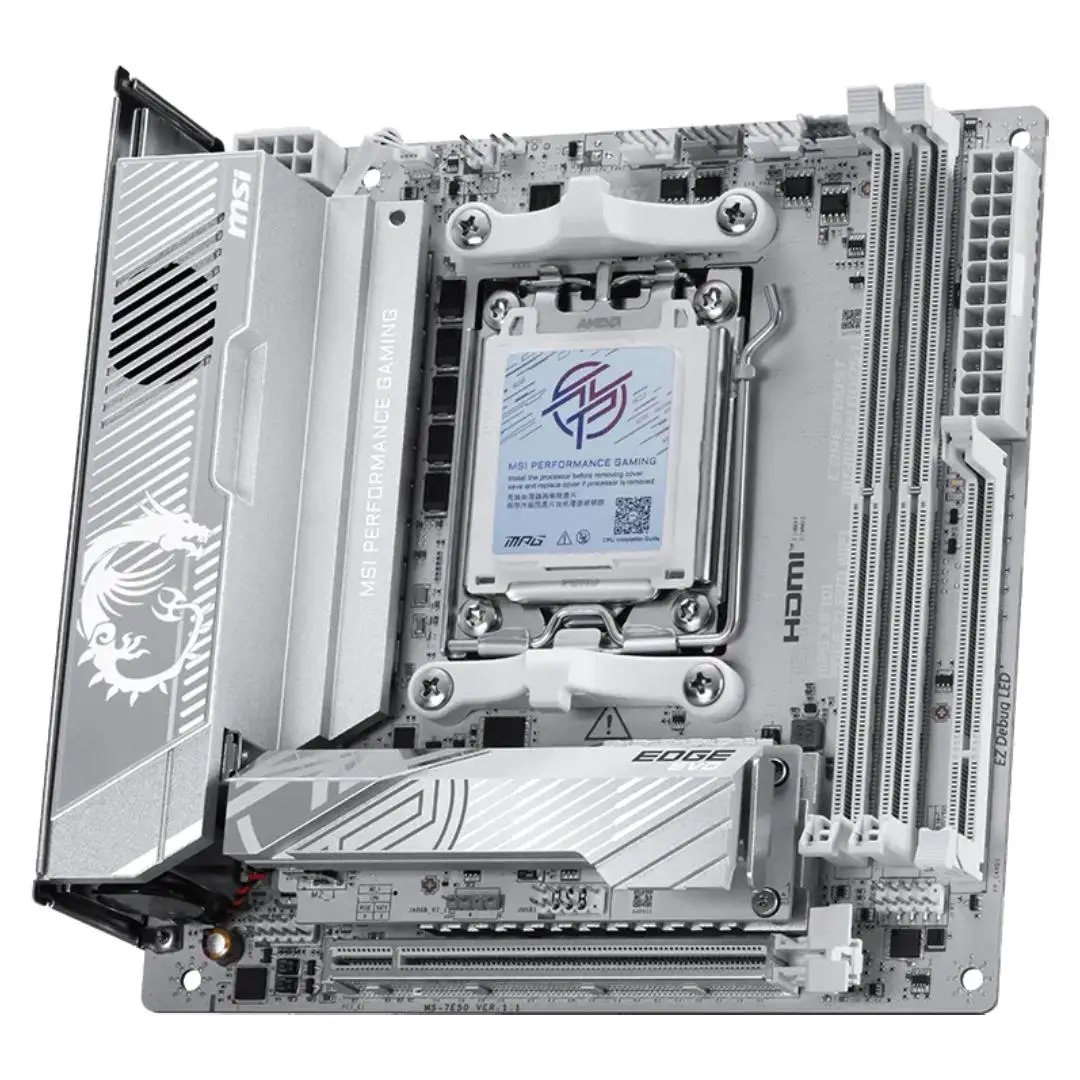

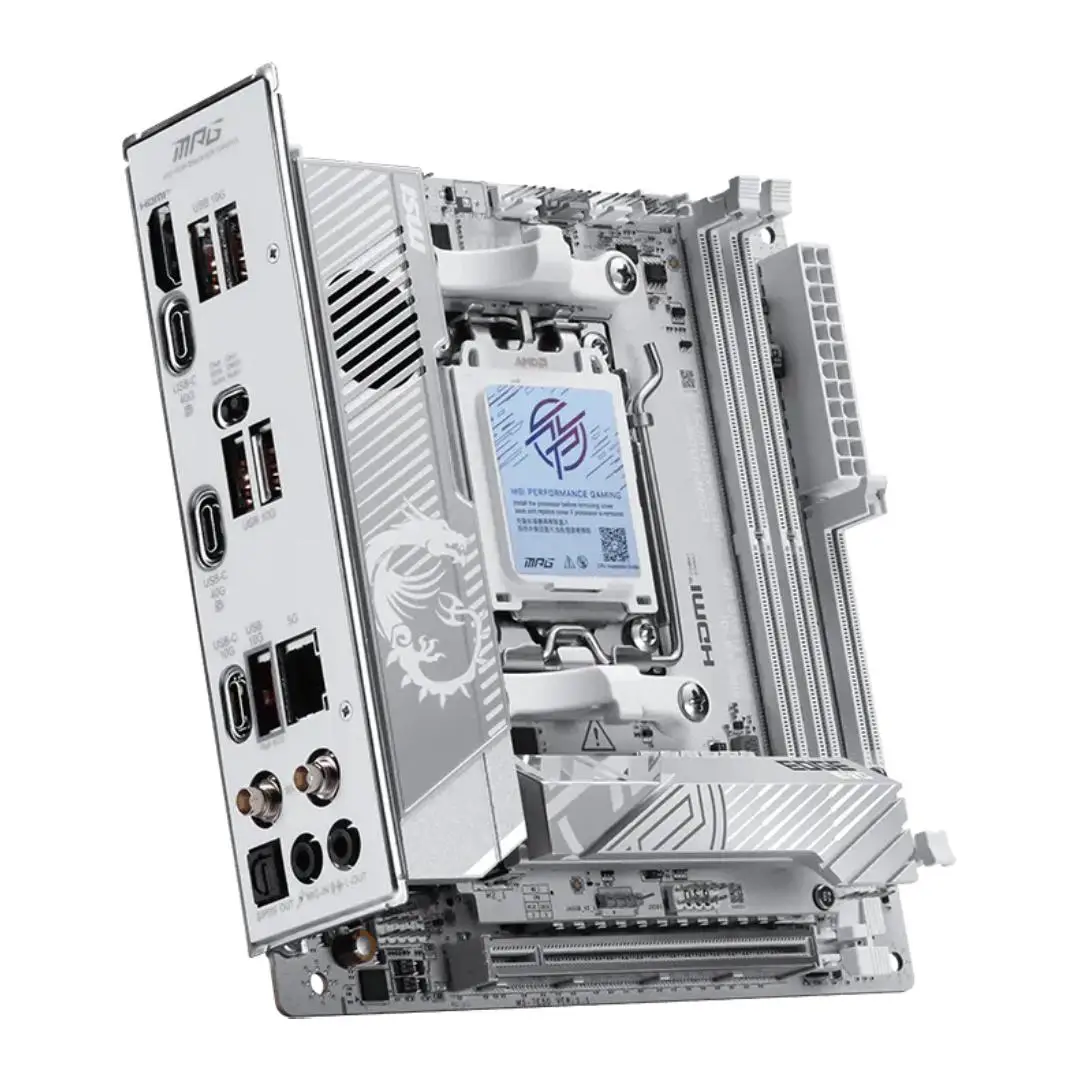

MSI MPG X870I EDGE TI EVO WIFI (Socket AM5, DDR5, Type C, WiFi7)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Chipset : AMD X870

CPU : Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory : 2x DDR5, Maximum Memory Capacity 128GB

Onboard Graphics :

1x HDMI

Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz

2x Type-C DisplayPort

Slot :

1x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E1 slot (From CPU)

-Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

-Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

-Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

1x FP card slot

-Supports the installation of MSI 5-in-1 XPANDER card only.

Audio :

Realtek ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Supports S/PDIF output

Storage :

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

2x SATA 6G

M.2_1 slot (From CPU)

-Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

-Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M.2_2 slot (From X870 chipset)

-Supports up to PCIe 4.0 x4

-Supports 2280 storage devices

-Supports single sieded M.2 SSD only

5-in-1 XPANDER Card

M.2_3 slot (From X870 chipset)

-Supports up to PCIe 4.0 x4

-Supports 2280 storage devices

-Supports single sided M.2 SSD only

RAID :

Supports RAID 0, and RAID 1 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices

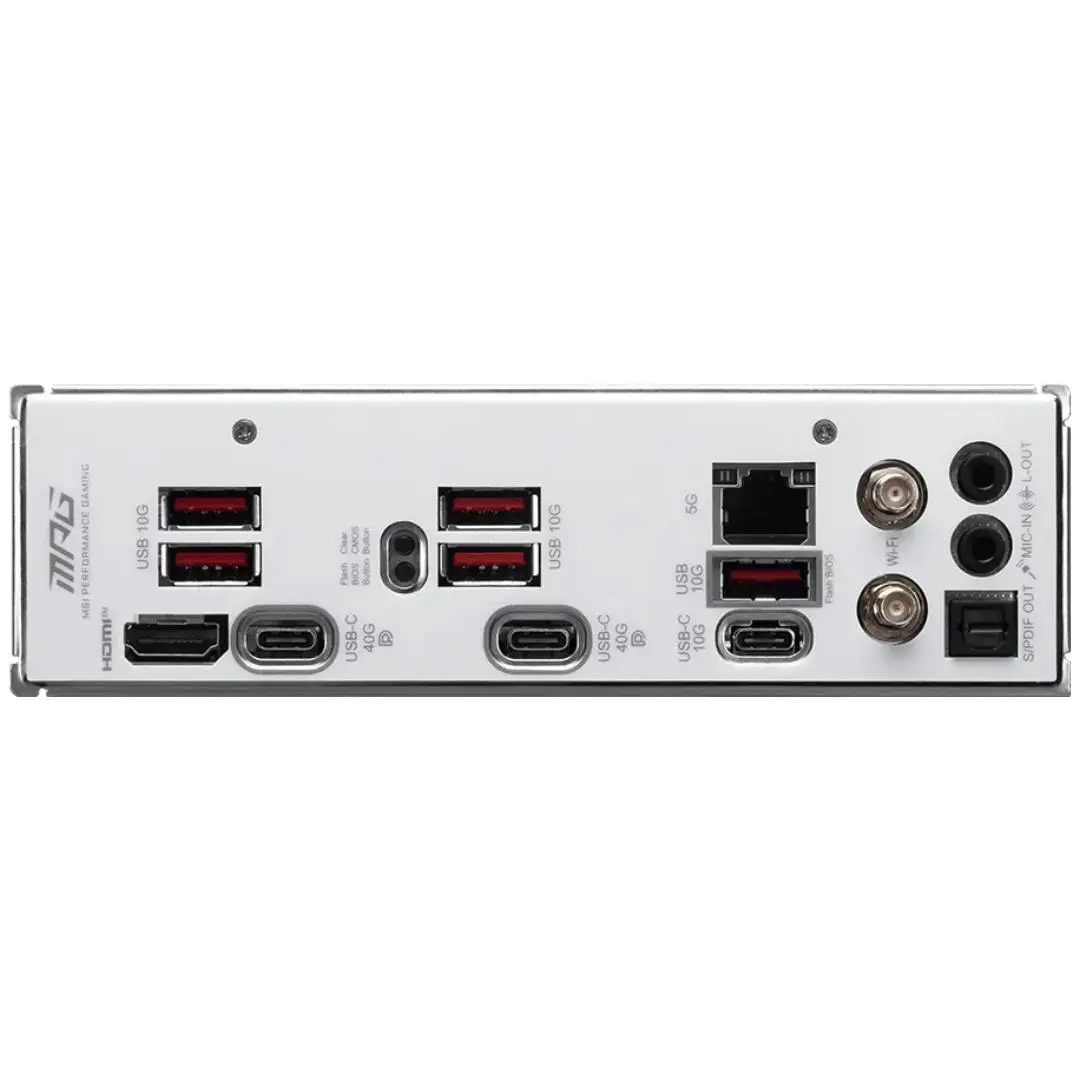

USB :

2x USB 2.0 (Front)

2x USB 5Gbps Type A (Front)

5x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

2x USB 40Gbps Type C (Rear)

LAN : 1x Realtek 8126 5G LAN

Internal IO :

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

1x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

2x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH :

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
