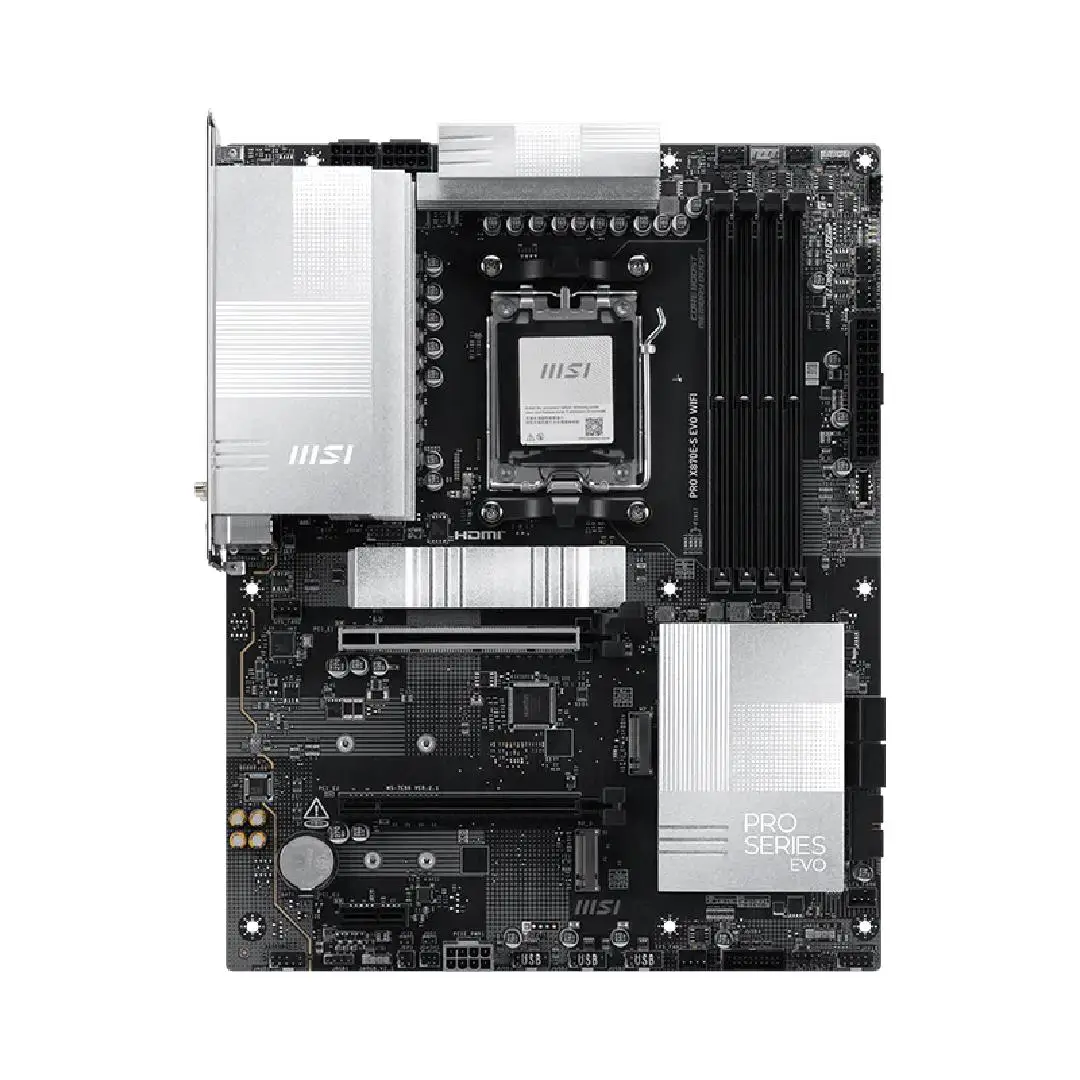

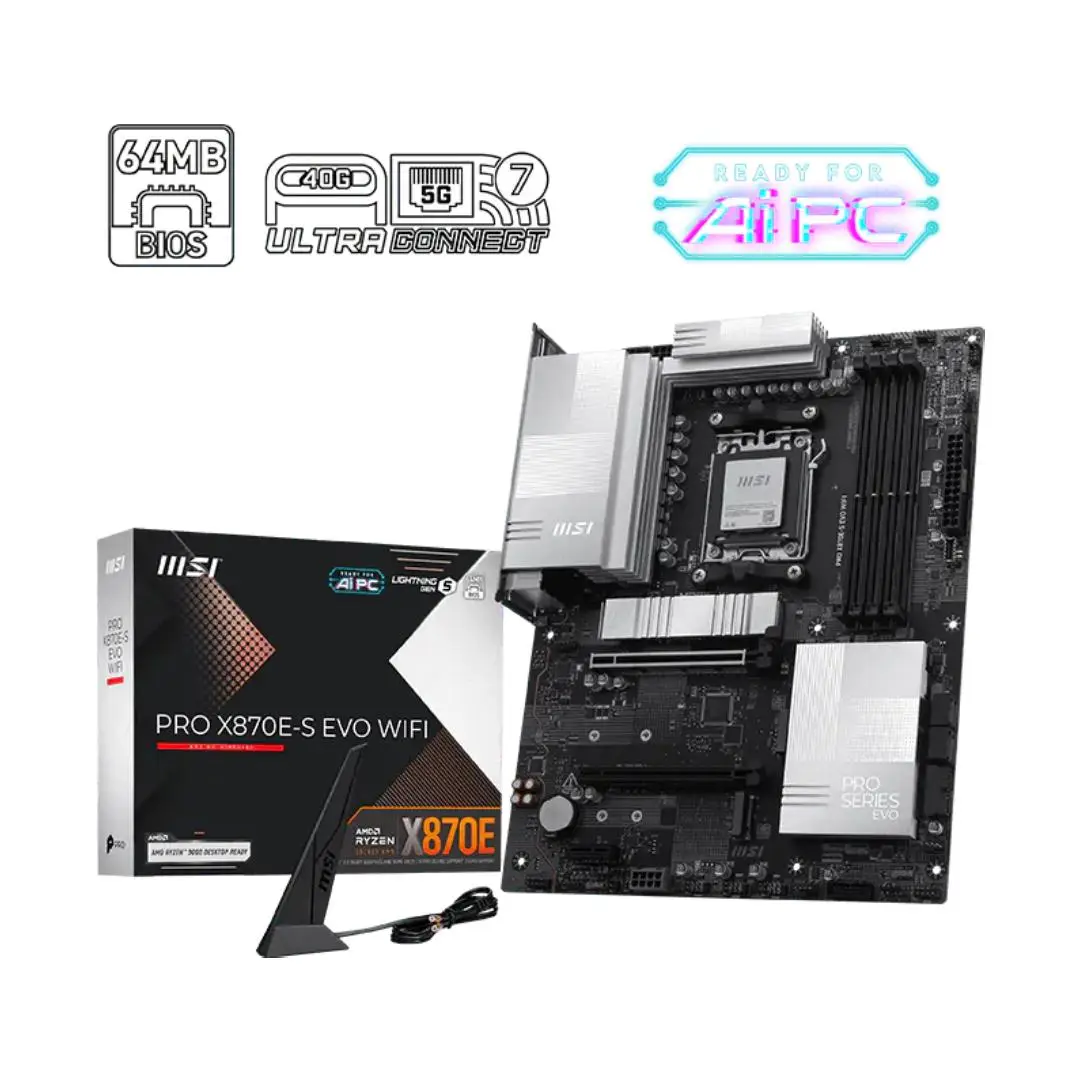

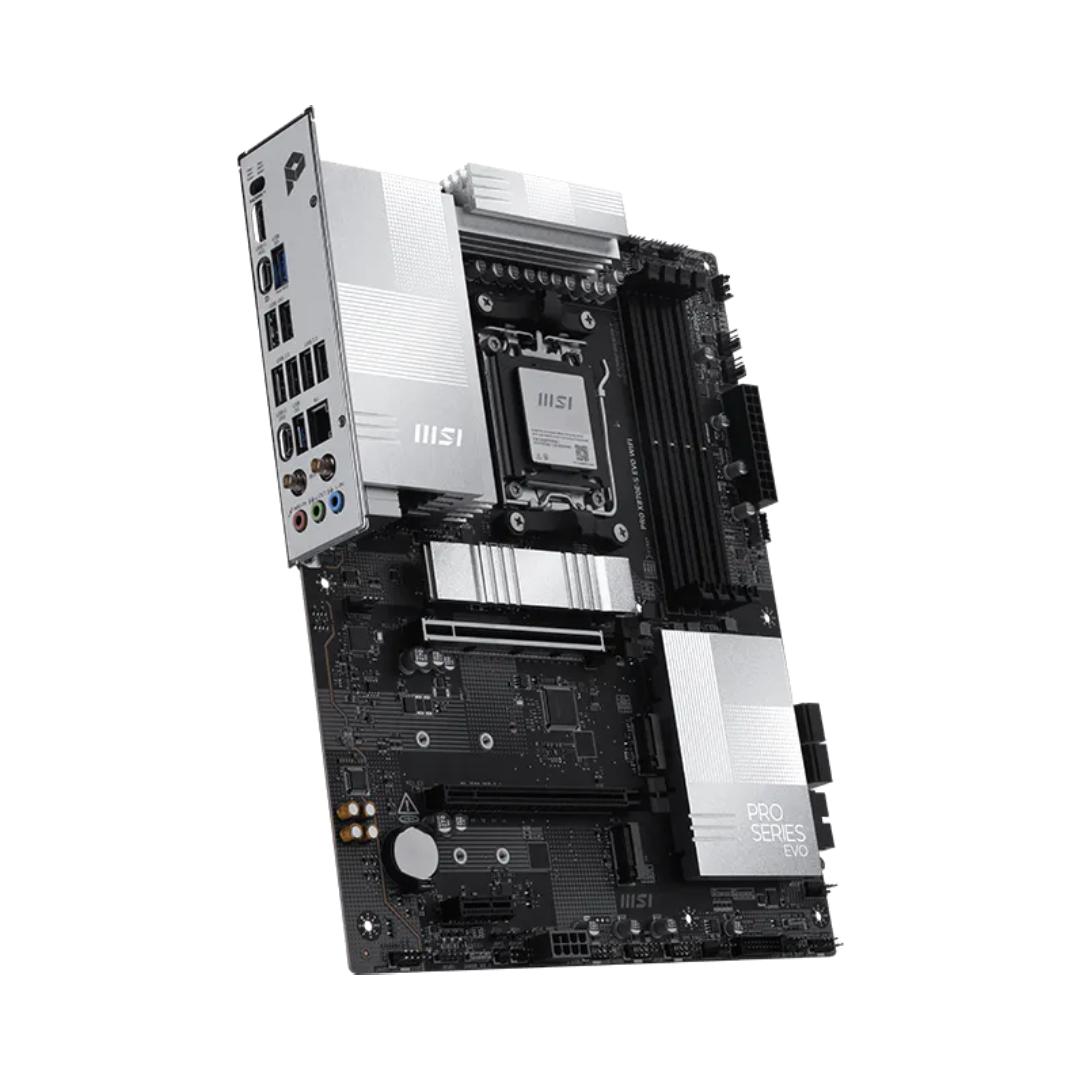

MSI PRO X870E-S EVO WIFI (Socket AM5, DDR5, Type C, WiFi7)
Rp5.068.300 Rp4.561.470
Availability: 99999 in stock
Availability: 99999 in stock
Pengiriman
- Dikirim dari Jakarta
- Ongkir mulai dari Rp. 10.000
Lihat Panduan Melakukan Pembelian
Pelajari lebih lanjut mengenai langkah melakukan pembelian produk.
Hubungi Layanan Pelanggan
Anda dapat menghubungi layanan pelanggan untuk informasi lebih lanjut.
Deskripsi Produk
Silakan konfirmasi stock sebelum melakukan pembelian 🙂
Specification :
Chipset : AMD X870E
CPU : Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory : 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Onboard Graphics :
1x HDMI
Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Slot :
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
-Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
-Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
-Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
Audio :
Realtek ALC897
7.1-Channel High Definition Audio
RAID :
Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

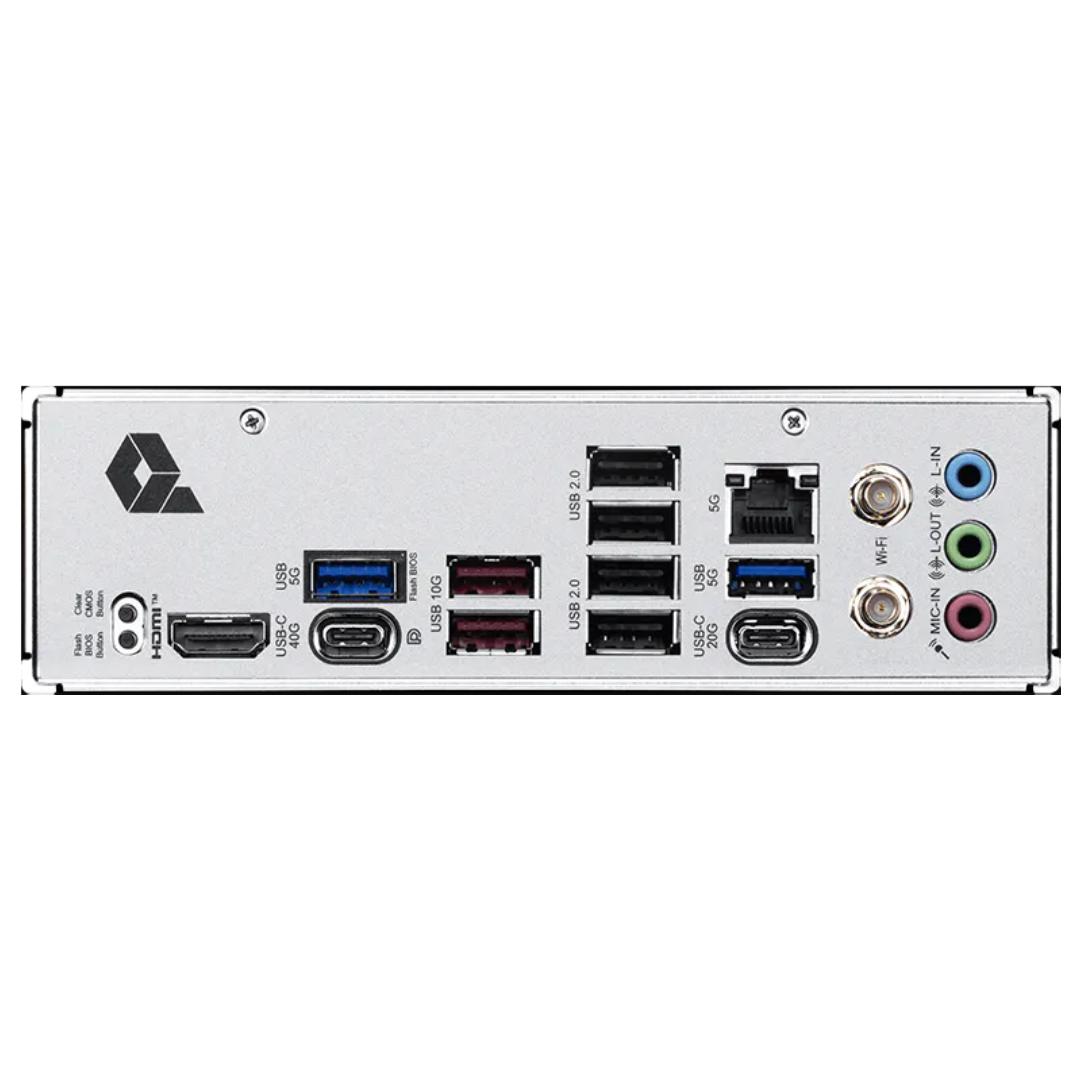

USB :
4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN : Realtek 8126VB 5G LAN
Internal IO :
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH :
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
