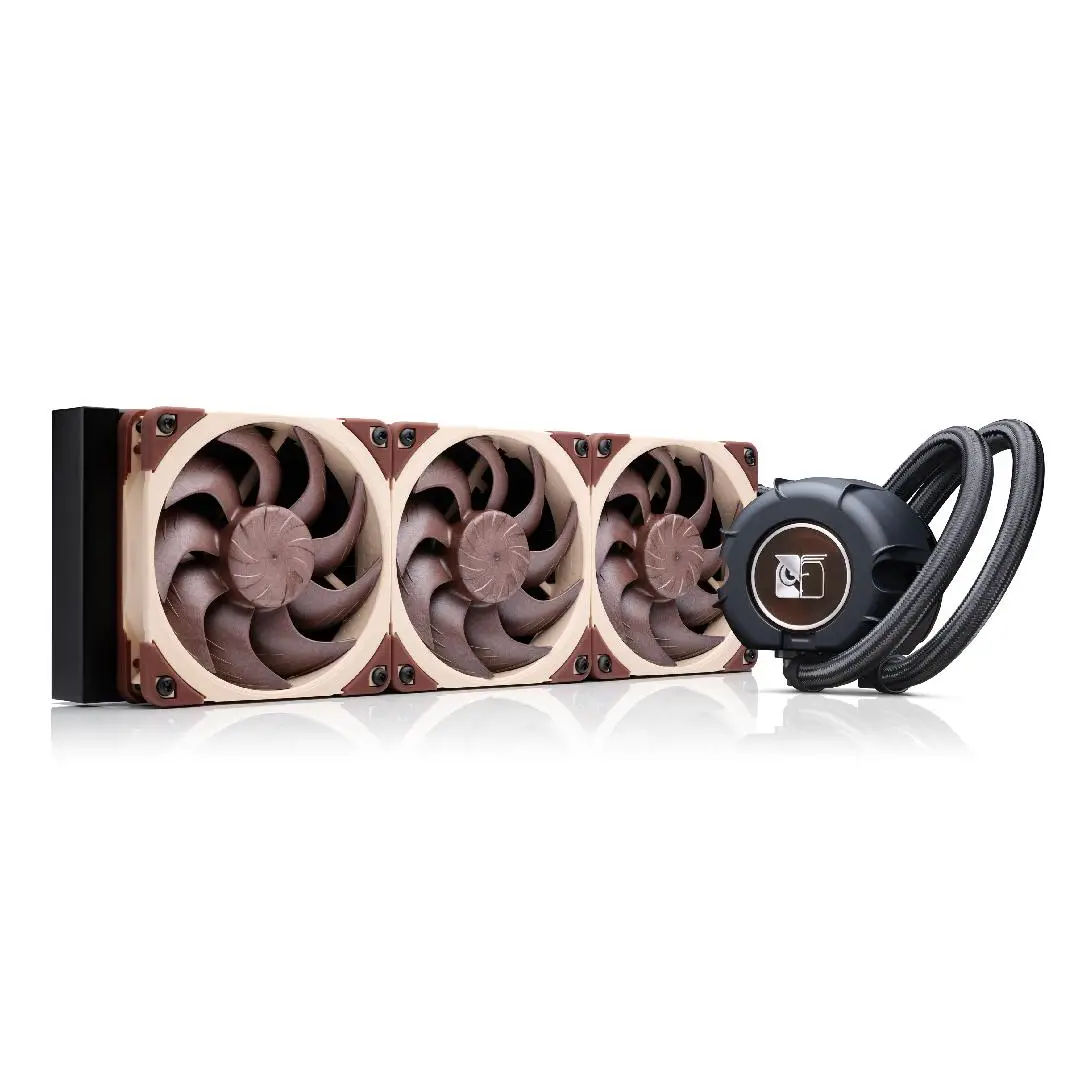

NOCTUA NL-LC1-36 + NL-ACF1 Auxiliary Cooling Fan AIO Liquid Cooler 360mm

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Pump model : Asetek Emma V2

Socket compatibility : AM5, AM4, LGA1700, LGA1851, LGA1954

Radiator form factor : 360 mm

Fan configuration : 3x NF-A12x25 G2

Total radiator assembly thickness : 59

NSPR : 248

Warranty : 6 years

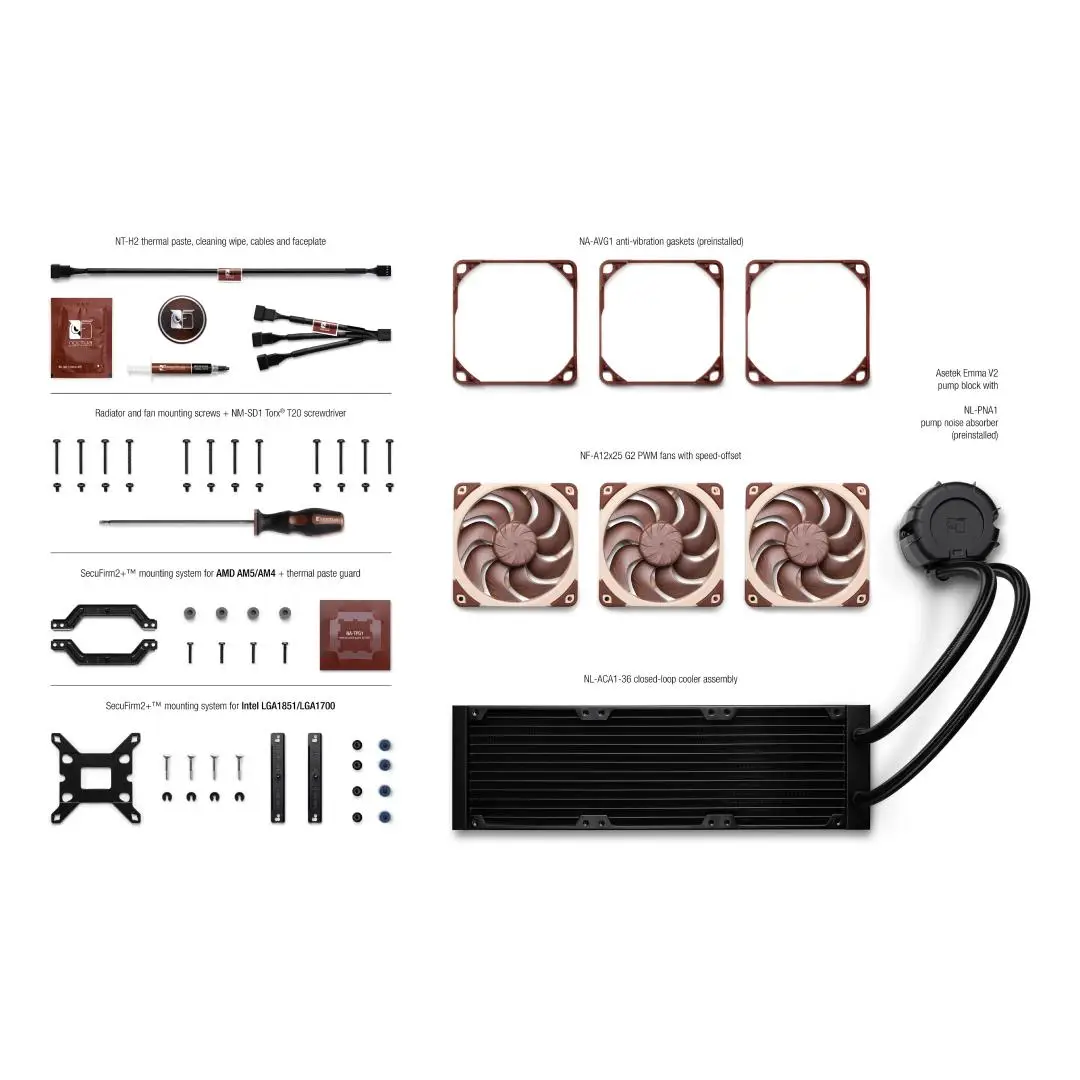

Scope of delivery
NL-LC1-36 closed-loop liquid cooler with NL-PNA1 pump noise absorber
Metal Noctua logo faceplate
3x NF-A12x25 G2 PWM fans with speed-offset (PPA/PPB/PPA)
3x NA-AVG1 anti-vibration gaskets (pre-installed)
NA-SC1 3-way splitter cableNA-EC1 30cm extension cable
Fan and radiator mounting screws (Torx T20)
SecuFirm2+ multi-socket mounting system with offset options for
AMD AM5/AM4 and Intel LGA1851/1700
NM-SD1 Torx T20 screwdriver
NT-H2 thermal compoundNA-CW1 cleaning wipe
NA-TPG1 thermal paste guard for AMD AM5
Noctua metal case badge
Noctua NL-ACF1 Auxiliary cooling fan

Fan: NF-A12x25 G2 PWM
Size (Form factor) : 120 x 120 x 25 mm (square)
Speed range : 0 – 1800 rpm
Airflow (max.) : 107.3 m³/h (63.15 CFM)
Acoustical noise (max.) : 22.5 dB(A)
Static pressure (max.) : 3.14 mm H₂O
Rated voltage : 12 V
Connector : 4-pin
Colour : Brown

Warranty : 6 years

Pump block
Pump model : Asetek Emma V2
Pump block height : 70 mm
Motor type (phases) : Three phase
Bearing : Ceramic sleeve and shaft
Rated voltage : 12 V
Starting voltage : 9.5 V
Max. operating voltage : 13.2 V
Max. rotational speed (manual mode) : 3400 rpm
Max. rotational speed (balanced mode) : 2600 rpm
Max. rotational speed (quiet mode) : 2100 rpm
Cable length : 500 mm
Connector type : 4-pin PWM

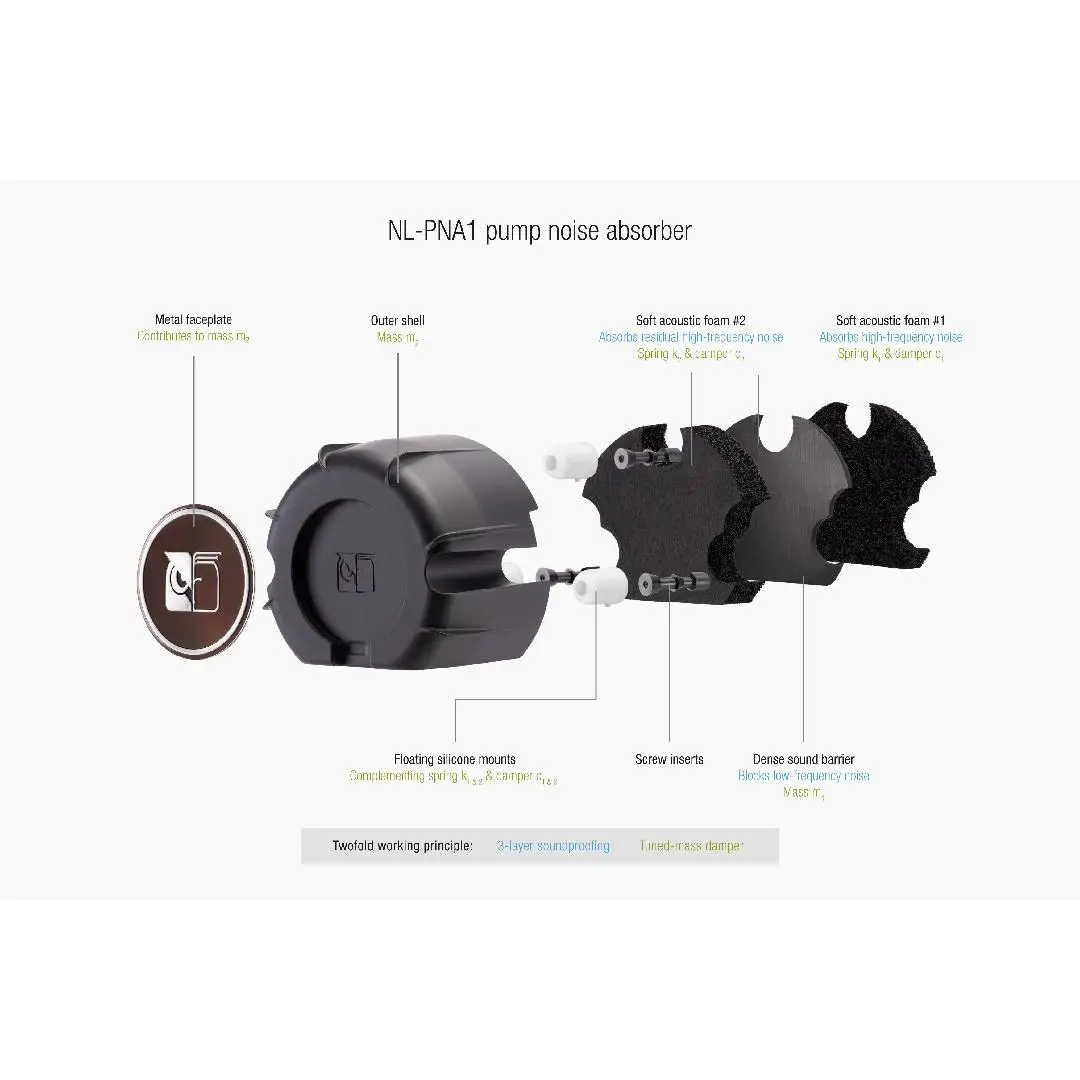

Pump noise absorber : NL-PNA1
Auxiliary cooling fan : Optional (NL-ACF1)

Tube
Material : EPDM (braided)
Tube length : 410 mm
Outer diameter : 12.5 mm
Inner diameter : 7 mm
Min. bend radius : 26 mm

Radiator
Form factor : 360 mm
Material (fins) : Aluminium
Material (tubes) : Aluminium
Material (frame) : Steel
Fins per inch (FPI) : 20
Radiator size : 399.5 x 120 x 30 mm
Fan configuration : 3x 120x120x25 mm
Total radiator assembly thickness : 59
Screw threads : UNC 6-32
