Power Supply ASUS ROG THOR 1600T3 RGB 1600W 80+ TITANIUM FULLY MODULAR

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Model

ROG THOR 1600W Titanium III

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

200 x 150 x 86 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 133.3A 0.3A 3A

Combined Load

125W 125W 1600W 3.6W 15W

Total Output

1600W

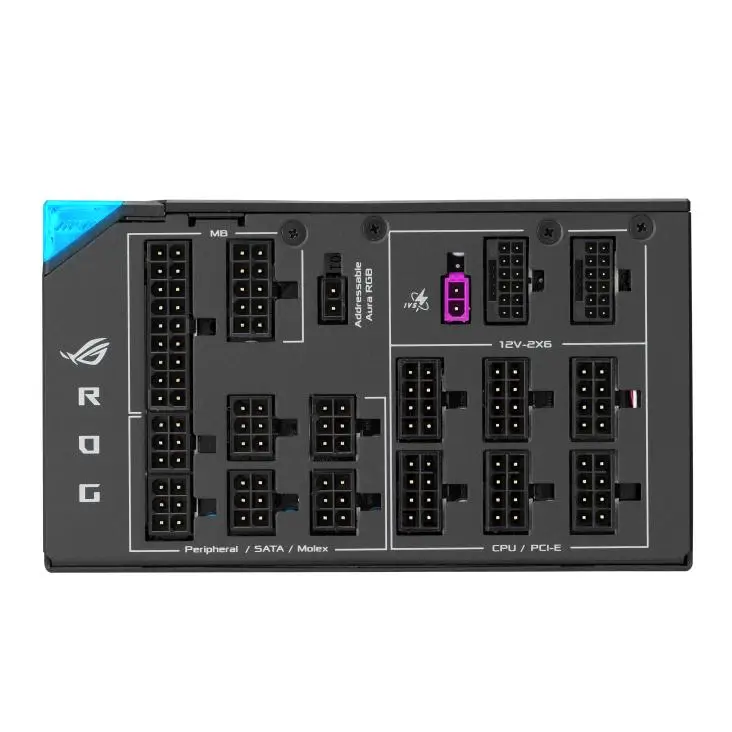

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 4
PCI-E 16-pin x 2
SATA x 10
PERIPHERAL x 9

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 2 (750mm)
PCI-E Cable 1-to-1 x 4 (750mm)
SATA Cable 1-to-4 x 1 (400+120+120+120mm)
SATA Cable 1-to-3 x 2 (400+120+120mm)
Peripheral 1-to-3 x 3 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight

2.80 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

TBD

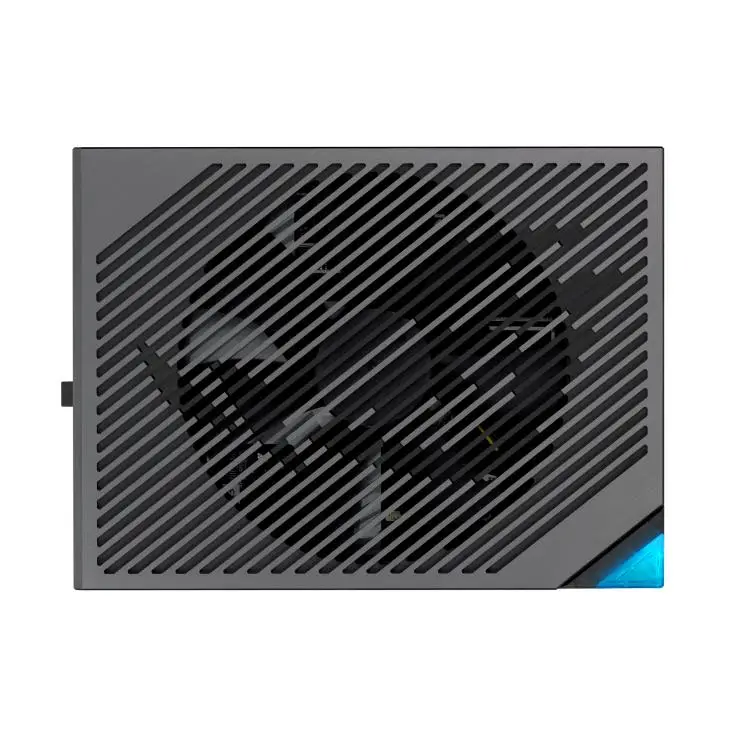

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

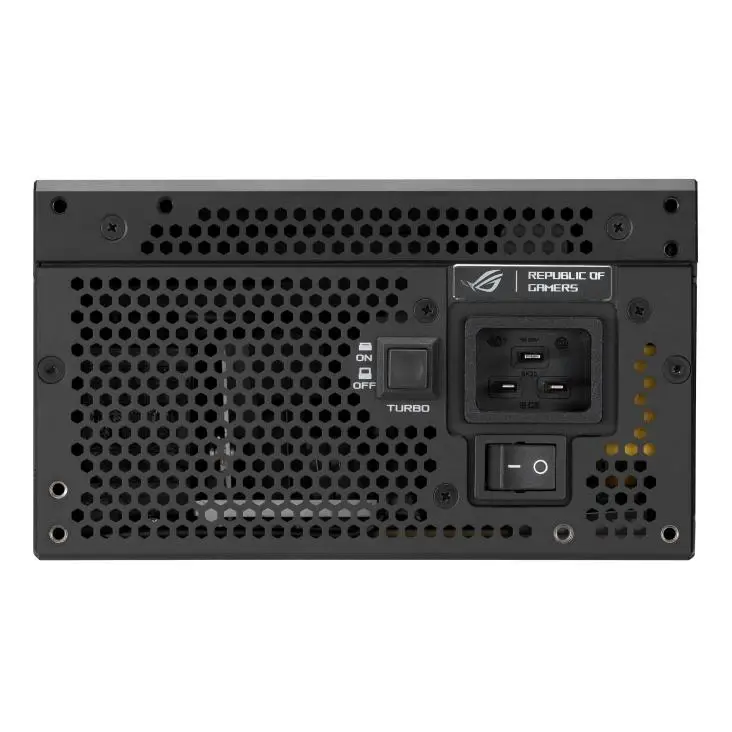

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
