POWER SUPPLY COOLER MASTER ELITE 850 | 850W 80+ GOLD ATX 3.1 Fully Modular

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Preview :

Supports ATX 3.1 and PCIe Gen 5.1 standards

Ideal for RTX 50 GPUs

Stable performance under high loads at up to 40°C

Quiet rifle bearing fan for efficient cooling and low noise

850W output with 80 Plus Gold-certified efficiency

Fully modular embossed cable design

Reliable 10-year warranty

Specification :

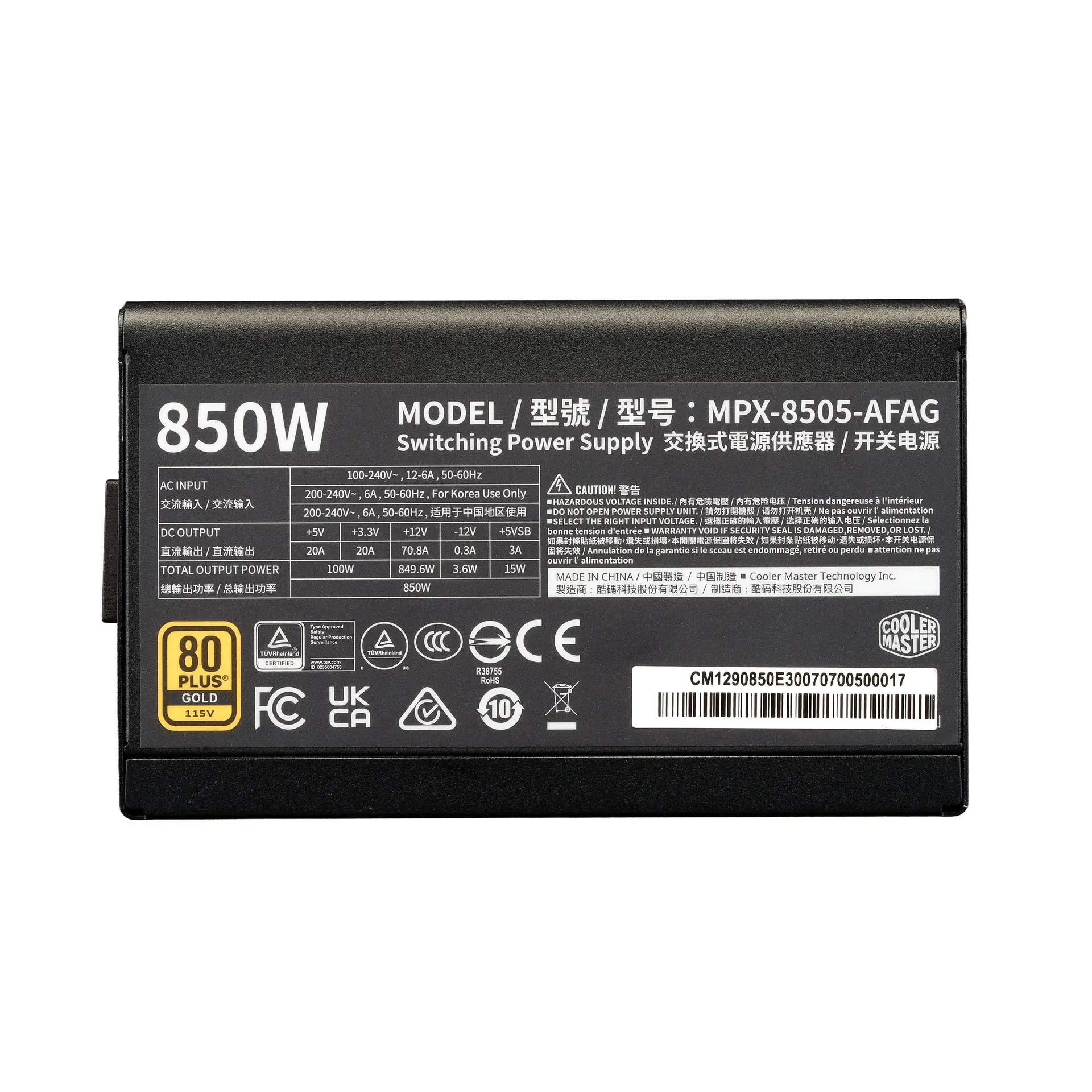

Product Name : ELITE GOLD 850

Model : MPX-8505-AFAG

ATX Version : ATX 12V Ver. 3.1

PFC : Active PFC

Input Voltage : 100-240V

Input Current : 6 ~ 12A

Input Frequency : 50-60Hz

Dimensions (L x W x H) : 140 x 150 x 86 mm

Fan Size : 120mm

Fan Bearing : Rifle bearing

Efficiency : ≥90% @ Typical Load

80 PLUS Rating : 80 PLUS Gold

ErP 2014 Lot 3 : Yes

Operating Temperature : 0-40°C

Power Good Signal : 100 – 150 ms

Hold Up Time : ≥ 11ms @ 100% Load

MTBF : >100,000 hours​ @ 25℃ ambient

Protections : UVP / OVP / OPP / OTP / SCP

Regulatory : cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

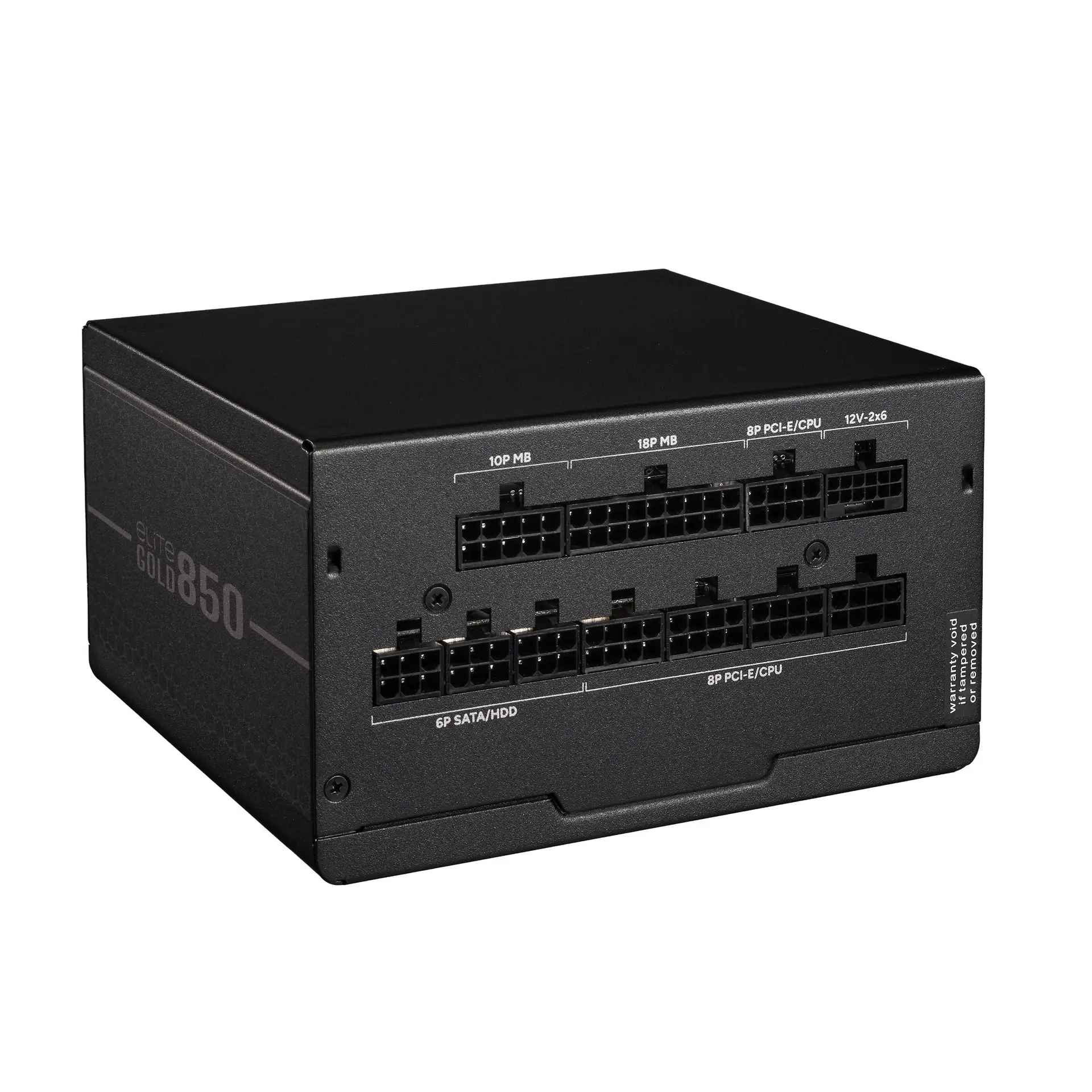

ATX 24 Pin Connectors

x1 = 1 (550mm)

EPS 4+4 Pin Connectors : x1 = 1 (600mm)

EPS 8 Pin Connector : x1 = 1 (600mm)

SATA & Peripheral 4 Pin Connectors : X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

PCI-e 6+2 Pin Connectors : x3 = 1 (500+120mm), 1 (500mm)

12+4 Pin Connectors : x1 = 1 (650mm)

Series : Elite Series

Form Factor : ATX

Watts : 850W

Modular : Fully Modular

80 Plus Efficiency : Gold

Warranty: 10 Years
