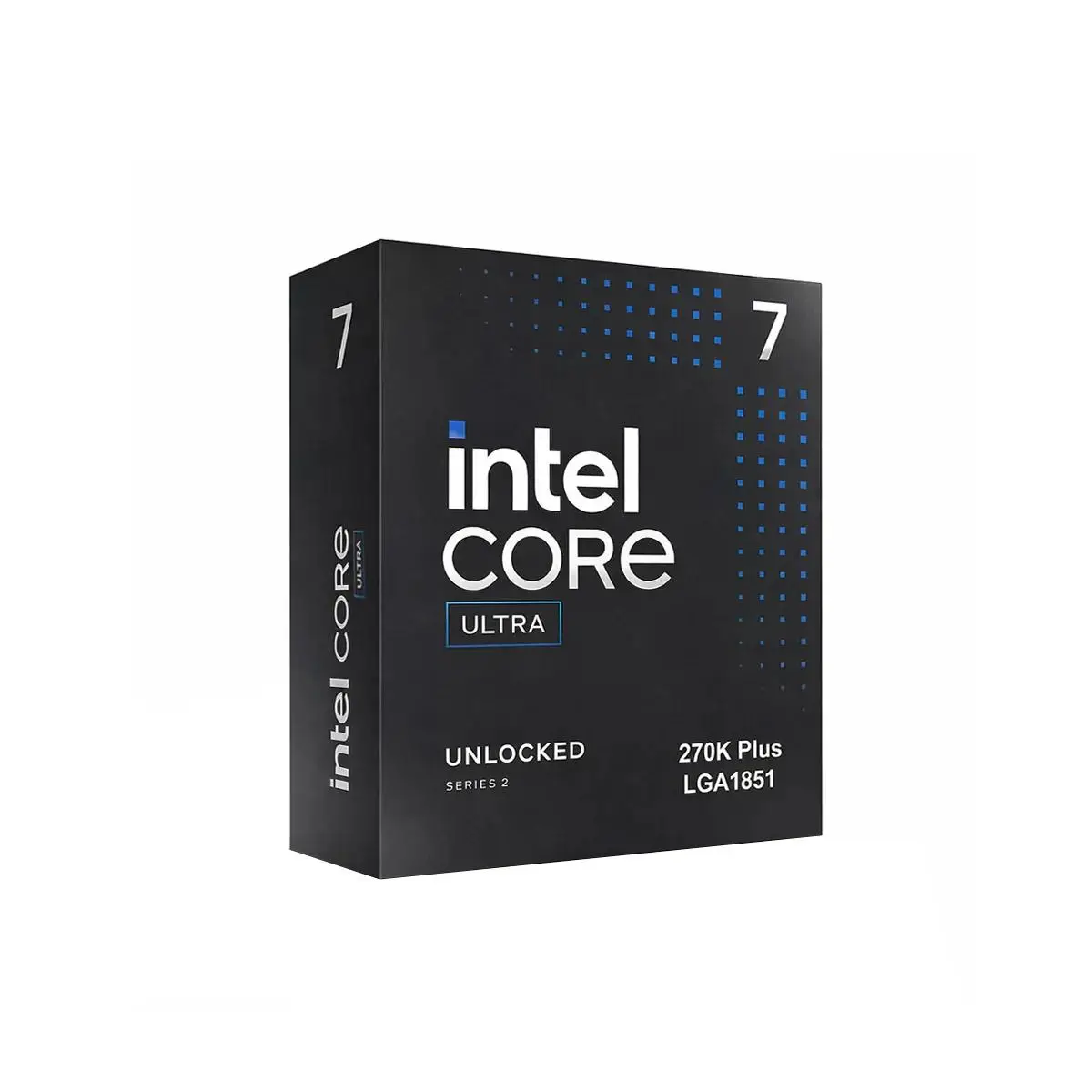

Processor INTEL Core Ultra 7 270K PLUS (LGA 1851)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Essentials
Product Collection
Intel Core Ultra Processors (Series 2)
Code Name
Products formerly Arrow Lake
Vertical Segment
Desktop
Processor Number
270K PLUS
Overall Peak TOPS (Int8)
36

CPU Specifications
Total Cores
24
# of Performance-cores
8
# of Efficient-cores
16
# of Low Power Efficient-cores
0
Total Threads
24
Max Turbo Frequency
5.5 GHz
Intel Turbo Boost Max Technology 3.0 Frequency ‡
5.5 GHz
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.7 GHz
Performance-core Base Frequency
3.7 GHz
Efficient-core Base Frequency
3.2 GHz
Cache
36 MB Intel Smart Cache
Total L2 Cache
40 MB
Processor Base Power
125 W
Maximum Turbo Power
250 W
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
AI Software Frameworks Supported by CPU
OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography
TSMC N3B

Supplemental Information
Marketing Status
Launched
Launch Date
Q1’26
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Datasheet
Memory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
Up To DDR5 7200 MT/s
Max # of Memory Channels
2
ECC Memory Supported ‡
Yes

GPU Specifications
GPU Name‡
Intel Graphics
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
2 GHz
GPU Peak TOPS (Int8)
8
Graphics Output
eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores
4
Max Resolution (HDMI)‡
4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡
3840 x 2400 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3
H.264 Hardware Encode/Decode
Yes
H.265 (HEVC) Hardware Encode/Decode
Yes
AV1 Encode/Decode
Yes
Intel Quick Sync Video
Yes
# of Displays Supported ‡
4
Device ID
0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU
Yes
AI Software Frameworks Supported by GPU
OpenVINO, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications
NPU Name‡
Intel AI Boost
NPU Peak TOPS (Int8)
13
Sparsity Support
Yes
Windows Studio Effects Support
Yes
AI Software Frameworks Supported by NPU
OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
Direct Media Interface (DMI) Revision
4
Max # of DMI Lanes
8
Intel Thunderbolt 4
Yes
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes
24

Package Specifications
Sockets Supported
FCLGA1851
Thermal Solution Specification
PCG 2020A
Max Operating Temperature
105 °C
Package Size
45 mm x 37.5 mm

Advanced Technologies
Intel Gaussian & Neural Accelerator
3.5
Intel Thread Director
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0 ‡
Yes
Intel Turbo Boost Technology ‡
2.0
Intel Hyper-Threading Technology ‡
No
Intel 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes

Security & Reliability
Intel vPro Eligibility ‡
Intel vPro Enterprise
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT) ‡
Yes
Intel Standard Manageability (ISM) ‡
Yes
Intel Remote Platform Erase (RPE) ‡
Yes
Intel One-Click Recovery ‡
Yes
Intel Secure Key
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption – Multi Key
Yes
Intel AES New Instructions
Yes
Intel Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel OS Guard
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp) ‡
Yes
Intel Virtualization Technology (VT-x) ‡
Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel VT-x with Extended Page Tables (EPT) ‡
