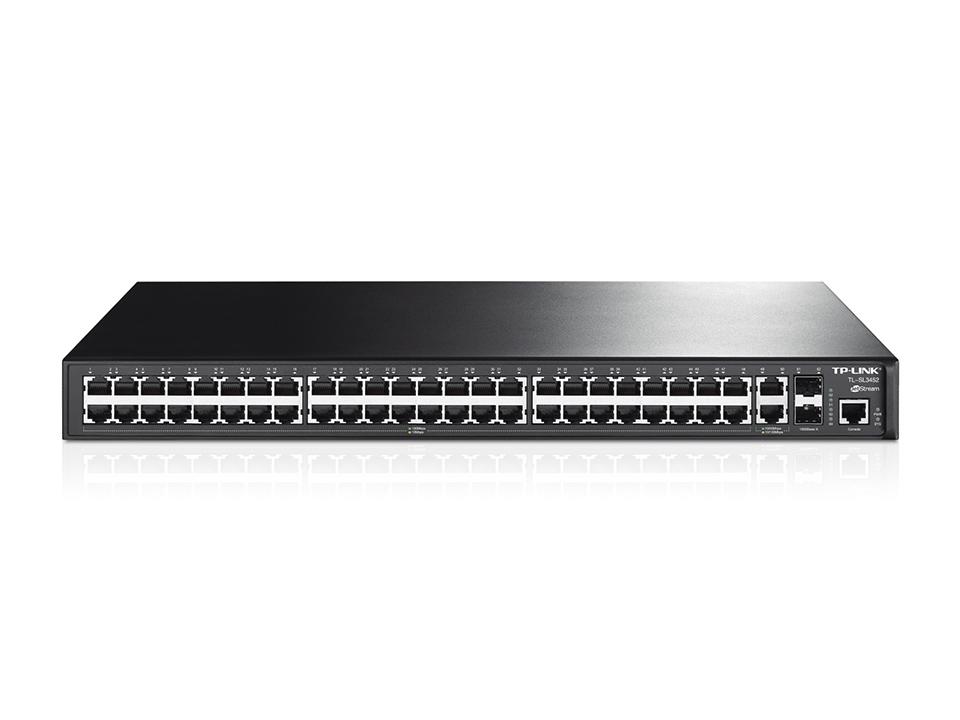

TP-LINK SL3452 Managed L2 Switch 48port 10/100Mbps + 2Gigabit + 2SFP

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p

Interface 48 10/100Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

2 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

2 Gigabit SFP Slots

1 Console Port

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity Fanless

Power Supply 100~240VAC, 50/60Hz

Power Consumption Maximum: 20.3W (220V/50Hz)

Dimensions ( W x D x H ) 17.32*10.2*1.73 in.(440*260*44 mm)

PERFORMANCE

Bandwidth/Backplane 17.6Gbps

Packet Forwarding Rate 13.1Mpps

MAC Address Table 8k

Jumbo Frame 10240 Bytes

SOFTWARE FEATURES

Quality of Service Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port/ MAC/Protocol-based VLAN

GARP/GVRP

Management VLAN configuration

Access Control List L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based

Security IP-MAC-Port-VID Binding

IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

L2 Switching Features IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

Port isolation

BPDU filtering/guard

TC/Root protect

Loop back detection

802.3x Flow Control

Management Web-based GU
