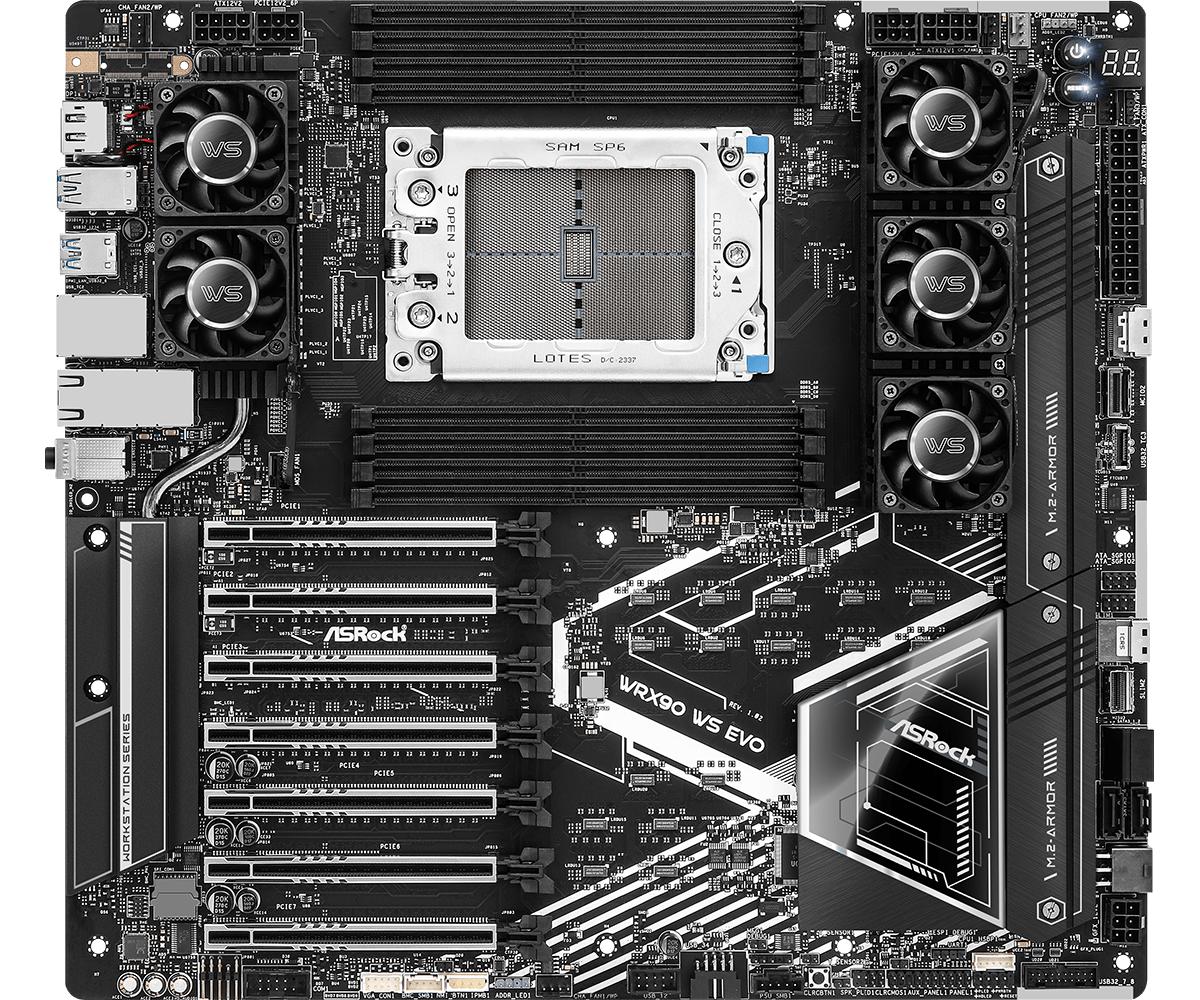

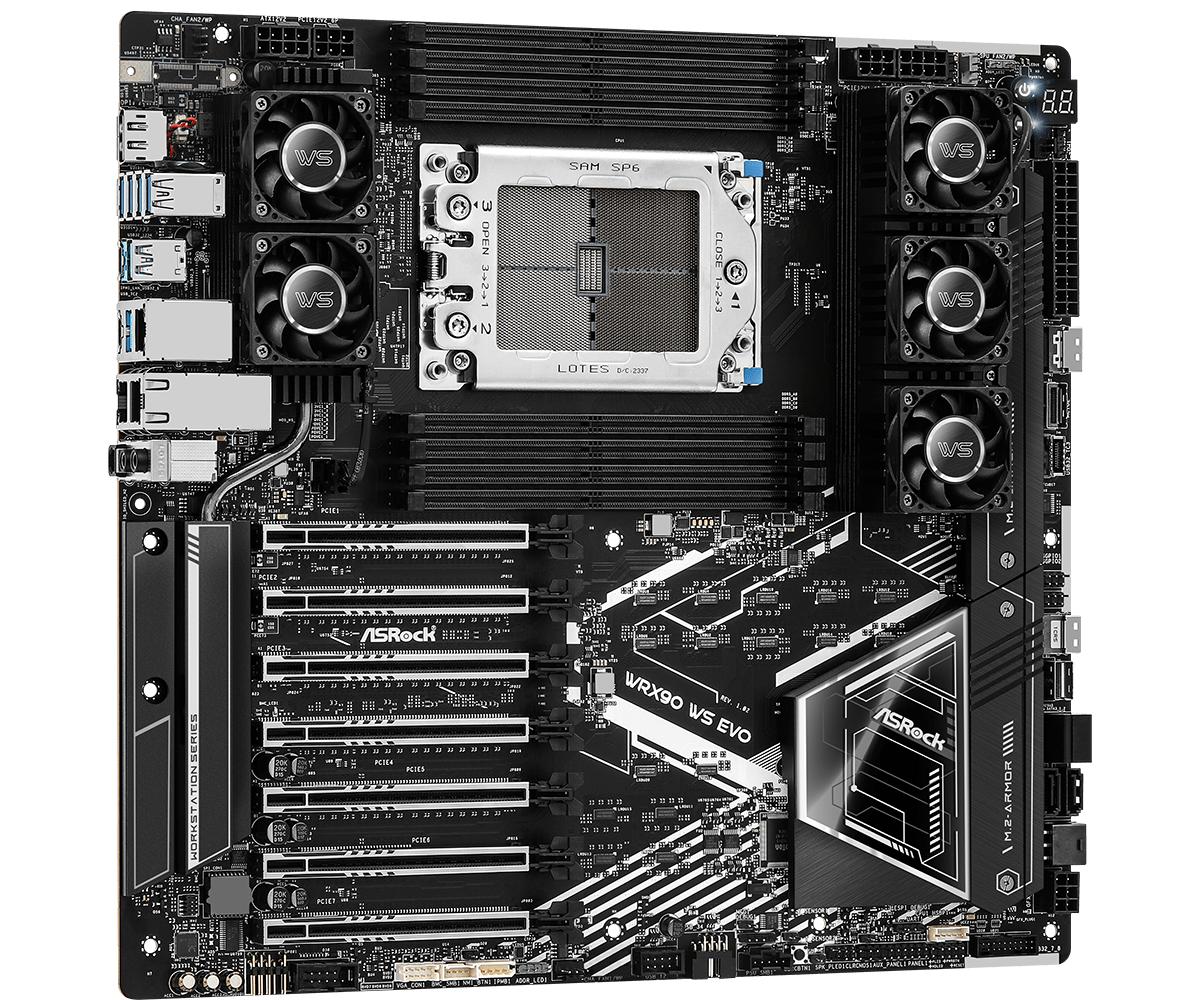

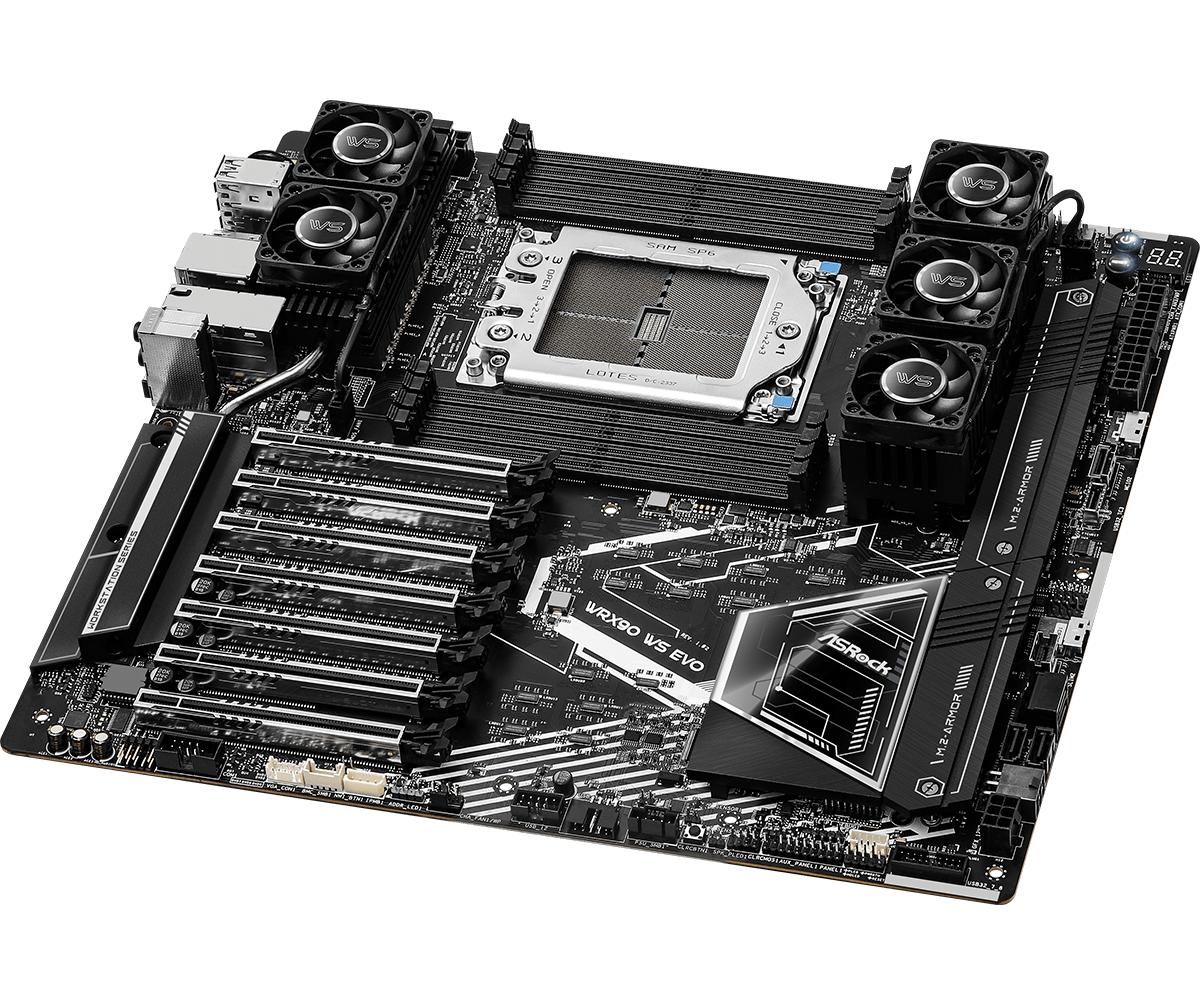

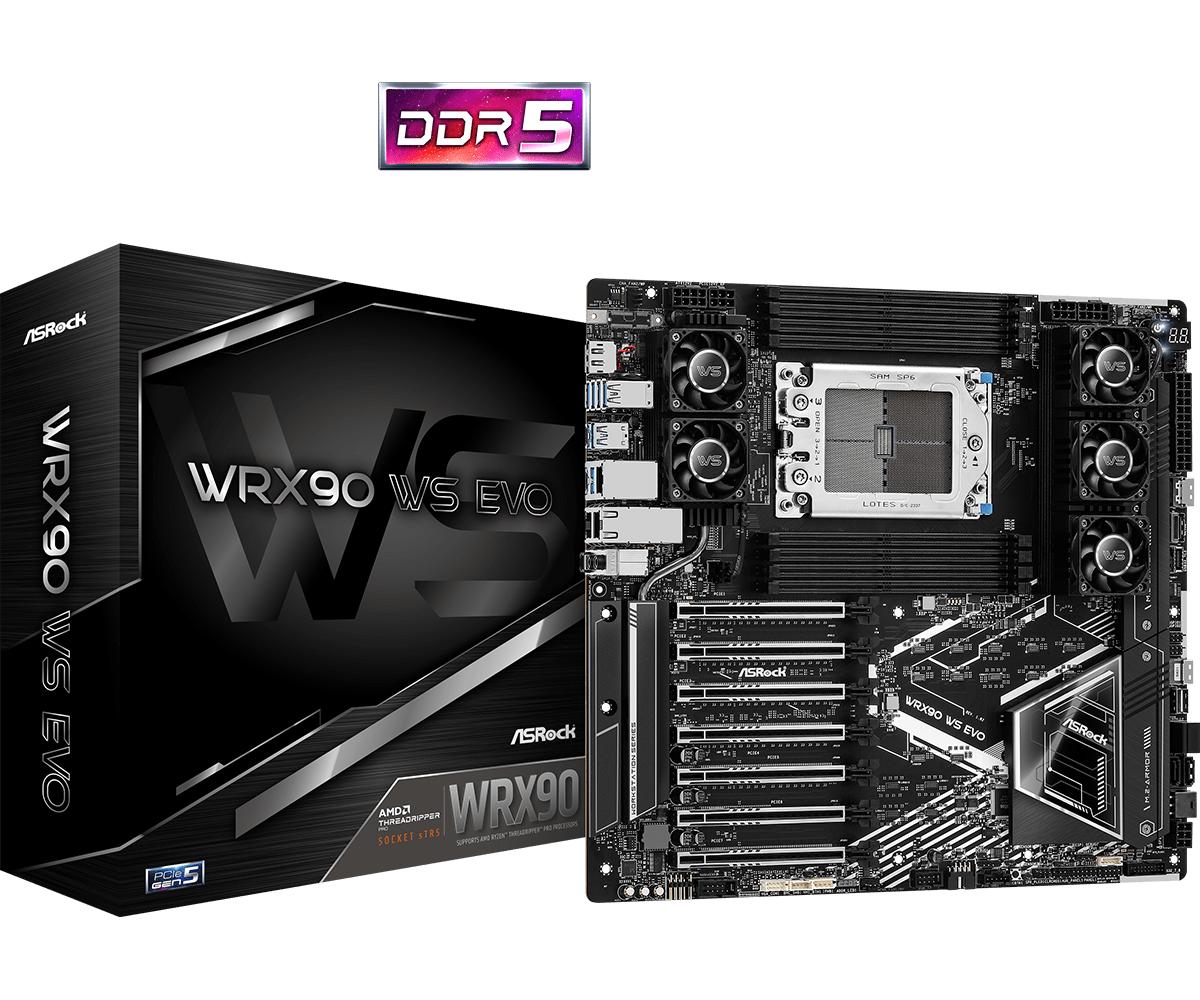

ASRock WRX90 WS EVO Support AMD Threadripper PRO, DDR5, Type C (Socket sTR5)
Rp20.994.199
Availability: 99999 in stock
Availability: 99999 in stock
Pengiriman
- Dikirim dari Jakarta
- Ongkir mulai dari Rp. 10.000
Lihat Panduan Melakukan Pembelian
Pelajari lebih lanjut mengenai langkah melakukan pembelian produk.
Hubungi Layanan Pelanggan
Anda dapat menghubungi layanan pelanggan untuk informasi lebih lanjut.
Deskripsi Produk
Silakan konfirmasi stock sebelum melakukan pembelian 🙂
Garansi 3 Tahun
Specification :
Unique Feature :
Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Eight Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
– Ultra Low-Loss PCB
– 18+3+3 Power Phase, 110A SPS for VCore
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
– Dual Intel 10G LAN
EZ Update
– ASRock Auto Driver Installer
CPU :
– Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
– Supports AMD Socket sTR5
– Supports ASRock Hyper BCLK Engine
Chipset : AMD WRX90
Memory :
– Eight Channel DDR5 Memory Technology
– 8 x DDR5 DIMM Slots*
– Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
– Max. capacity of system memory: 2TB
BIOS : 256Mb AMI UEFI Legal BIOS with GUI support
Graphics :
– Aspeed AST2600 BMC Controller
– 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz
Audio :
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Nahimic Audio
LAN :
2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel X710-AT2)
– Support PXE
1 x Dedicated IPMI (Realtek RTL8211F)
Slots :
CPU:
– 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)
– 15 Gold Contact in VGA PCIe Slots
Storage :
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
– 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
– 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
– 4 x SATA3 6.0 Gb/s Connectors
Accessories :
– 1 x User Manual
– 1 x I/O Shield
– 4 x SATA Data Cables
– 2 x Thermistor Cables
– 1 x Multi PSU Adaptor Cable
– 2 x Screws for M.2 Sockets
– 2 x Standoffs for M.2 Sockets
Form Factor :
– EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
– 14 Layer PCB
– 2oz Copper PCB
