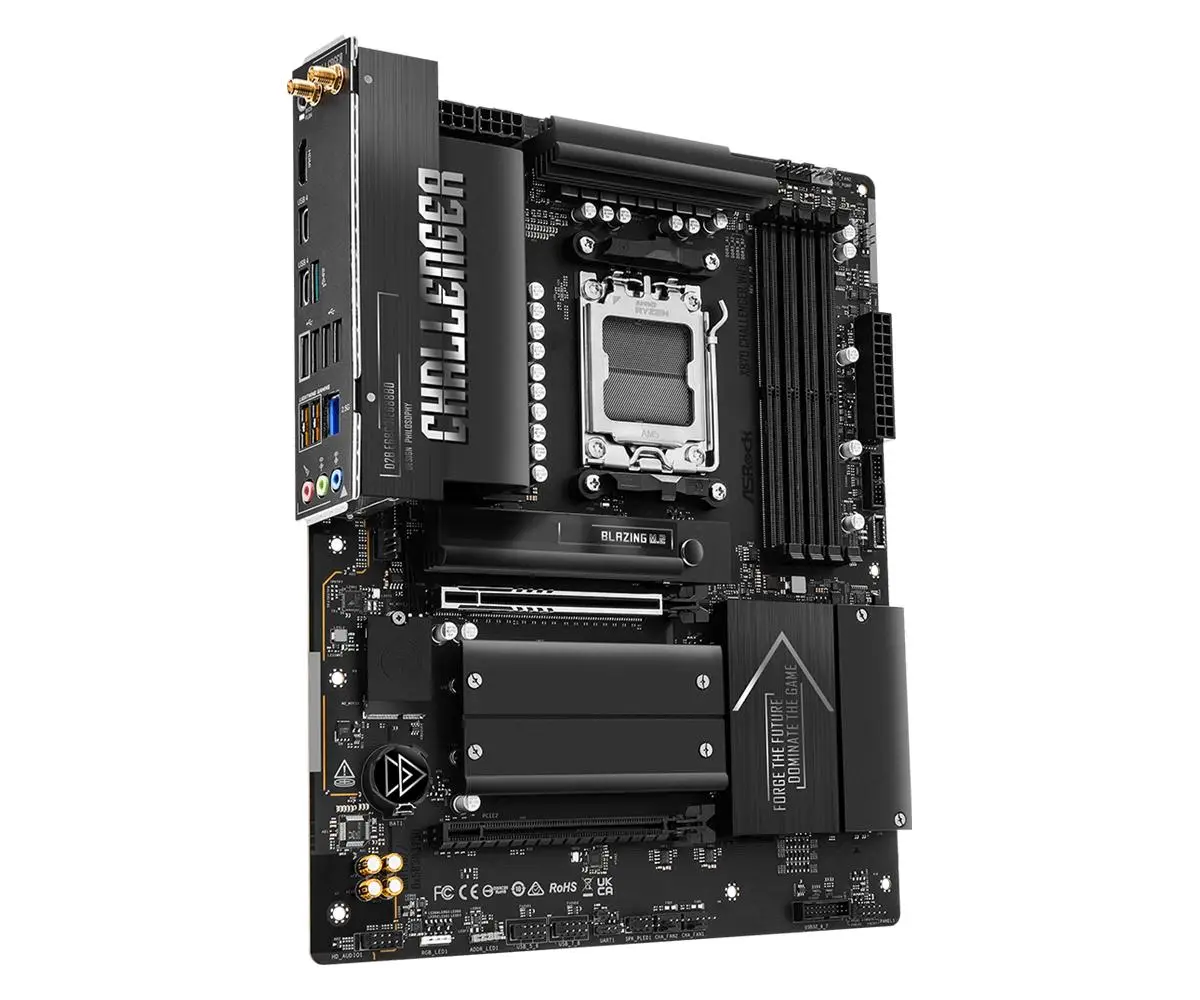

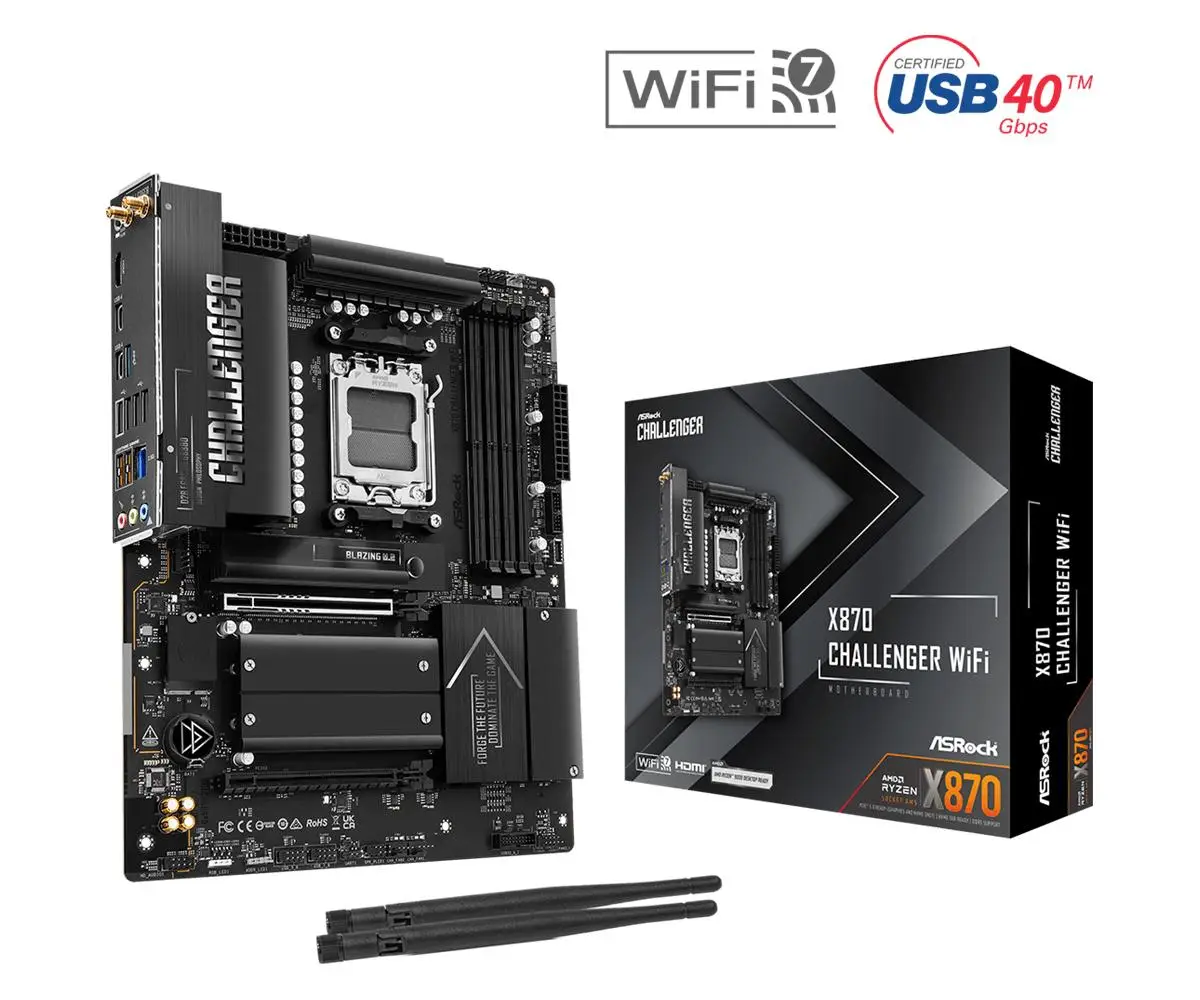

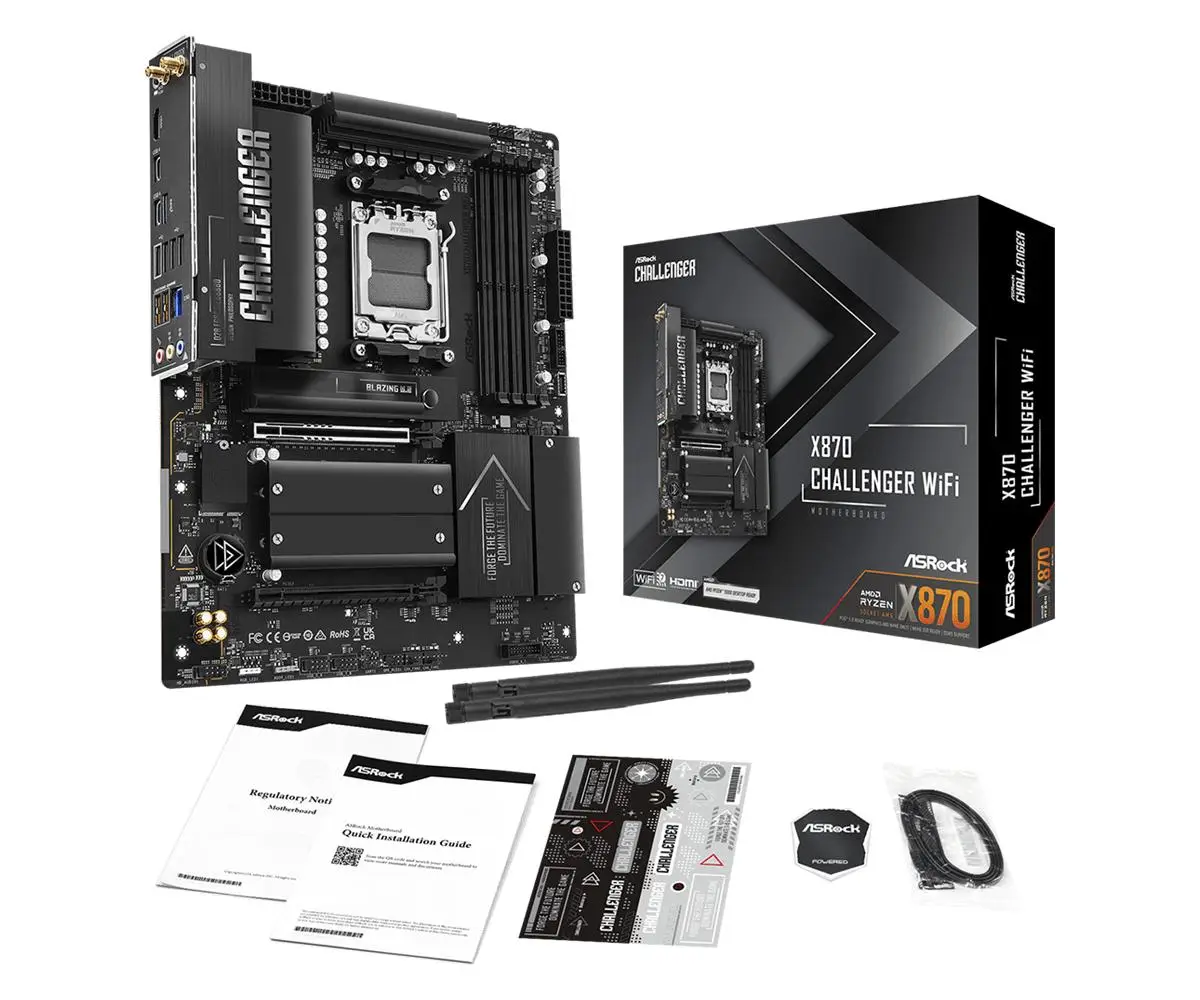

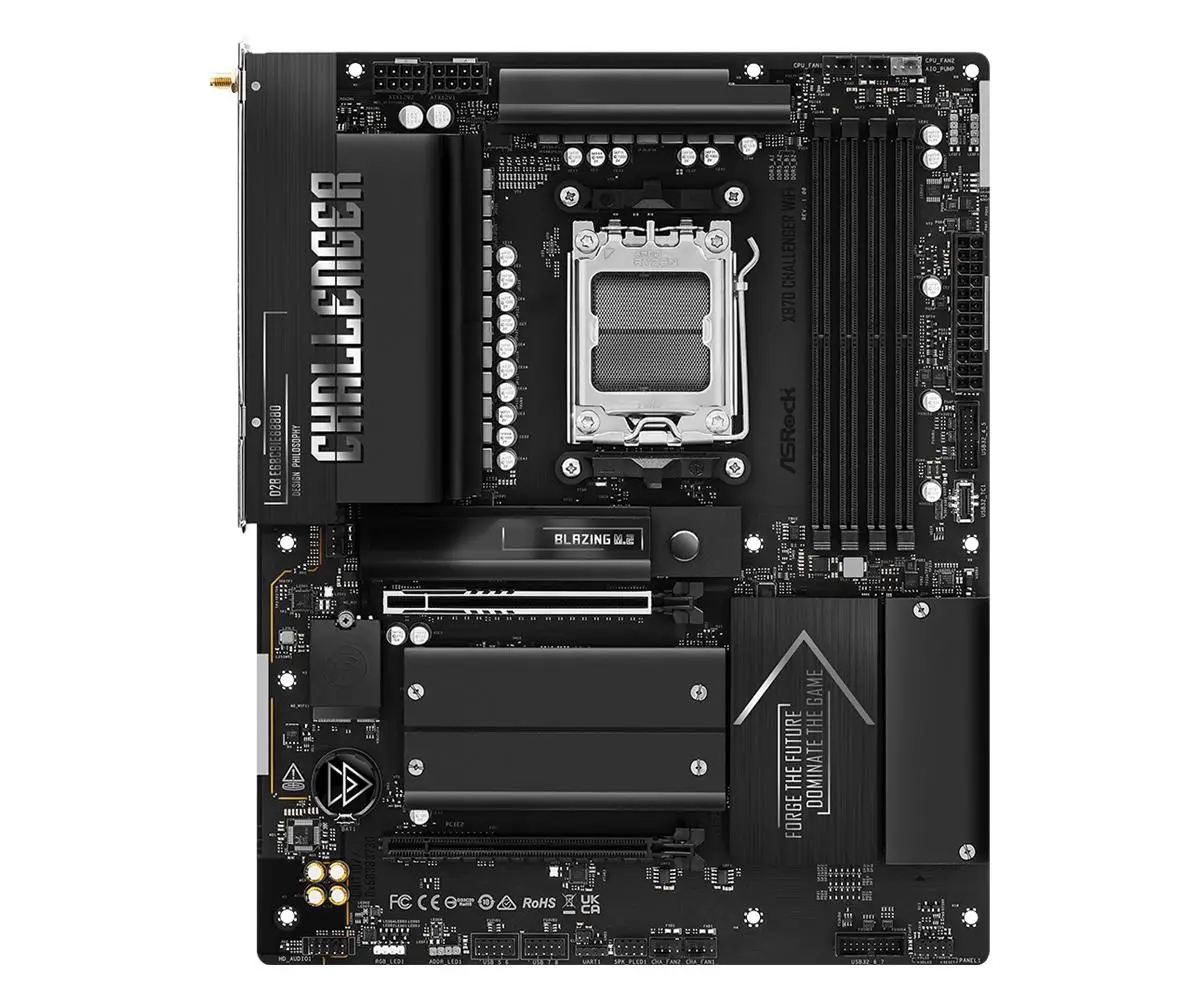

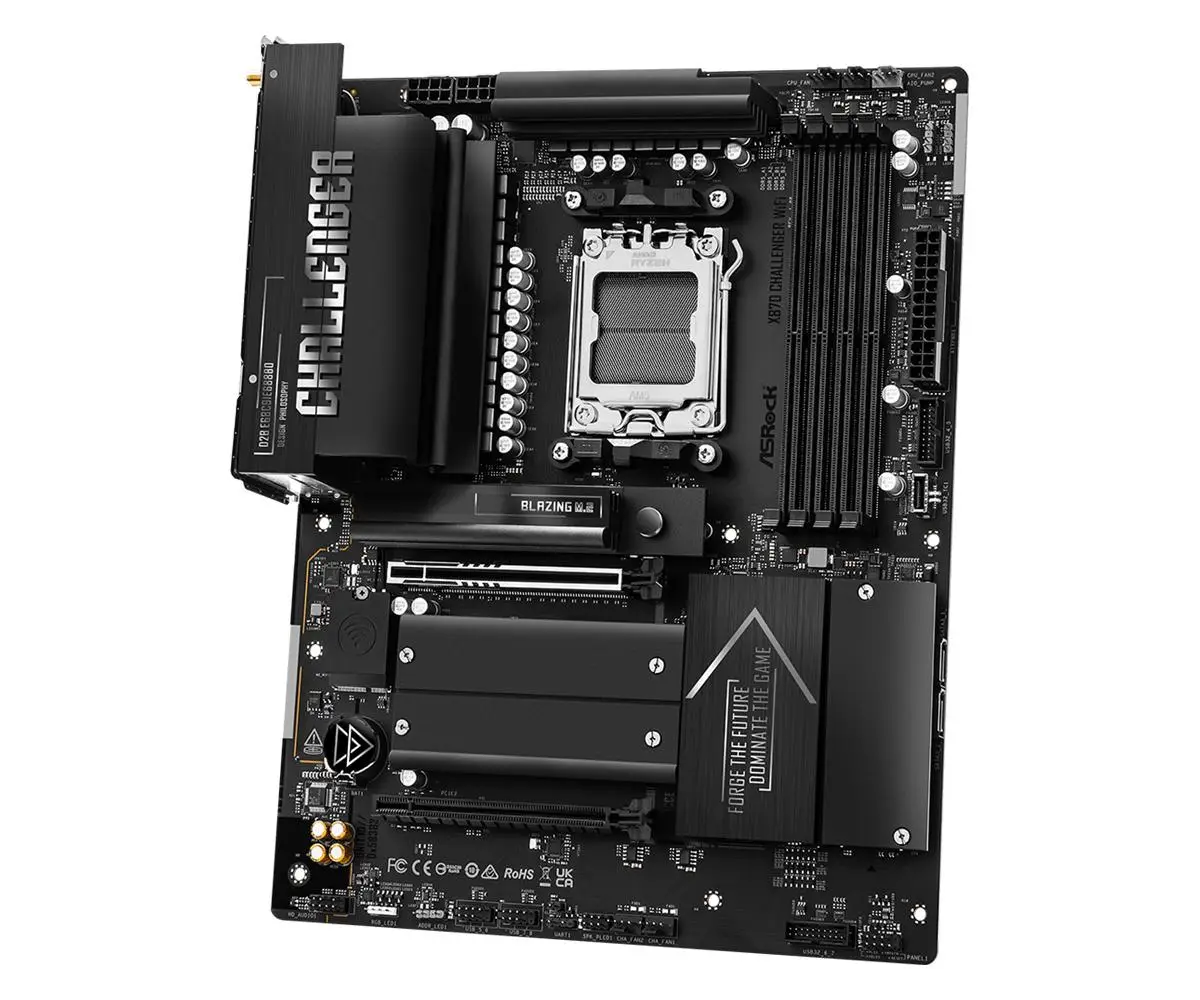

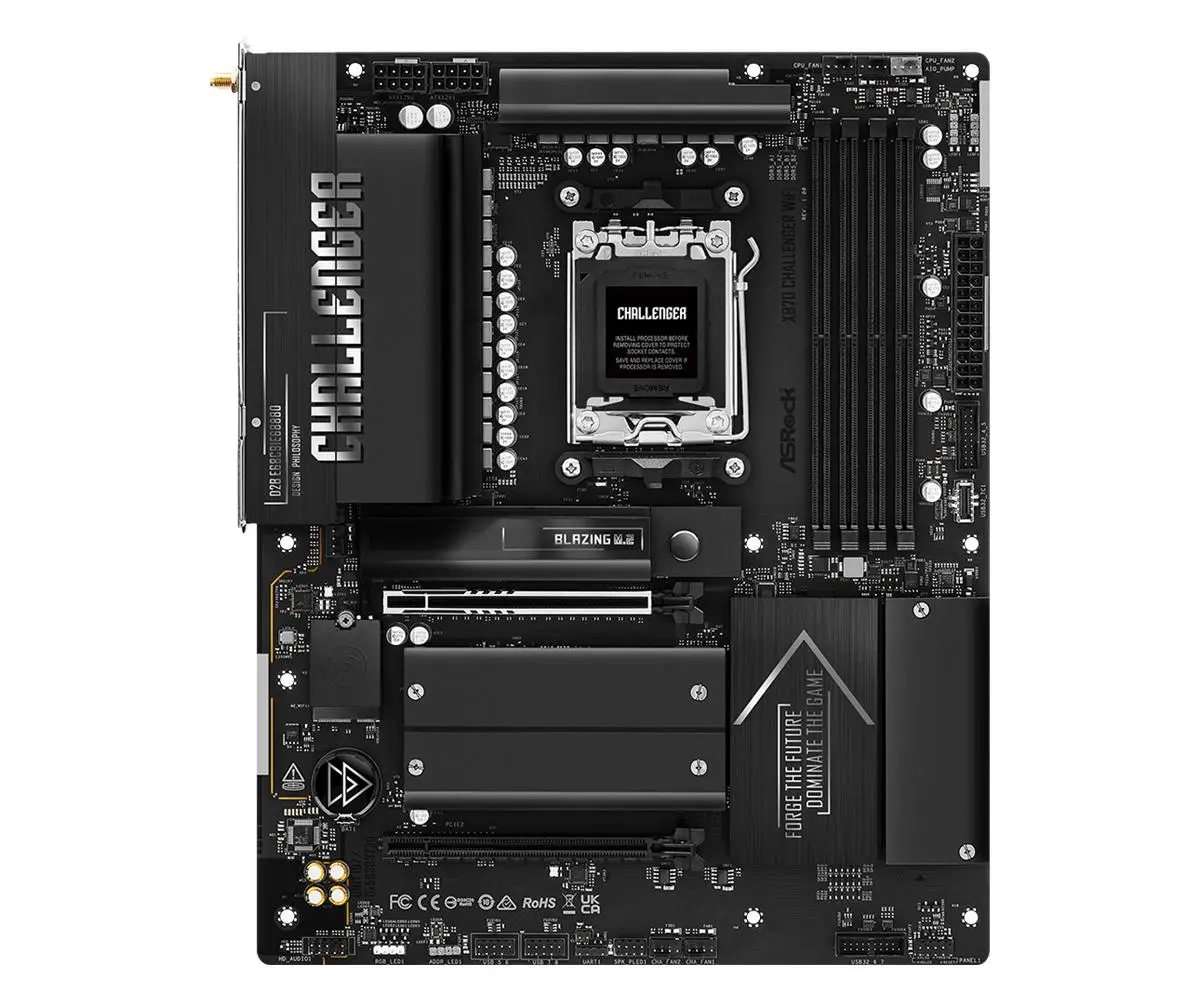

ASRock X870 Challenger WIFI (Socket AM5, AMD X870, DDR5, Type C)
Rp4.455.000
Availability: 99999 in stock
Availability: 99999 in stock
Pengiriman
- Dikirim dari Jakarta
- Ongkir mulai dari Rp. 10.000
Lihat Panduan Melakukan Pembelian
Pelajari lebih lanjut mengenai langkah melakukan pembelian produk.
Hubungi Layanan Pelanggan
Anda dapat menghubungi layanan pelanggan untuk informasi lebih lanjut.
Deskripsi Produk
Silakan konfirmasi stock sebelum melakukan pembelian 🙂
Specification :
CPU : Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset : AMD X870
Memory :
Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS : 512Mb AMI UEFI Legal BIOS with GUI support
Graphics :
Integrated AMD RDNA graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Audio :
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN :
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN :
– 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/be
– Supports 2.4GHz/5GHz/6GHz frequency band
– Supports 160MHz channel bandwidth with 6GHz frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO
Slots :
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage :
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors
USB :
CPU:
– 2 x USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
– 1 x USB 3.2 Gen1 Type-A (Rear)
Chipset:
– 1 x USB 3.2 Gen2 Type-A (Rear (USB32_2))
– 1 x USB 3.2 Gen1 Type-C (Front)
– 4 x USB 3.2 Gen1 Type-A (Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
Connector :
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

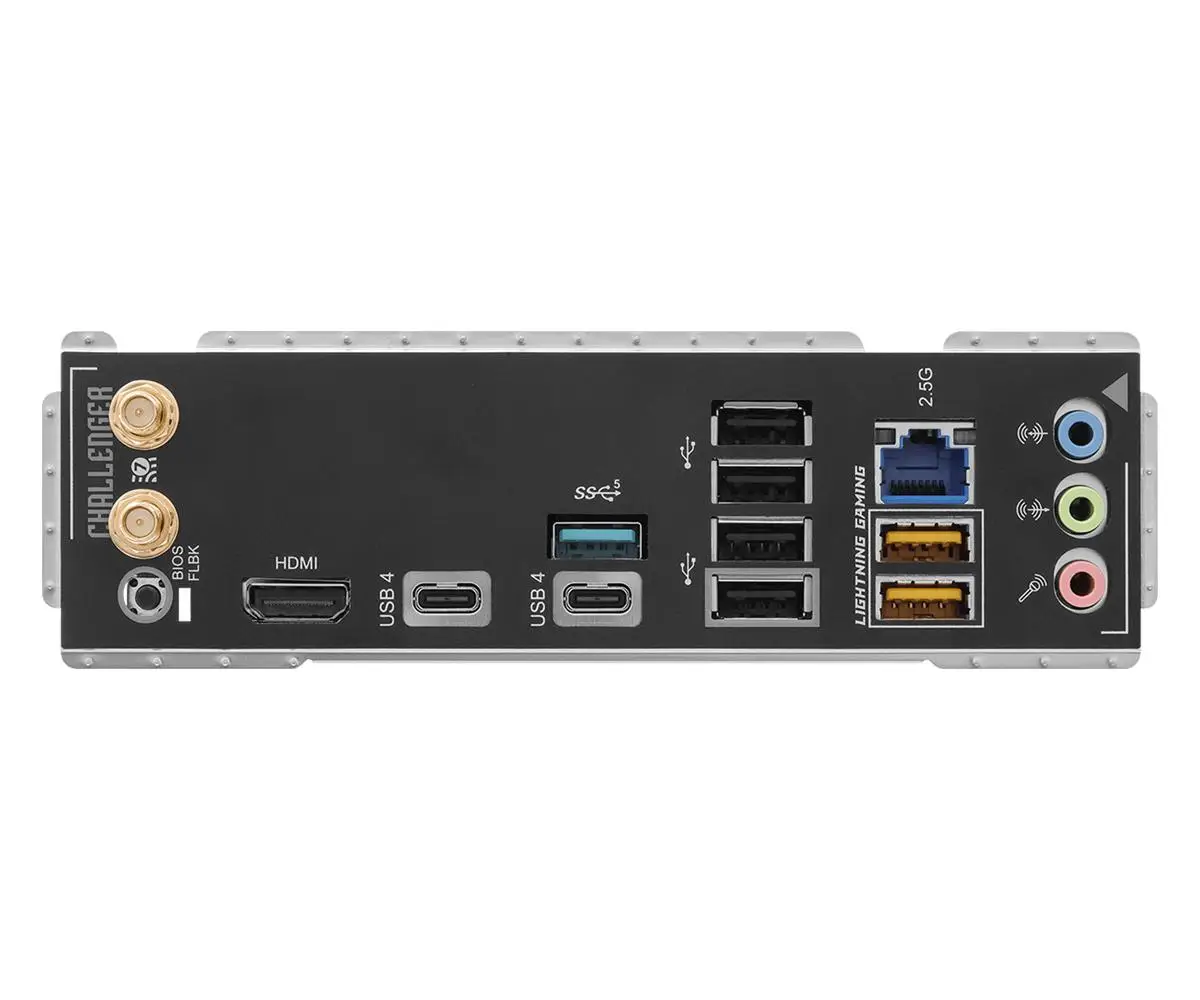

Rear Panel I/O :
– 2 x Antenna Ports
– 1 x HDMI Port
– 2 x USB4 Type-C Ports (40 Gb/s)
– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.)
– 1 x USB 3.2 Gen1 Type-A Port
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor :
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
