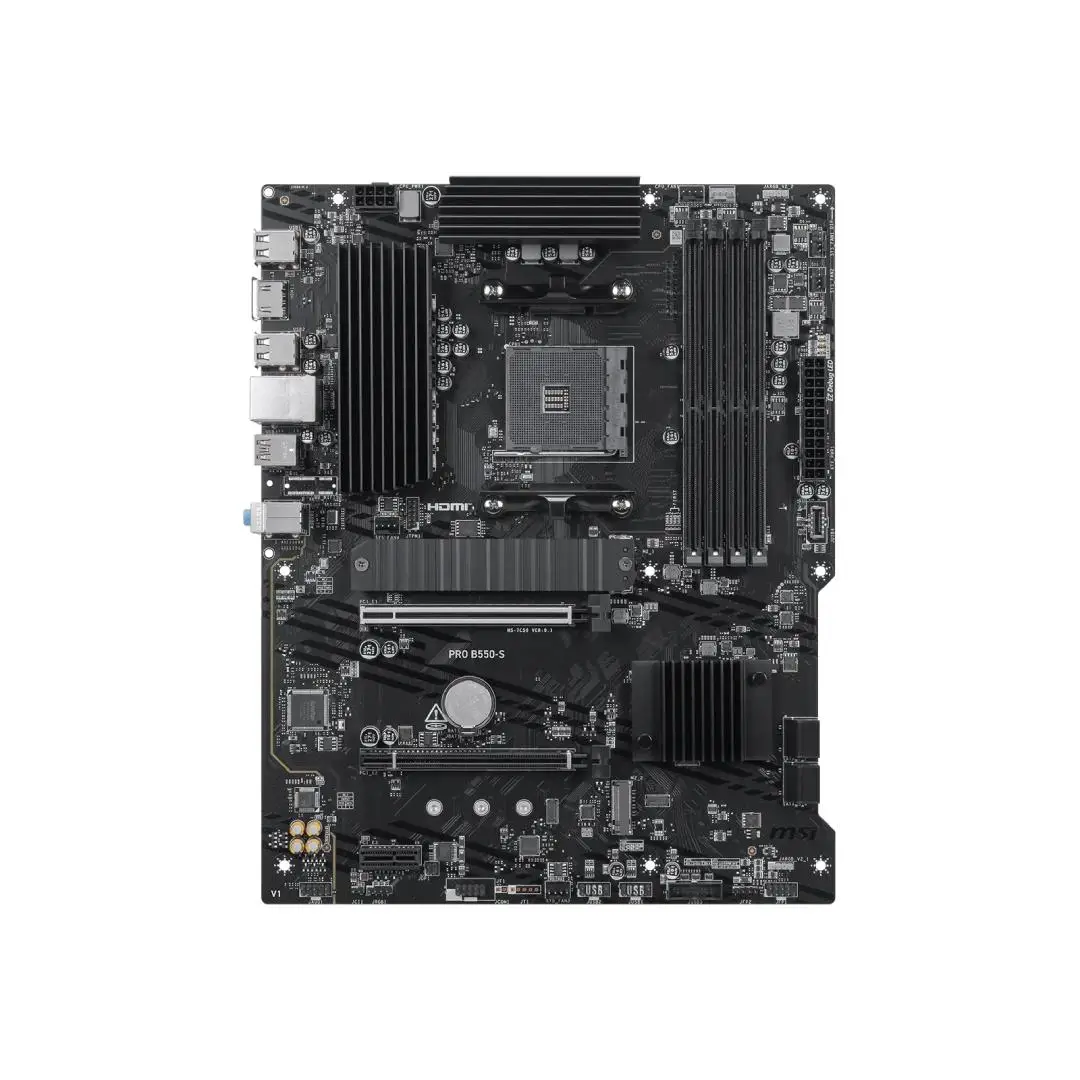

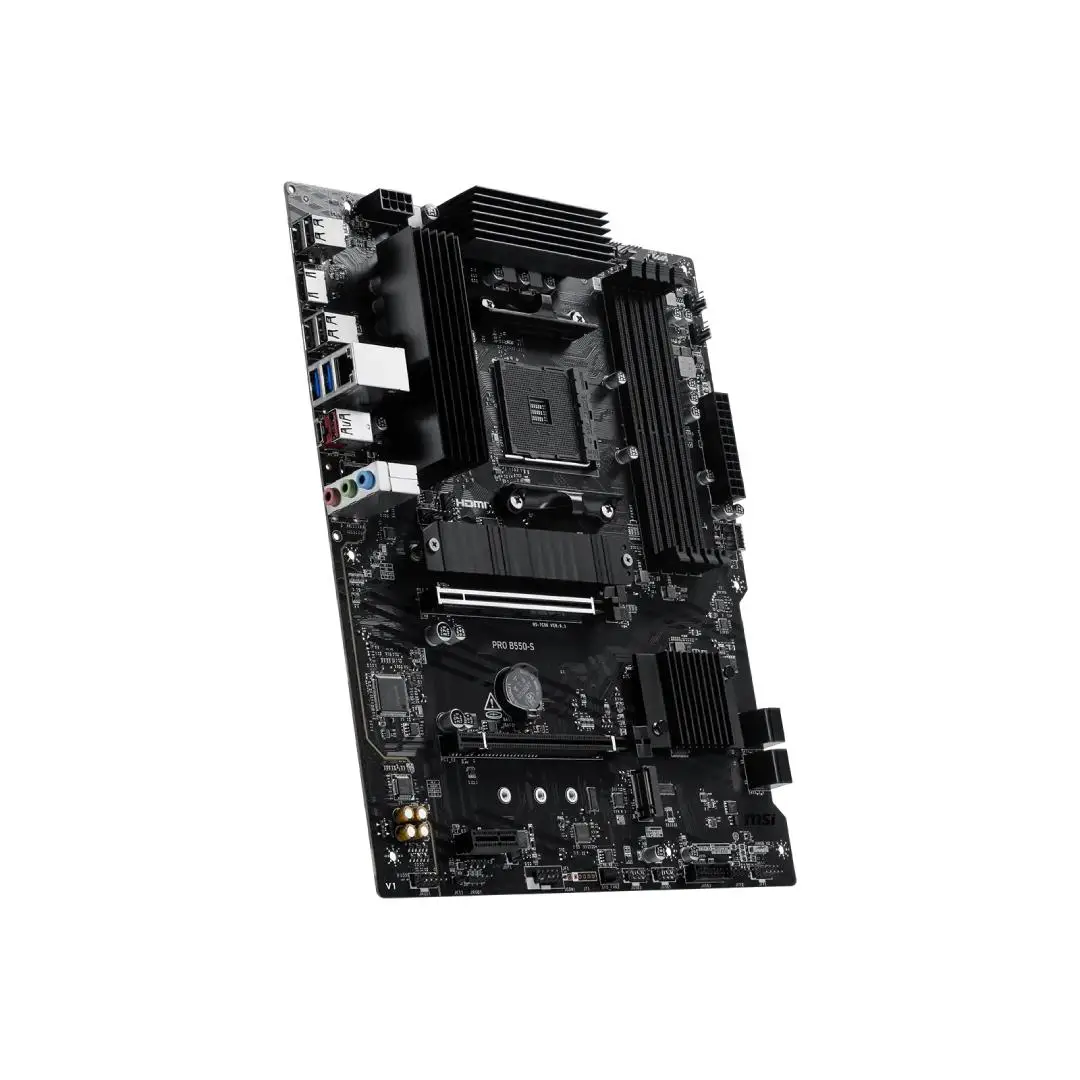

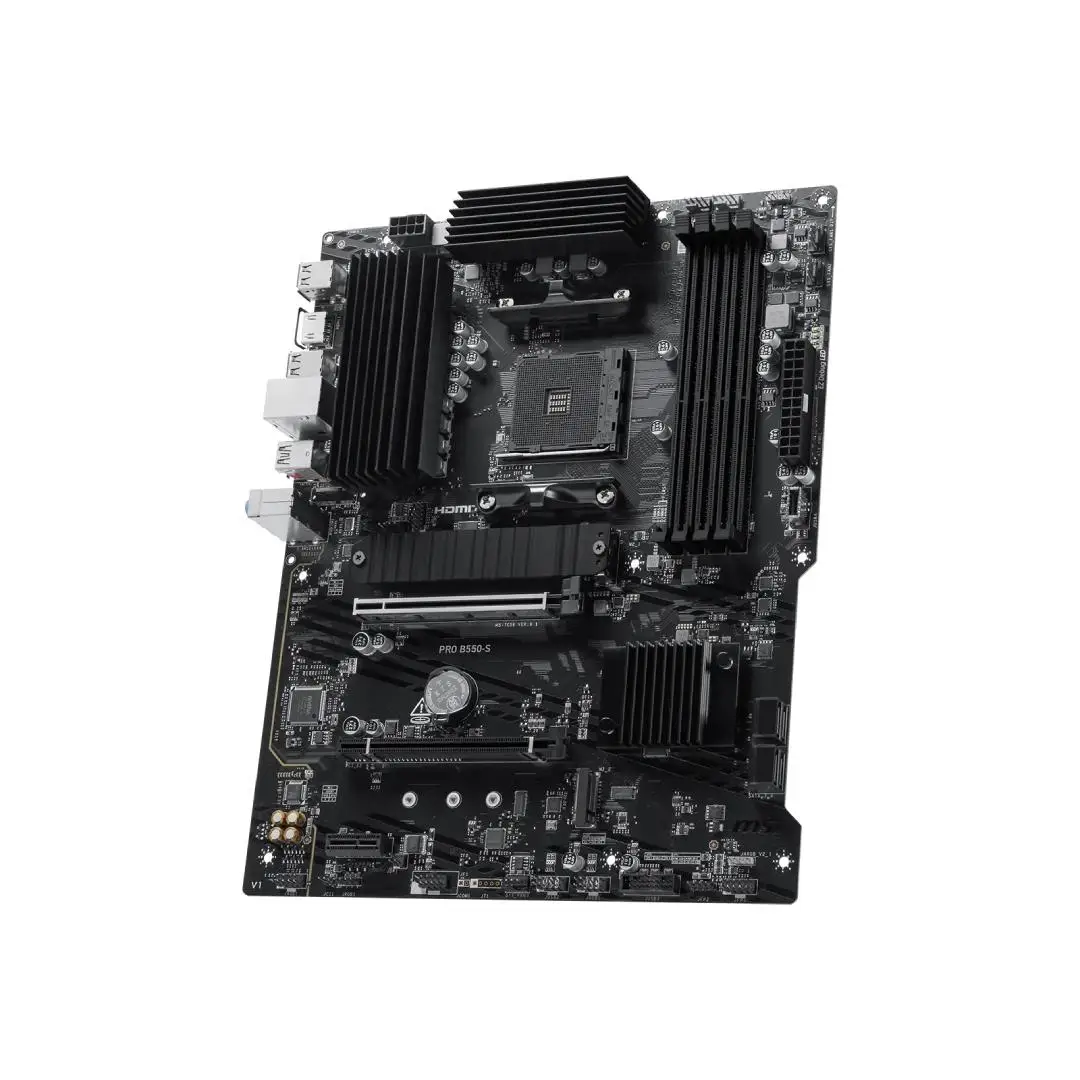

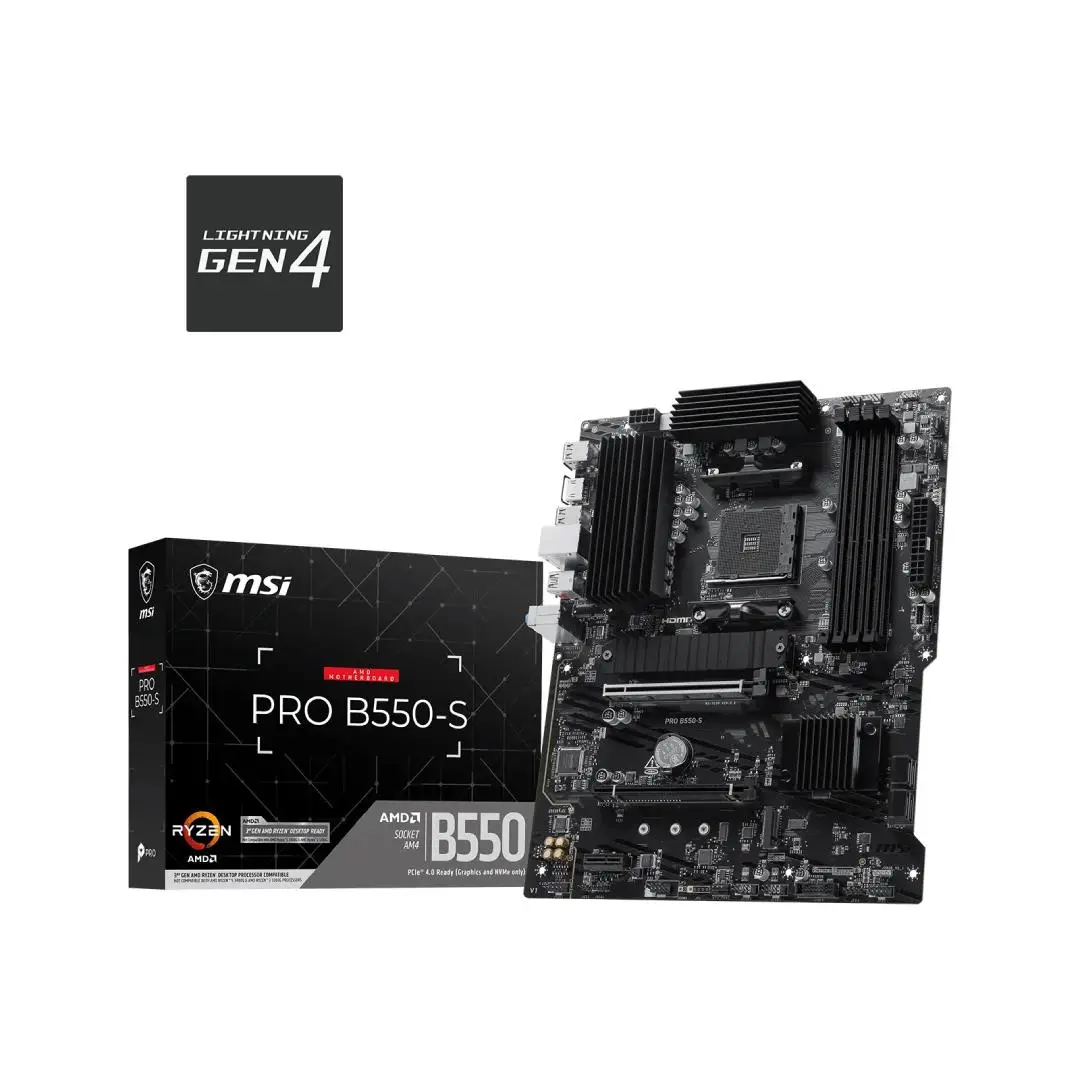

MSI PRO B550-S (Socket AM4, B550, DDR4)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Chipset
AMD B550

CPU
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors
Socket AM4

Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
Max. overclocking:
• 1DPC 1R Max speed up to 4800+ MT/s
• 1DPC 2R Max speed up to 3866+ MT/s
• 2DPC 1R Max speed up to 4000+ MT/s
• 2DPC 2R Max speed up to 3600+ MT/s

Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have single-sided latches.

Onboard Graphics
1x HDMI
Support HDMITM 1.4, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.
*When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.

Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio

Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
*The supported specification depends on installed processor.

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
