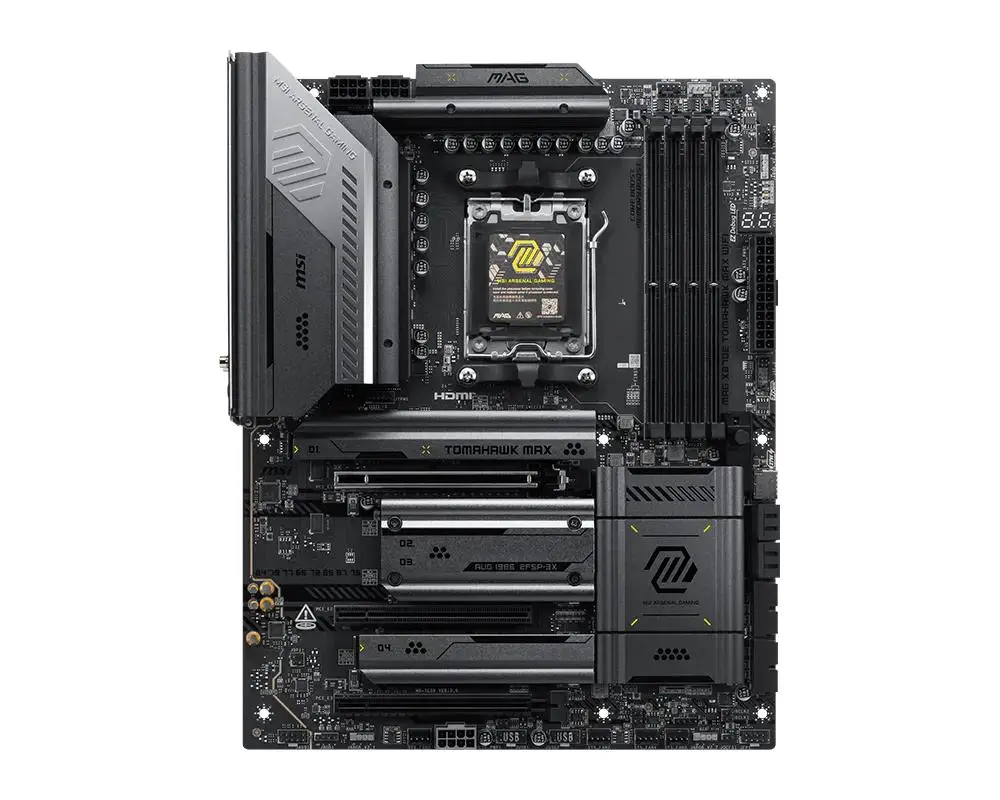

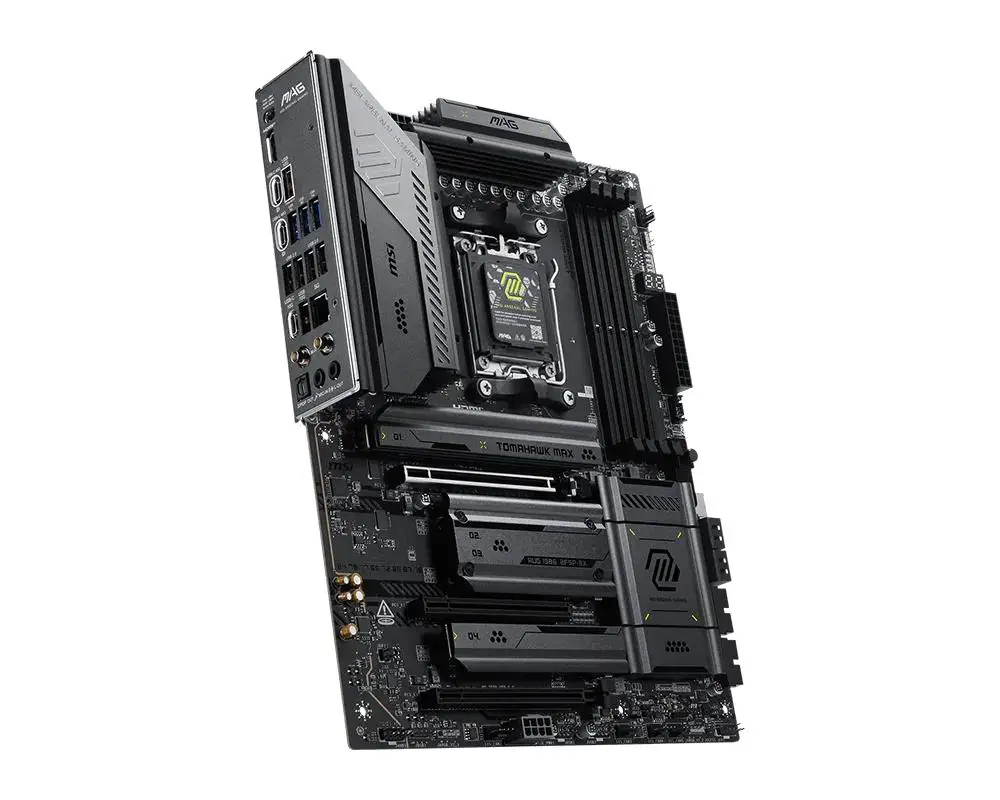

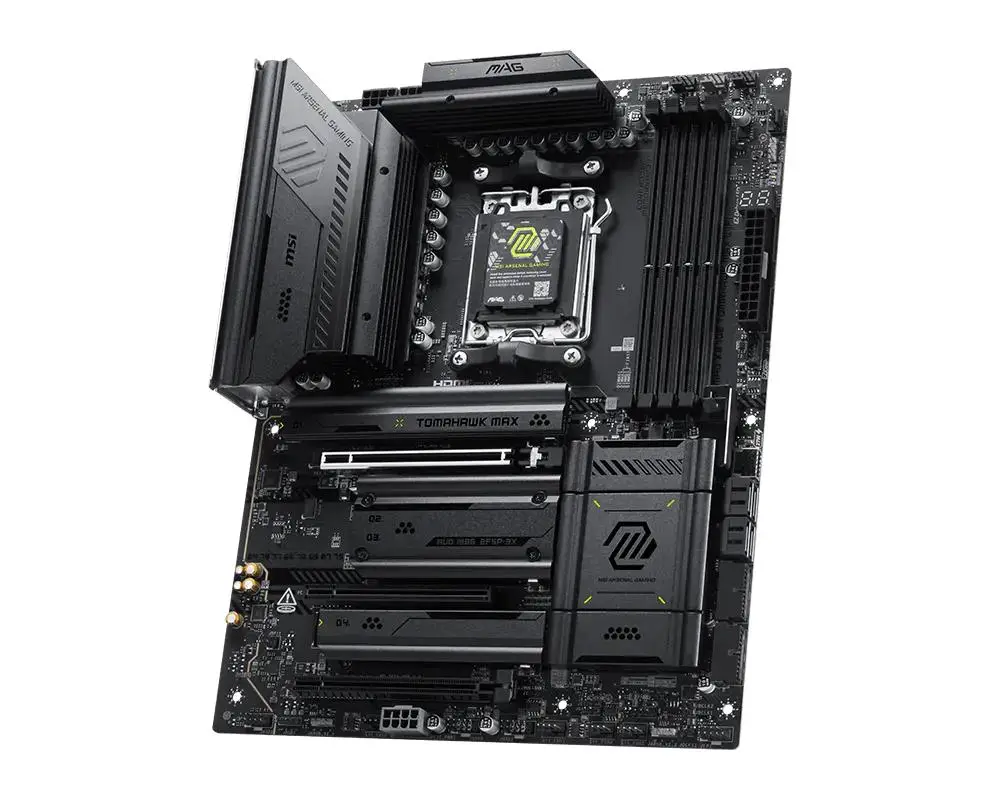

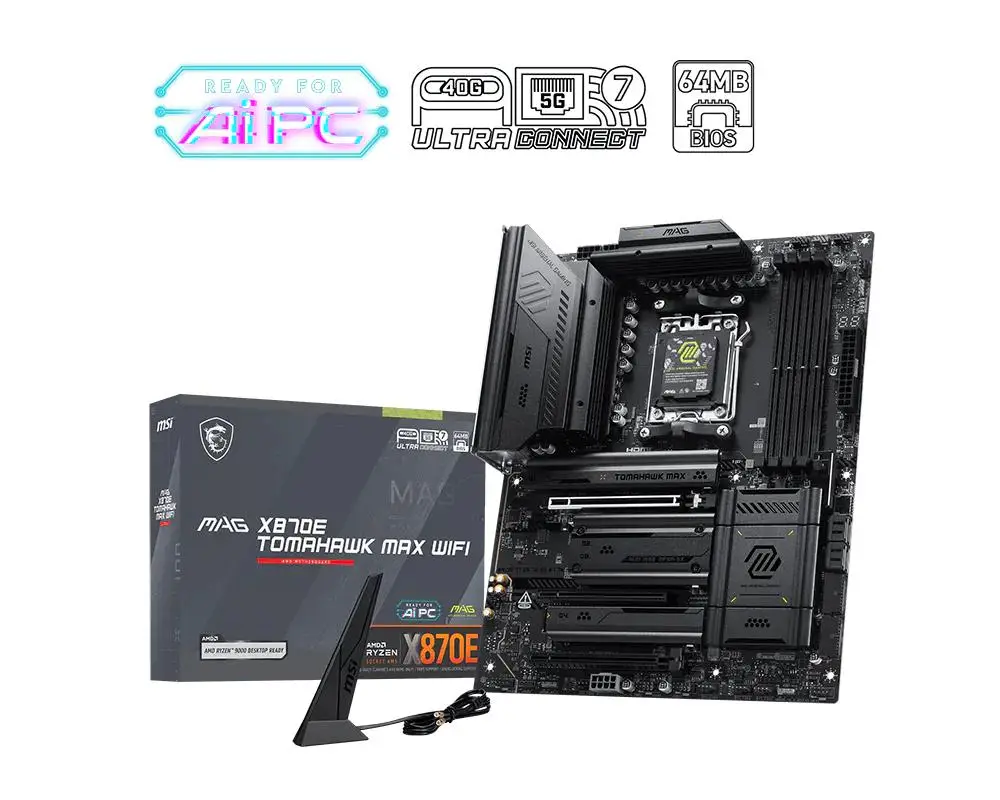

MSI MAG X870E TOMAHAWK MAX WIFI (Socket AMD AM5, DDR5, Type C)

Silakan konfirmasi stock sebelum melakukan pembelian 🙂

Specification :

Chipset
– AMD X870E

CPU
– Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
– Socket AM5

Memory
– 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
– Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s

Onboard Graphics
– 1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
– 2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Slot
– 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
– PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio
– Realtek ALC4080 Codec
– 7.1-Channel USB High Performance Audio
– Supports up to 32-bit/384kHz playback on front panel
– Supports S/PDIF output

Storage
– 4x M.2
– 4x SATA 6G

RAID
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

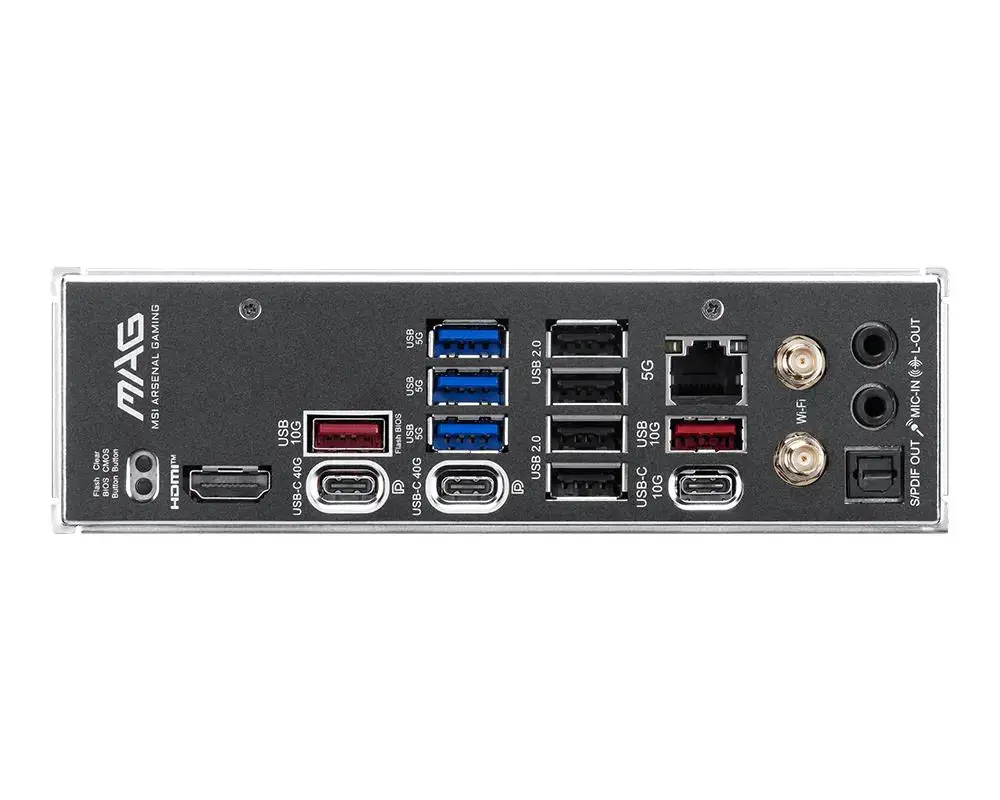

USB
– 4x USB 2.0 (Rear)
– 4x USB 2.0 (Front)
– 3x USB 5Gbps Type A (Rear)
– 4x USB 5Gbps Type A (Front)
– 2x USB 10Gbps Type A (Rear)
– 1x USB 10Gbps Type C (Rear)
– 1x USB 20Gbps Type C (Front)
– 2x USB 40Gbps Type C (Rear)

LAN
– 1x Realtek 8126 5G LAN

Internal IO
– 1x Power Connector(ATX_PWR)
– 2x Power Connector(CPU_PWR)
– 1x Power Connector(PCIE_PWR 8pin)
– 1x CPU Fan
– 1x Combo Fan (Pump_Sys Fan)
– 6x System Fan
– 1x EZ Conn-header (JAF_2)
– 2x Front Panel (JFP)
– 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD)
– 3x Addressable V2 RGB LED connector (JARGB_V2)
– 1x RGB LED connector(JRGB)
– 1x TPM pin header(Support TPM 2.0)
– 2x Direct OC Jumper (JBCLK)
– 4x USB 2.0 ports
– 4x USB 5Gbps Type A ports
– 1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH
– Wi-Fi 7
– Supports Bluetooth 5.4**, MLO, 4KQAM

LED FEATURE
– 4x EZ Debug LED
– 1x EZ Digit Debug LED
– 1x EZ Memory Detection LED

OPERATING SYSTEM
– Support for Windows 11 64-bit

PCB Info
– ATX
– 243.84mmx304.8mm
